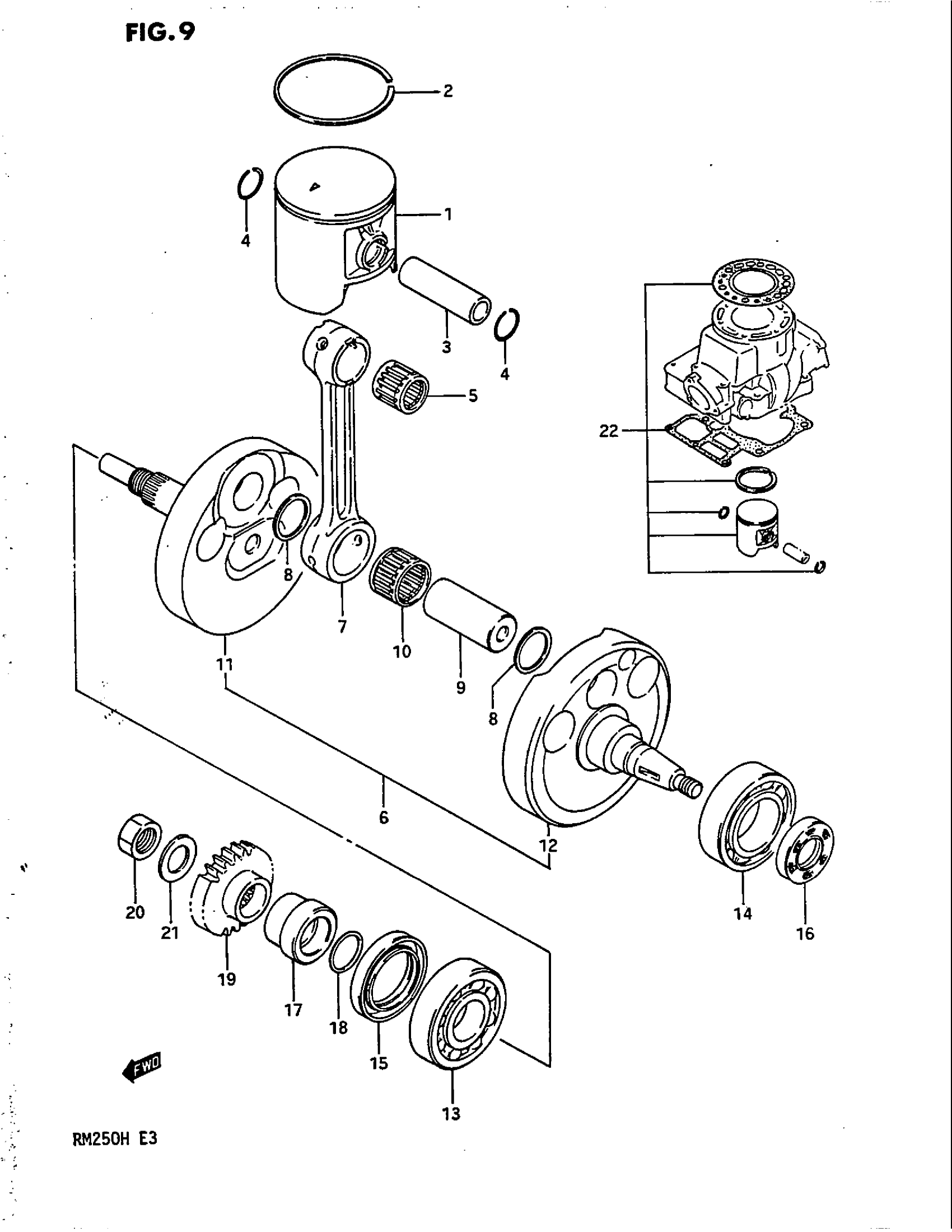

Suzuki RM250 (1987) CRANKSHAFT (MODEL G) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 12110-00B01.

12110-00B02

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-00B01-025.

12103-00810-025

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-00B01-050.

12103-00810-050

Unavailable

2

RING, PISTON This part replaces 12141-41600.

12141-41620

$25.78

2

RING, PISTON (OS:0.25) | OPT

12141-41600-025

Unavailable

2

RING, PISTON (OS:0.5) | OPT

12141-41600-050

$35.08

3

PIN, PISTON

12151-45501

$17.37

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-00B02

Unavailable

7

ROD, CONNECTING This part replaces 12161-00B00.

12161-05D00

Unavailable

8

WASHER

09160-24015

Unavailable

9

PIN, CRANK

12211-14301

Unavailable

10

BEARING This part replaces 09263-24019.

09263-24026

$69.90

11

CRANKSHAFT, RH

12221-00B02

Unavailable

12

CRANKSHAFT ASSY This part replaces 12261-00B02.

12200-00B02

Unavailable

13

BEARING, RH

09262-25066

Unavailable

14

BEARING, LH

09262-30066

Unavailable

15

OIL SEAL, RH

09289-36003

Unavailable

16

OIL SEAL, LH (20X37X6) This part replaces 09283-20046.

09283-20051

Unavailable

17

SPACER, PRI DRIVE GEAR

12359-00B00

Unavailable

18

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

19

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14310.

21111-14321

Unavailable

20

NUT

09140-16019

$3.70

21

WASHER

09164-16002

$3.16

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-00810.

12101-00812

Unavailable

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-00810-025.

12101-00812-025

Unavailable
