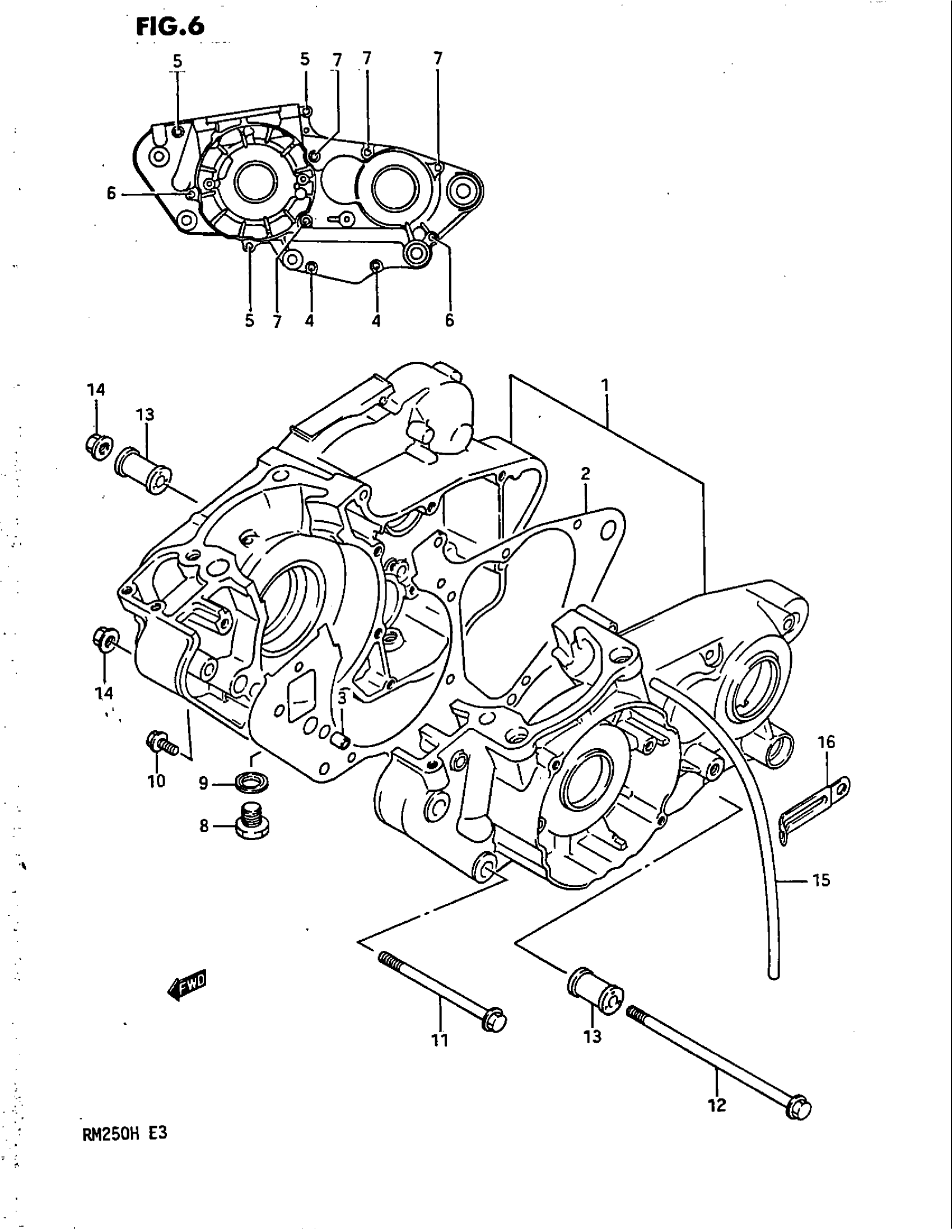

Suzuki RM250 (1987) CRANKCASE (MODEL H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 11300-00830.

11300-00832

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11481-00B20.

11481-00B20-H17

Unavailable

3

PIN

04211-09129

$1.65

4

SCREW (6X35)

02112-06357

$1.78

5

SCREW (6x45)

02112-06457

$1.78

6

SCREW This part replaces 02112-06558.

02112-06557

$2.53

7

SCREW This part replaces 02112-06608.

02112-06607

$2.57

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

9

GASKET

09168-14004

$1.83

10

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$1.98

11

BOLT (8X100)

09103-08114

$8.58

12

BOLT (8X165)

09103-08032

Unavailable

13

SPACER (L:32)

11610-04700

Unavailable

14

NUT

09159-08067

$5.57

15

HOSE 4X7X600 | L:600->250 This part replaces 09343-04104.

09352-40706-600

$5.11

16

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
