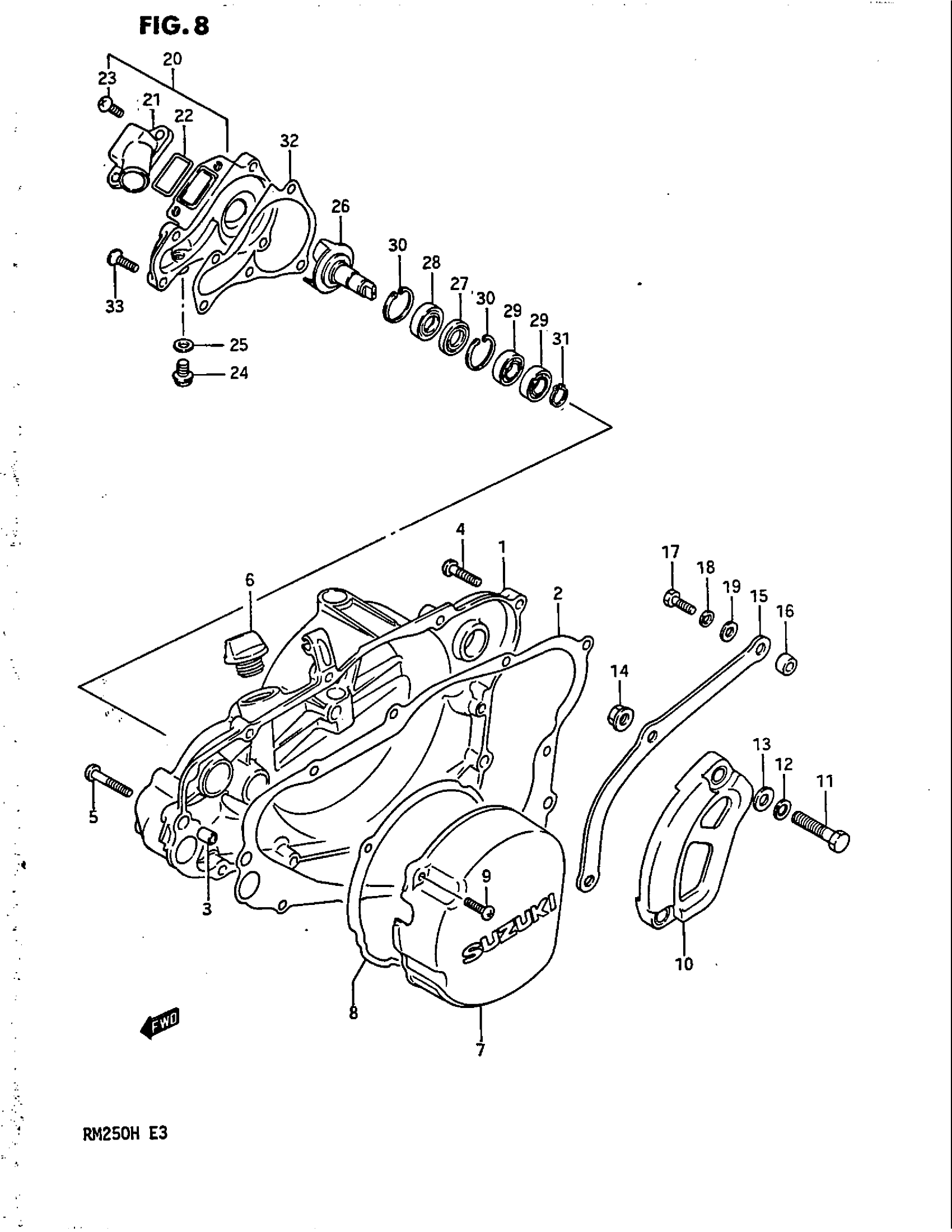

Suzuki RM250 (1987) CRANKCASE COVER - WATER PUMP (MODEL H) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-00B20

Unavailable

2

GASKET,CL COVER This part replaces 11482-00B20.

11482-00B20-H17

Unavailable

3

PIN

04211-09129

$1.65

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW (6X35)

02112-06357

$1.78

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

COVER, MAGNETO

11351-00B20

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 11483-00B20.

11483-00B20-H17

Unavailable

9

SCREW This part replaces 02112-05168.

02112-05167

$1.97

10

COVER,SPROCKET This part replaces 11360-00B00.

11360-00BV0

Unavailable

11

BOLT This part replaces 01107-08307.

01500-08307

$3.04

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

15

PLATE, CHAIN GUIDE | FOR NT:14

27641-00B01

Unavailable

15

PLATE, CHAIN GUIDE | OPT FOR NT:13

27641-00B10

Unavailable

15

PLATE, CHAIN GUIDE | OPT FOR NT:15

27641-00B20

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 09180-06141.

09180-06141-XC0

Unavailable

17

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

20

CASE, WATER PUMP | Includes Item(s) 21 - 25

17410-00B20

Unavailable

21

CONNECTOR, INLET

17421-00B20

Unavailable

22

O RING

17414-14300

$2.99

23

SCREW This part replaces 02112-06208.

02112-06207

$1.78

24

BOLT, DRAIN

17415-14300

$2.99

25

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

26

IMPELLER

17491-00B20

Unavailable

27

OIL SEAL, INNER (12X24X3.6)

09282-12006

Unavailable

28

OIL SEAL, OUTER (12X24X6.4)

09289-12004

Unavailable

29

BEARING (10X22X6)

09262-10004

$32.70

30

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.26

31

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

32

GASKET,WATER PU This part replaces 17431-00B20.

17431-00B30-H17

Unavailable

33

SCREW This part replaces 02122-06208.

02122-0620A

$1.49
