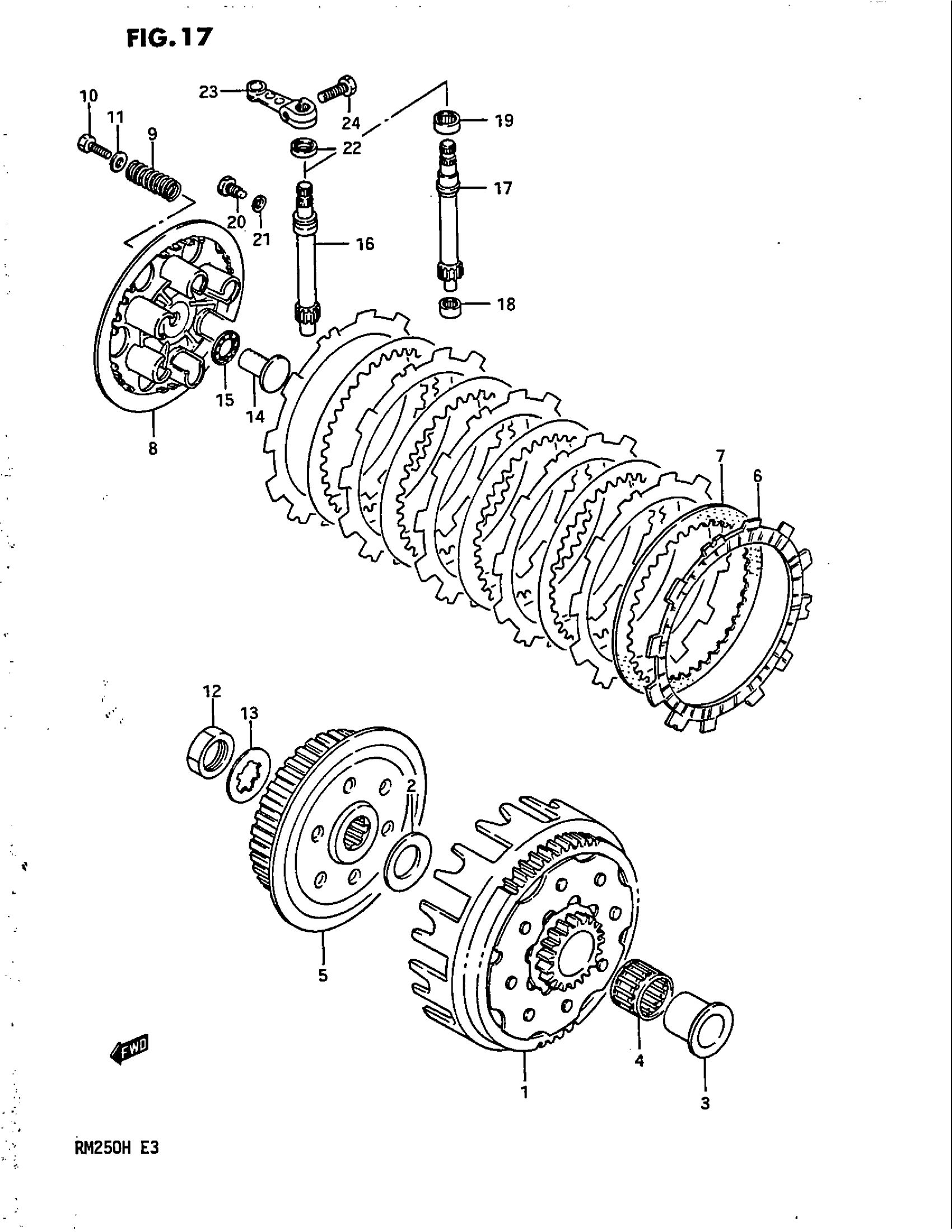

Suzuki RM250 (1987) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DIRVEN | NT:59/18

21200-00B02

Unavailable

2

WASHER

09160-20063

$7.35

3

SPACER This part replaces 21251-00B00.

21251-43D00

$35.74

4

BEARING (25X30X22)

09263-25046

$25.92

5

HUB, SLEEVE

21410-00B02

Unavailable

6

PLATE, DRIVE NO.1 This part replaces 21441-07A00.

21441-12D01

$20.64

7

PLATE, DRIVEN (IRON)

21451-31000

$10.40

7

PLATE, CLUTCH DRIVEN | OPT This part replaces 21451-40001.

21451-31000

$10.40

8

DISC, PRESSURE | MODEL G This part replaces 21462-00B01.

21462-00B02

$57.67

8

DISC, PRESSURE | MODEL H

21462-00B02

$57.67

9

SPRING | MODEL G

09440-15014

$3.37

9

SPRING | MODEL H

09440-15028

Unavailable

10

BOLT (5X16)

09100-05002

$1.49

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

NUT This part replaces 09140-20002.

09140-20001

$3.37

13

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

14

RACK,CLUTCH RELEASE This part replaces 23165-00B00.

23165-44B01

$24.92

15

THRUST BEARING

09263-10002

$10.19

16

PINION | MODEL G

23261-00B00

Unavailable

17

PINION | MODEL H

23261-00B20

Unavailable

18

BEARING, NO.1 | MODEL H

09263-09001

$14.53

19

BEARING, NO.2 | MODEL H

09263-12024

$12.67

20

BOLT (6X10) | MODEL G This part replaces 09135-06002.

09135-06501

$3.04

21

WASHER (6.2X11X1.2) | MODEL G

09168-06004

$1.49

22

OIL SEAL (10X17X5)

09285-10004

$3.37

23

ARM, CLUTCH RELEASE This part replaces 23271-20900.

23271-20902

$29.60

24

BOLT This part replaces 01107-06166.

01500-0616A

$1.78
