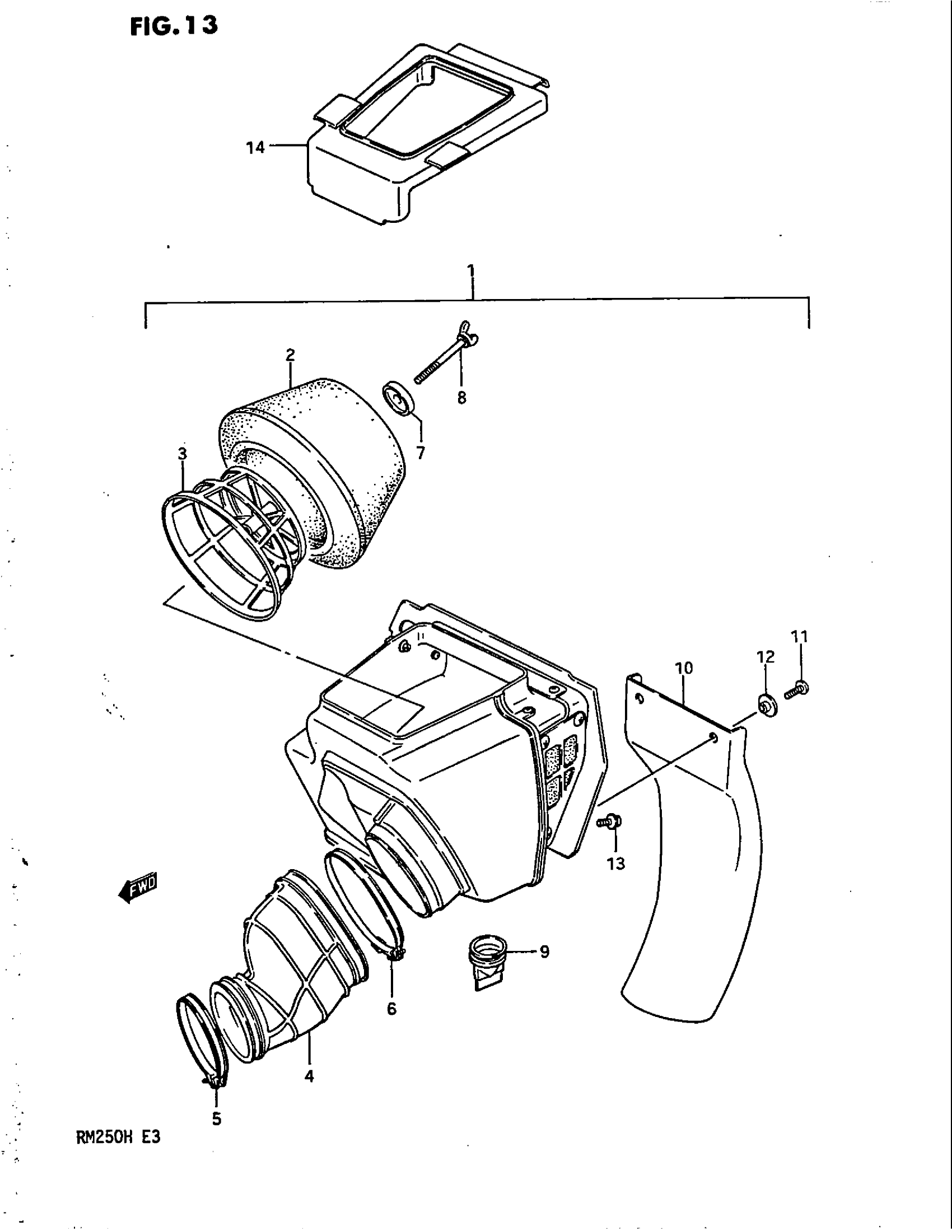

Suzuki RM250 (1987) AIR CLEANER (MODEL G) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-00B00

Unavailable

2

FILTER

13780-01B00

Unavailable

3

HOLDER, FILTER

13791-01B00

Unavailable

4

TUBE, OUTLET

13881-00B00

Unavailable

5

CLAMP This part replaces 09402-68207.

09402-66208

$5.57

6

CLAMP

13826-01B00

Unavailable

7

WASHER

13792-13A01

$4.34

8

BOLT, WING

13831-02B00

$5.80

9

TUBE, DRAIN

13873-18900

Unavailable

10

MUD GUARD

13738-01B00

Unavailable

11

SCREW

02142-06167

$1.49

12

WASHER

13838-02B00

$3.56

13

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

14

GUARD, MUD This part replaces 13739-01B00.

13739-00B22

Unavailable
