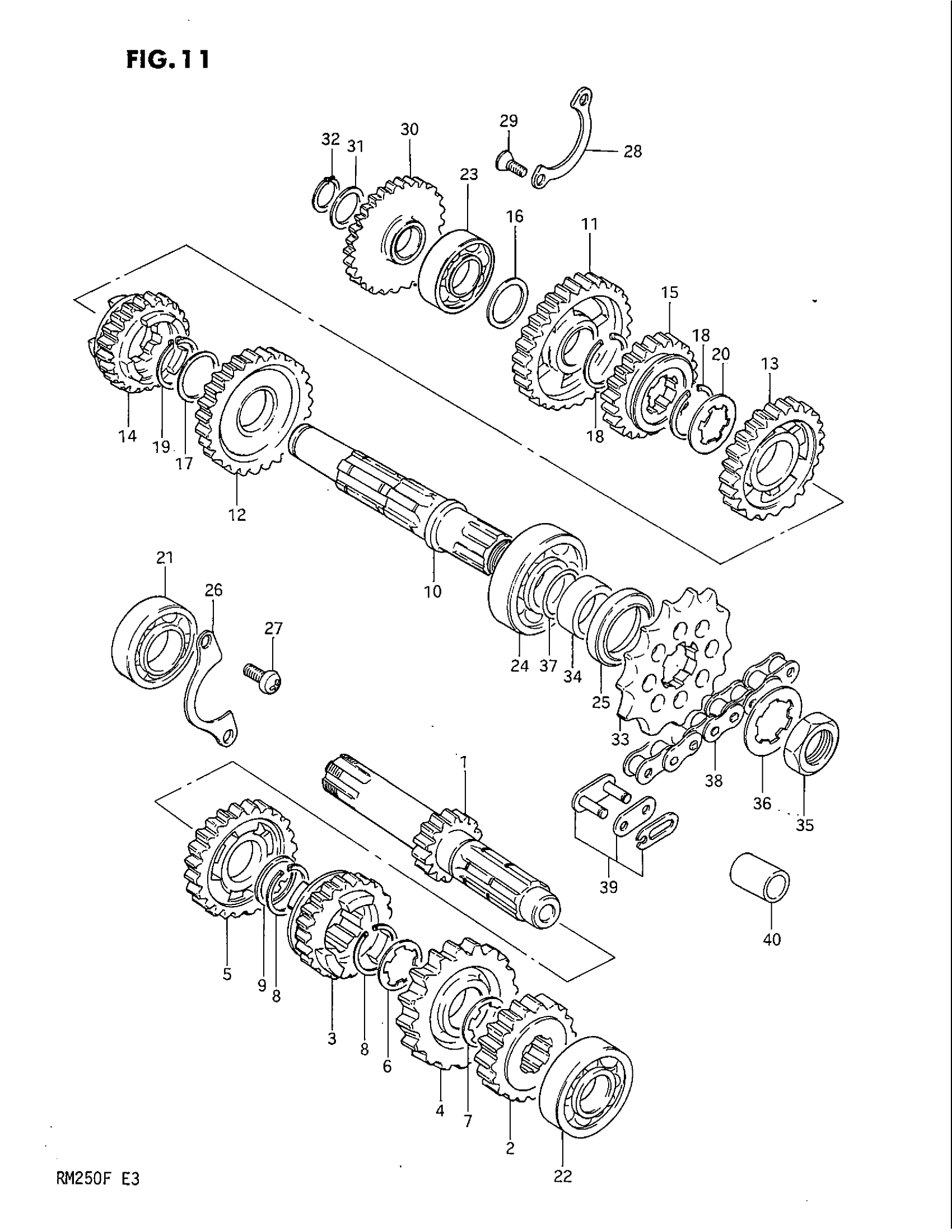

Suzuki RM250 (1985) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13)

24121-14310

Unavailable

2

GEAR, 2ND DRIVE (NT:18)

24221-14310

Unavailable

3

GEAR, 3RD DRIVE (NT:21)

24231-14310

Unavailable

4

GEAR, 4TH DRIVE (NT:23)

24241-14311

Unavailable

5

GEAR, 5TH DRIVE (NT:25)

24251-14311

Unavailable

6

WASHER

09167-22011

$3.23

7

WASHER

09167-22014

$3.78

8

CIRCLIP

09380-22006

$3.10

9

THRUST WASHER

09181-22002

Unavailable

10

DRIVESHAFT

24131-14310

Unavailable

11

GEAR, 1ST DRIVEN (NT:27)

24311-14311

Unavailable

12

GEAR, 2ND DRIVEN (NT:31)

24320-14600

Unavailable

13

GEAR, 3RD DRIVEN (NT:29)

24331-14310

Unavailable

14

GEAR, 4TH DRIVEN (NT:27)

24341-14600

Unavailable

15

GEAR, 5TH DRIVEN (NT:25)

24351-14311

Unavailable

16

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

$3.07

17

THRUST WASHER

08221-25325

$2.47

18

CIRCLIP

09380-22006

$3.10

19

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.49

20

WASHER

09167-22014

$3.78

21

BEARING, RH

09262-20073

$23.28

22

BEARING, LH

09262-17023

$16.75

23

BEARING, RH

09262-17023

$16.75

24

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

25

OIL SEAL

09283-32003

$7.31

26

HOLDER, BEARING

24741-40300

Unavailable

27

SCREW This part replaces 02112-06128.

02112-06127

$1.84

28

HOLDER, BEARING

24751-40300

Unavailable

29

SCREW This part replaces 02122-06128.

02122-06127

$1.84

30

GEAR, KICK IDLE (NT:26) This part replaces 26260-41101.

26260-13A10

Unavailable

31

WASHER

08211-17241

$2.54

32

CIRCLIP

09380-17001

$1.98

33

SPROCKET, ENGINE (NT:14) This part replaces 27511-14300.

27511-47D00

$30.15

33

SPROCKET, ENGINE (NT:13) | OPT This part replaces 27511-14310.

27511-37F00

$25.05

33

SPROCKET, ENGINE (NT:15) | OPT

27511-14320

Unavailable

34

SPACER

09180-22026

Unavailable

35

NUT

09140-18009

Unavailable

36

WASHER

09167-22012

$1.54

37

O RING

09280-22003

$1.72

38

CHAIN,DRIVE ASS | Includes Item(s) 39 This part replaces 27600-14310.

27600-46K00-116

$167.95

39

JOINT (DID)

27620-14270

Unavailable

39

JOINT (RK) This part replaces 27620-14261.

27620-14262

Unavailable

40

CUSHION, CHAIN

09180-12083

$2.45
