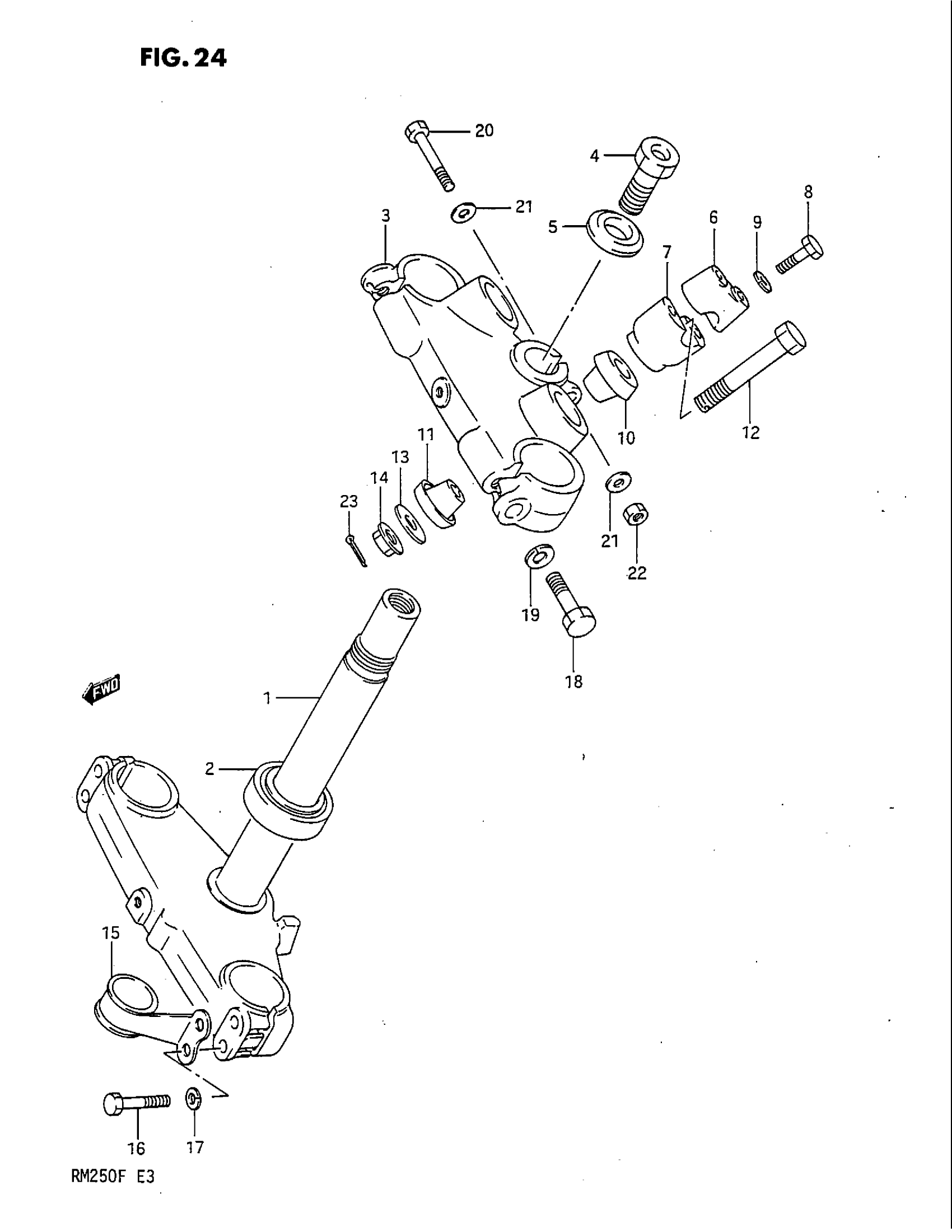

Suzuki RM250 (1985) STEERING STEM (MODEL F) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-14620

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

STEM HEAD, STEERING

51311-14620

Unavailable

4

BOLT

51351-41320

Unavailable

5

WASHER

51356-41310

Unavailable

6

HOLDER, HANDLE UPPER

56211-27100

$15.23

7

HOLDER, HANDLE LOWER

56221-23450

Unavailable

8

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

9

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

10

RUBBER, UPPER

56241-14200

$44.53

11

RUBBER, LOWER

56242-14200

$36.08

12

BOLT This part replaces 56321-14200.

56321-28C00

$8.28

13

WASHER This part replaces 51356-40400.

09160-10035

$1.78

14

NUT This part replaces 08319-31108.

08319-31107

$2.73

15

CLIP

58621-14520

Unavailable

16

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

17

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

18

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

19

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

20

BOLT This part replaces 01107-08508.

01500-08507

$3.05

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

NUT This part replaces 08310-12088.

08310-00087

$2.13

23

PIN This part replaces 04111-20308.

04111-2030A

$1.50
