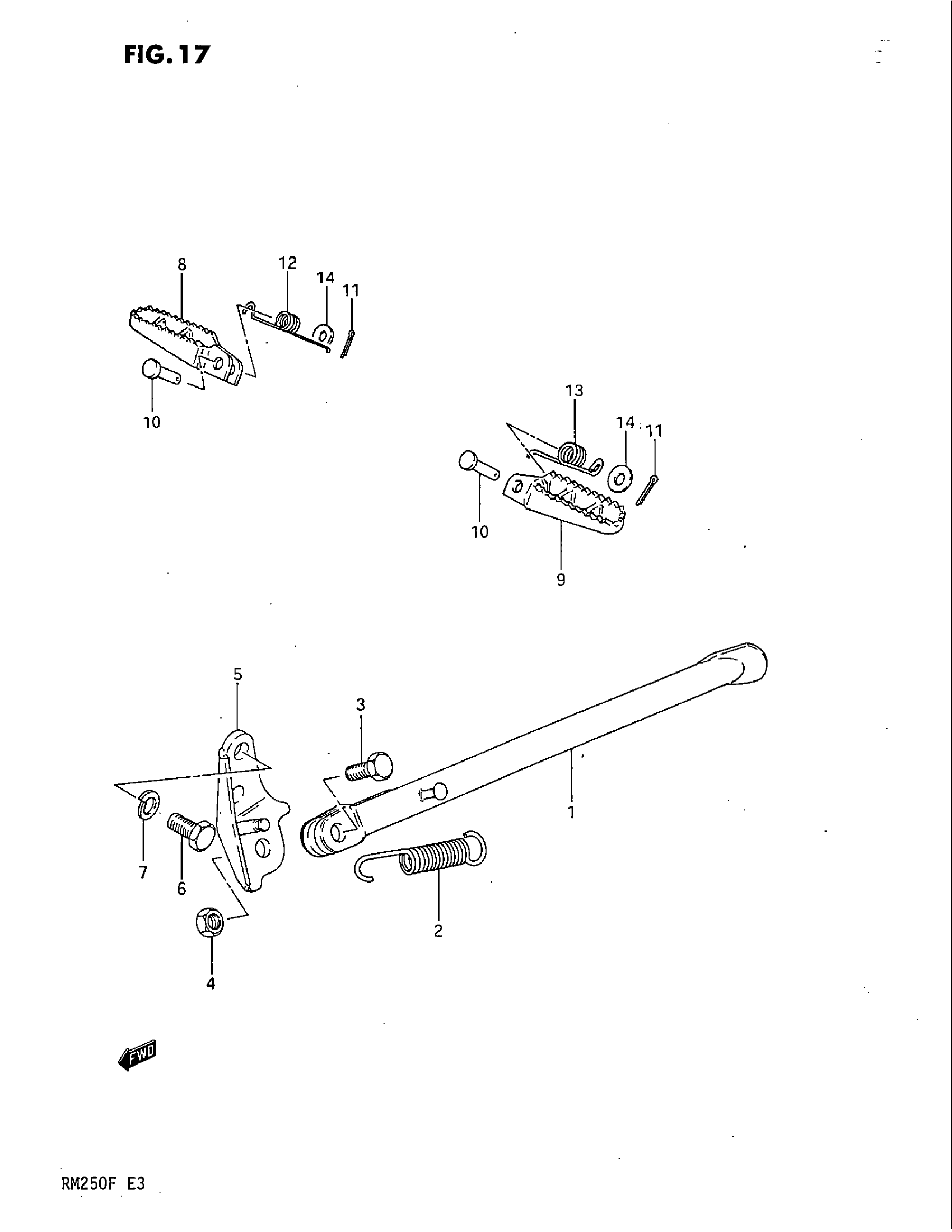

Suzuki RM250 (1985) STAND - FOOTREST Diagram

#

Description
Price

1

STAND SIDE This part replaces 42310-14600-19F.

42310-14400-019

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

BRACKET (BLUE)

42330-14600-19F

Unavailable

6

BOLT

09100-10118

Unavailable

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

FOOTREST, FRONT RH (BLACK) | MODEL E This part replaces 43551-14600.

43551-37202-019

Unavailable

8

FOOTREST, FRONT RH (BLACK) | MODEL F This part replaces 43551-14600-19F.

43551-37202-019

Unavailable

9

FOOTREST, FRONT LH (BLACK) | MODEL E This part replaces 43561-40401.

43561-40401-019

Unavailable

9

FOOTREST, FRONT LH (BLACK) | MODEL F This part replaces 43561-40401-19F.

43561-40401-019

Unavailable

10

PIN This part replaces 09200-08035.

09200-08064

$6.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING, RH

43581-14600

Unavailable

13

SPRING, LH

43582-14600

Unavailable

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13
