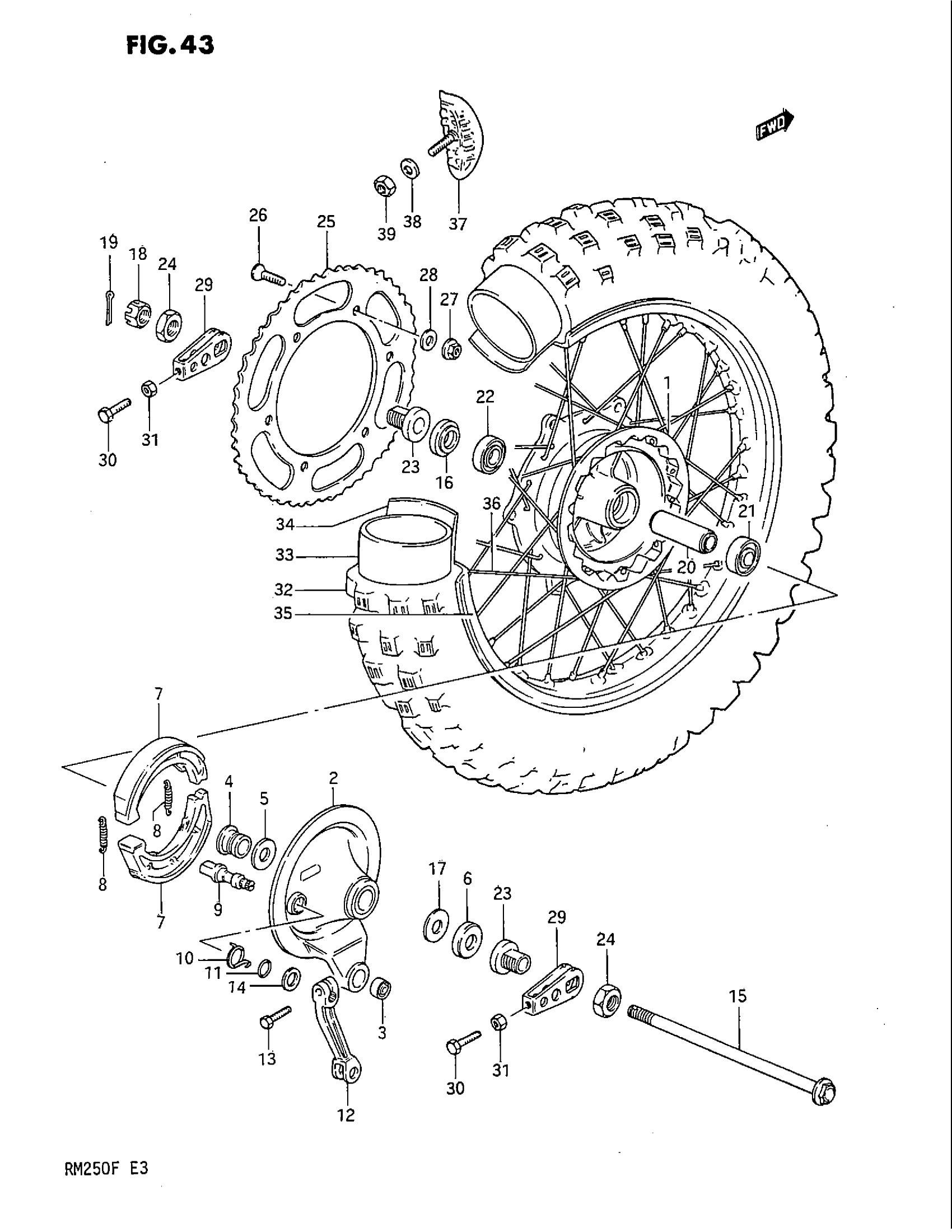

Suzuki RM250 (1985) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-14600

Unavailable

2

PANEL, REAR HUB | MODEL E

64200-14860

Unavailable

2

PANEL, REAR HUB | MODEL F; Includes Item(s) 3 - 3

64200-14890

Unavailable

3

BEARING | MODEL E

64352-40401

Unavailable

3

BEARING | MODEL F This part replaces 64352-14500.

09269-08002

Unavailable

4

SPACER, PANEL

64213-14600

Unavailable

5

SEAL,OIL (24X31X5)

09285-24001

$7.22

6

COVER, PANEL DUST SEAL

64845-37200

Unavailable

7

SHOE SET, BRAKE This part replaces 54410-14100.

64400-40810

$29.77

8

SPRING

64430-14600

$4.53

9

CAM, BRAKE

54441-14101

Unavailable

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

Unavailable

11

DUST SEAL

09280-12001

$2.90

12

LEVER, BRAKE CAM This part replaces 64451-14600.

64451-14500

Unavailable

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

WASHER (12.5X20X1)

09160-12011

$1.54

15

AXLE, REAR (L:256) | MODEL E

64711-14600

Unavailable

15

AXLE, REAR (L:257) | MODEL F

64711-14610

Unavailable

16

SPACER, AXLE LH

64750-14600

Unavailable

17

THRUST WASHER (T:1.0)

08211-17361

$2.83

18

NUT, HUB This part replaces 08314-41168.

08314-4016A

$3.79

19

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

20

SPACER, HUB BEARING

64730-14600

Unavailable

21

BEARING This part replaces 08123-62037.

08133-6203B

$17.61

22

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

23

SPACER, CHAIN ADJUSTER

64781-40600

Unavailable

24

NUT

09140-24007

$3.89

25

SPROCKET, REAR (NT:50)

64511-14600

Unavailable

25

SPROCKET, REAR (NT:49) | OPT

64511-14200

Unavailable

25

SPROCKET, REAR (NT:51) | OPT

64511-14610

Unavailable

26

SCREW

09120-08009

$4.62

27

NUT This part replaces 08319-31088.

08319-3108A

$2.32

28

WASHER This part replaces 08322-11088.

08322-01087

$2.13

29

ADJUSTER, CHAIN

61410-40600

Unavailable

30

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

31

NUT This part replaces 08310-12088.

08310-00087

$2.13

32

TIRE, REAR (130/80-18) | BS

65100-14620

Unavailable

33

TUBE, WHEEL INNER

65200-40430

Unavailable

34

IN TUBE PROTECT This part replaces 65261-15010.

55261-26F10

$4.39

35

RIM, WHEEL (215X18) | MODEL E

65311-14600

Unavailable

35

RIM, WHEEL (215X18) GOLD | MODEL F

65311-14610

Unavailable

36

SPOKE ASSY, REAR

65320-14600

Unavailable

37

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

38

WASHER This part replaces 08322-11088.

08322-01087

$2.13

39

NUT This part replaces 08310-12088.

08310-00087

$2.13
