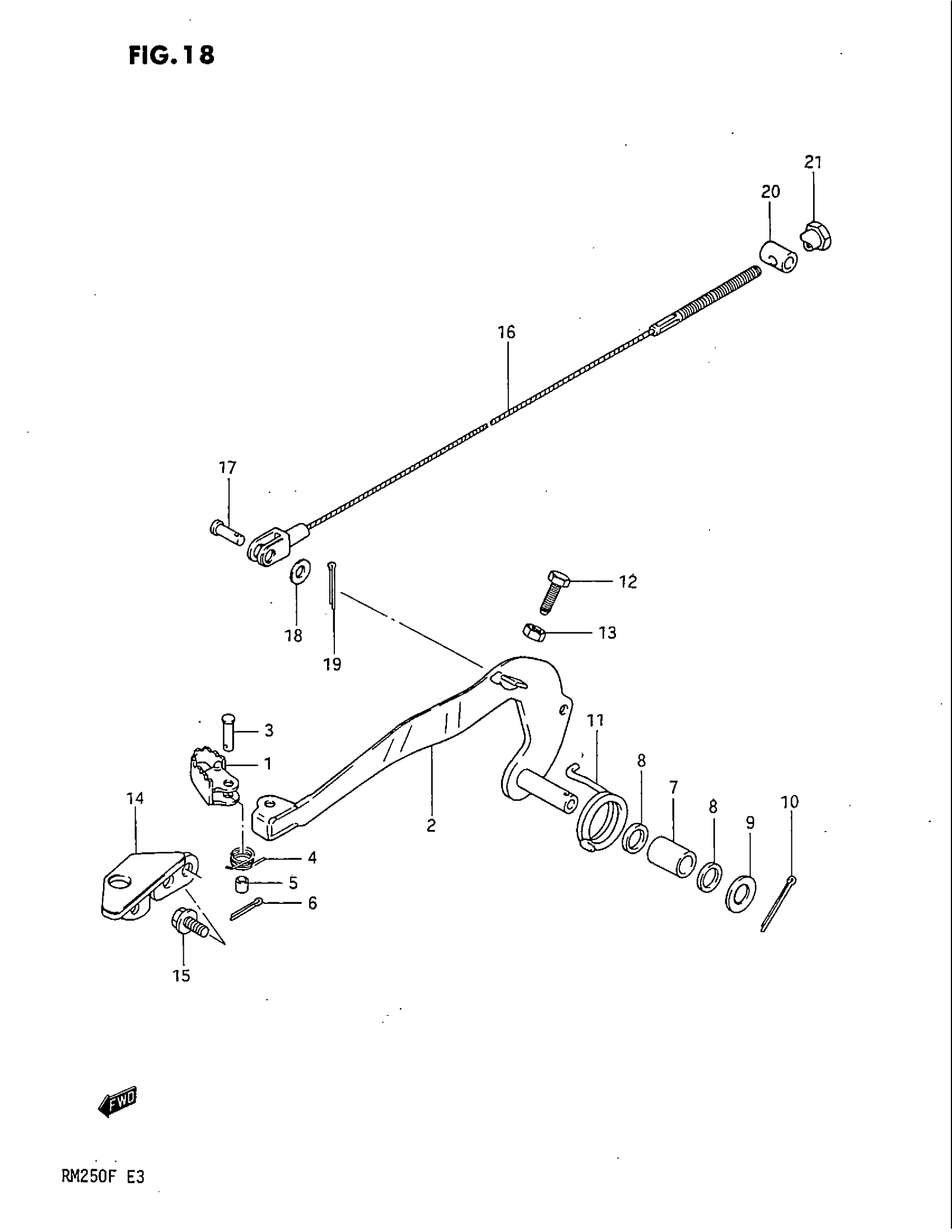

Suzuki RM250 (1985) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-14130

$16.15

2

ARM, REAR BRAKE

43120-14600

Unavailable

3

PIN

09200-06038

$2.38

4

SPRING This part replaces 09444-11004.

09444-11005

$2.86

5

SPACER

09180-06137

Unavailable

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

BUSH

09319-12022

Unavailable

8

O RING

09280-12006

$1.56

9

THRUST WASHER

08211-12223

$2.12

10

PIN This part replaces 04111-30208.

04111-3020A

$1.50

11

SPRING This part replaces 09443-10030.

09443-11025-XC0

Unavailable

12

BOLT

09135-06014

Unavailable

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

PROTECTOR, BRAKE PEDAL

43240-14600

Unavailable

15

BOLT This part replaces 01517-06168.

01550-06167

$2.30

16

CABLE ASSY, RR This part replaces 58510-14600.

58510-146V0

Unavailable

17

PIN

09200-05001

$1.65

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

20

PIN, ADJUSTER

09209-13004

Unavailable

21

.NUT This part replaces 09150-06009.

09150-06010

$3.10
