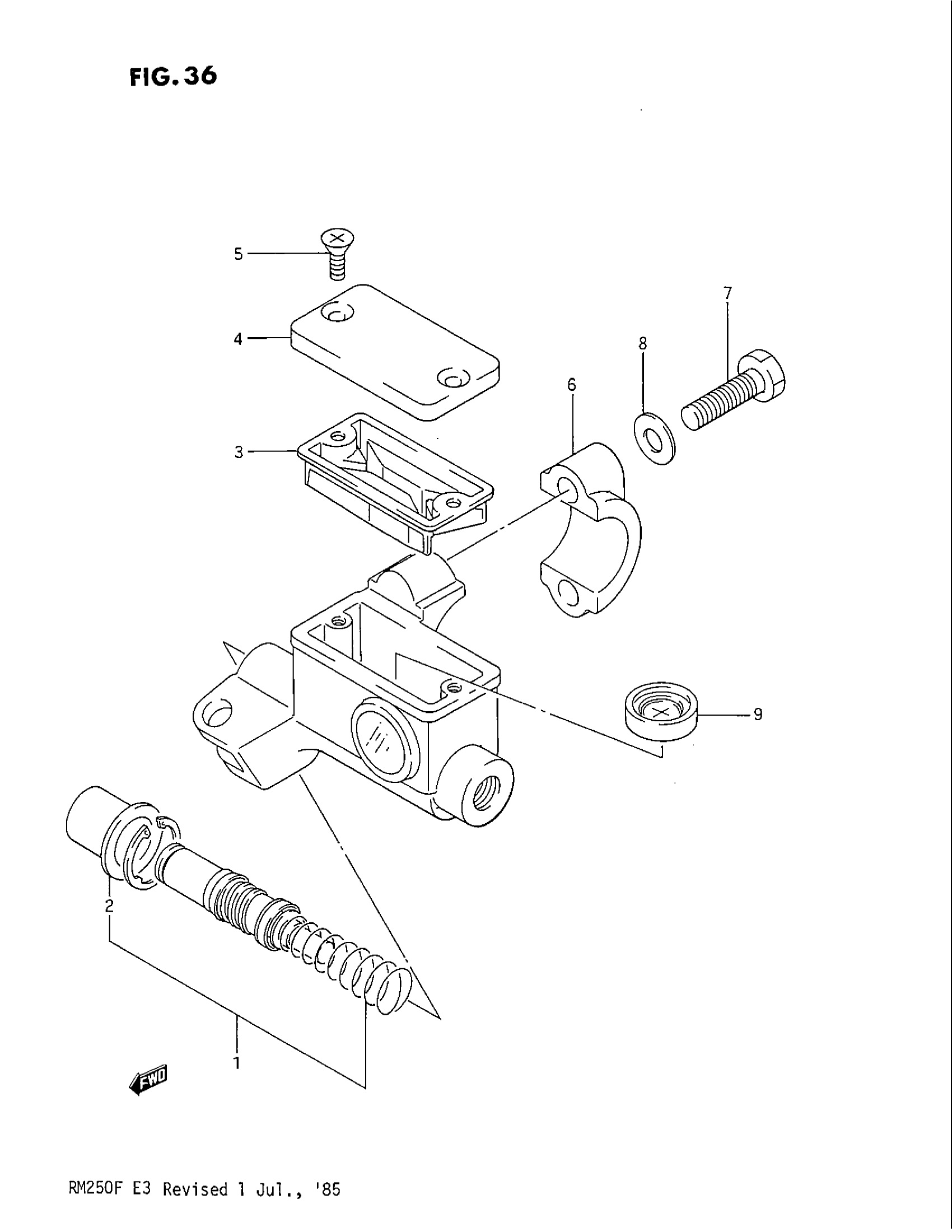

Suzuki RM250 (1985) FRONT MASTER CYLINDER (MODEL F) Diagram

#

Description
Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 1 - 9

59600-14500

Unavailable

1

PISTON & CUP SET

59600-14820

Unavailable

2

BOOT

59666-44300

$5.80

3

DIAPHRAGM

59667-14500

$10.12

4

CAP This part replaces 59669-14500.

59669-27C01

$23.32

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-14500

Unavailable

7

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

9

SEPARATOR

59748-14500

$11.87
