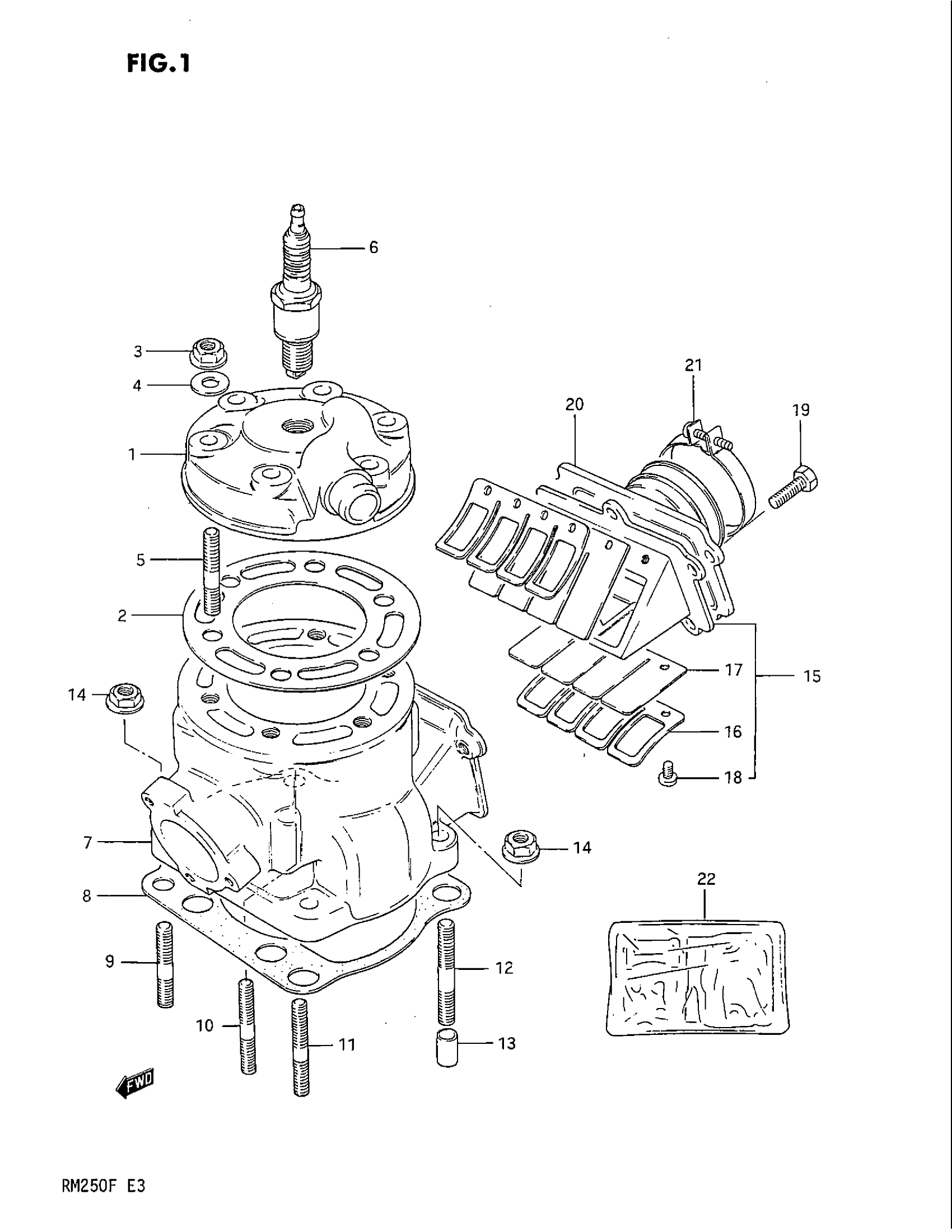

Suzuki RM250 (1985) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | MODEL E This part replaces 11111-14310.

11111-14601

Unavailable

1

CYLINDER HEAD | MODEL F

11111-14601

Unavailable

2

GASKET,CYL HEAD This part replaces 11141-14311.

11141-13A60

Unavailable

3

NUT This part replaces 08316-16085.

08316-1008B

$2.66

4

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

5

STUD BOLT (L:42) | MODEL E

09108-08155

Unavailable

5

BOLT, STUD | MODEL F This part replaces 09108-08145.

09108-08174

Unavailable

6

SPARK PLUG (NGK,B8EGV)

09482-00208

Unavailable

7

CYLINDER | MODEL E

11210-14303

Unavailable

7

CYLINDER | MODEL F

11210-14600

Unavailable

8

GASKET,CYLINDER This part replaces 11241-14600.

11241-14600-H17

Unavailable

9

STUD BOLT (L:30)

09108-08142

$3.18

10

STUD BOLT (L:35)

09108-08143

$3.78

11

STUD BOLT (L:40)

09108-08144

$3.20

12

STUD BOLT (L:42)

09108-08155

Unavailable

13

PIN

04211-11169

$1.78

14

NUT This part replaces 08316-16085.

08316-1008B

$2.66

15

VALVE ASSY, REED | Includes Item(s) 16 - 18 This part replaces 13150-14200.

13150-01C00

Unavailable

16

VALVE ASSY, REED This part replaces 13152-14200.

13150-01C00

Unavailable

17

REED VALVE

13153-14200

Unavailable

18

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

19

BOLT This part replaces 01107-06208.

01500-06207

$2.28

20

PIPE, INTAKE

13110-14600

Unavailable

21

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-14872.

11400-14878

Unavailable
