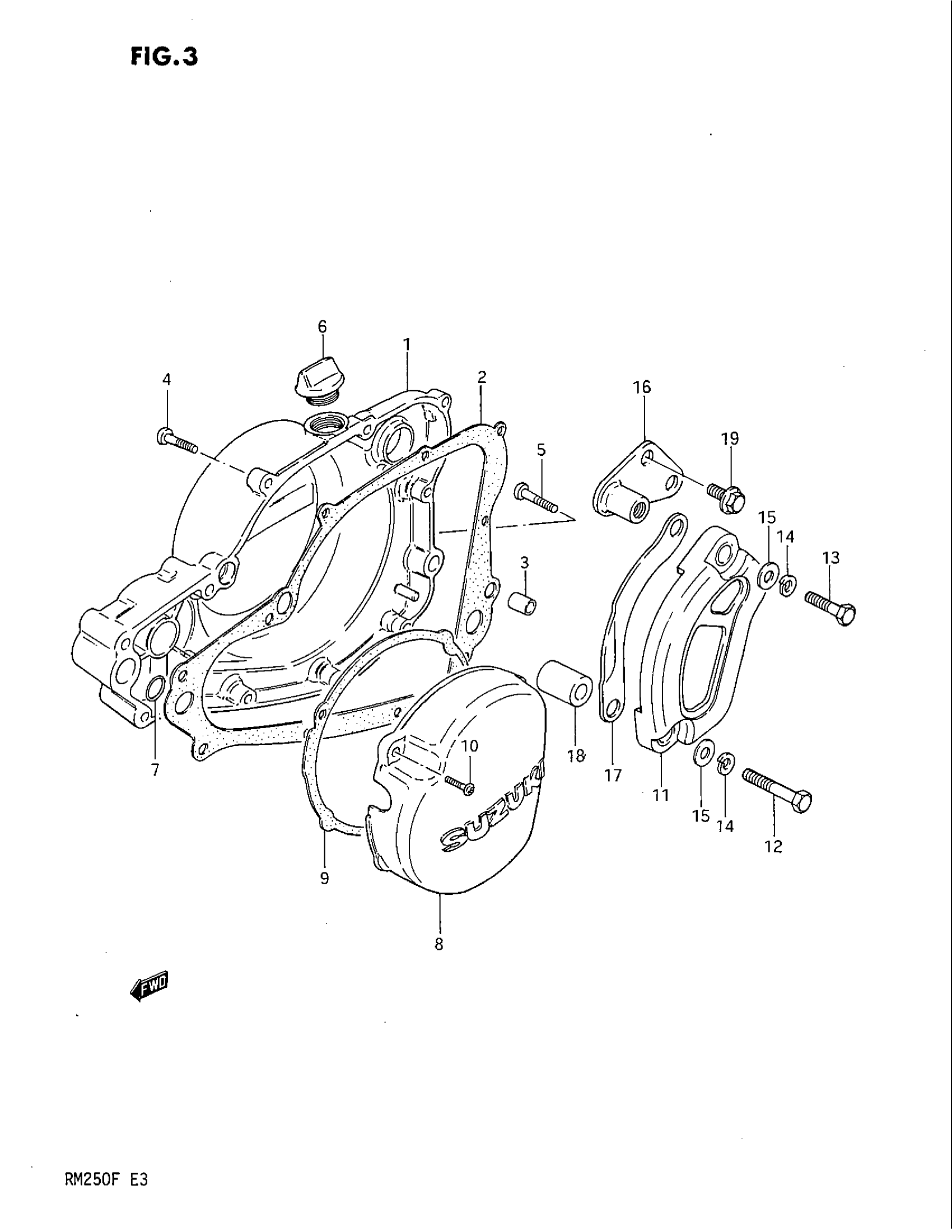

Suzuki RM250 (1985) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL E

11341-14300

Unavailable

1

COVER, CLUTCH | MODEL F

11341-14610

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-14300.

11482-14300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

5

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

O RING

09280-17002

$5.11

8

COVER, MAGNETO | MODEL E This part replaces 11351-14300.

11351-40402

Unavailable

8

COVER, MAGNETO | MODEL F

11351-14610

Unavailable

9

GASKET,MAGNETO This part replaces 11483-14301.

11483-14301-H17

Unavailable

10

SCREW This part replaces 02112-05165.

02112-05164

$2.63

11

COVER,SPROCKET | MODEL E This part replaces 11360-14600.

11360-00BV0

Unavailable

11

COVER,SPROCKET | MODEL F This part replaces 11360-14610.

11360-00BV0

Unavailable

12

BOLT This part replaces 01107-08555.

01500-0855B

$3.49

13

BOLT This part replaces 01107-08304.

01500-0830B

$3.16

14

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

15

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

16

BRACKET

27650-14601

Unavailable

17

PLATE, CHAIN GUIDE | FOR NT:14

27641-14601

Unavailable

17

PLATE, CHAIN GUIDE | OPT FOR NT:13

27641-14611

Unavailable

18

SPACER

09180-08109

Unavailable

19

BOLT This part replaces 01517-08205.

01550-0820A

$2.23
