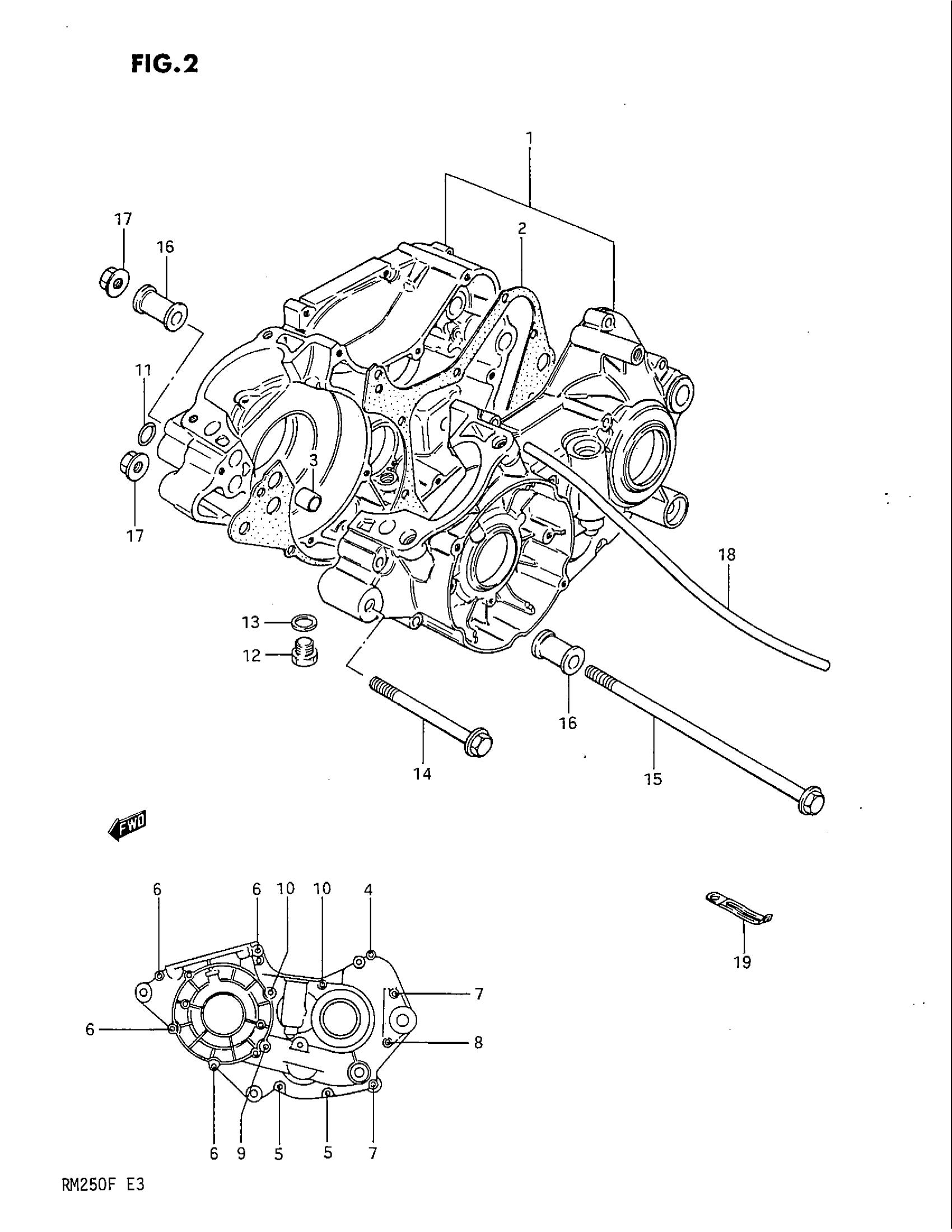

Suzuki RM250 (1985) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL E

11300-14892

Unavailable

1

CRANKCASE SET | MODEL F; Includes Item(s) 2 - 11

11301-14850

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-14300.

11481-14300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

5

SCREW This part replaces 02112-06355.

02112-0635B

$2.19

6

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

7

SCREW This part replaces 02112-06505.

02112-0650B

$2.42

8

SCREW This part replaces 02112-06555.

02112-0655B

$2.53

9

SCREW This part replaces 02112-06605.

02112-0660B

$3.03

10

SCREW This part replaces 02112-06705.

02112-0670B

$3.15

11

O RING

09280-14004

$1.65

12

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

13

GASKET

09168-14004

$1.83

14

BOLT (8X100)

09103-08114

$8.58

15

BOLT (8X225)

09103-08115

Unavailable

16

SPACER, ENGINE MOUNTING (L:28) This part replaces 11611-14230.

11610-14200

Unavailable

17

NUT This part replaces 08319-31088.

08319-3108A

$2.32

18

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

19

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
