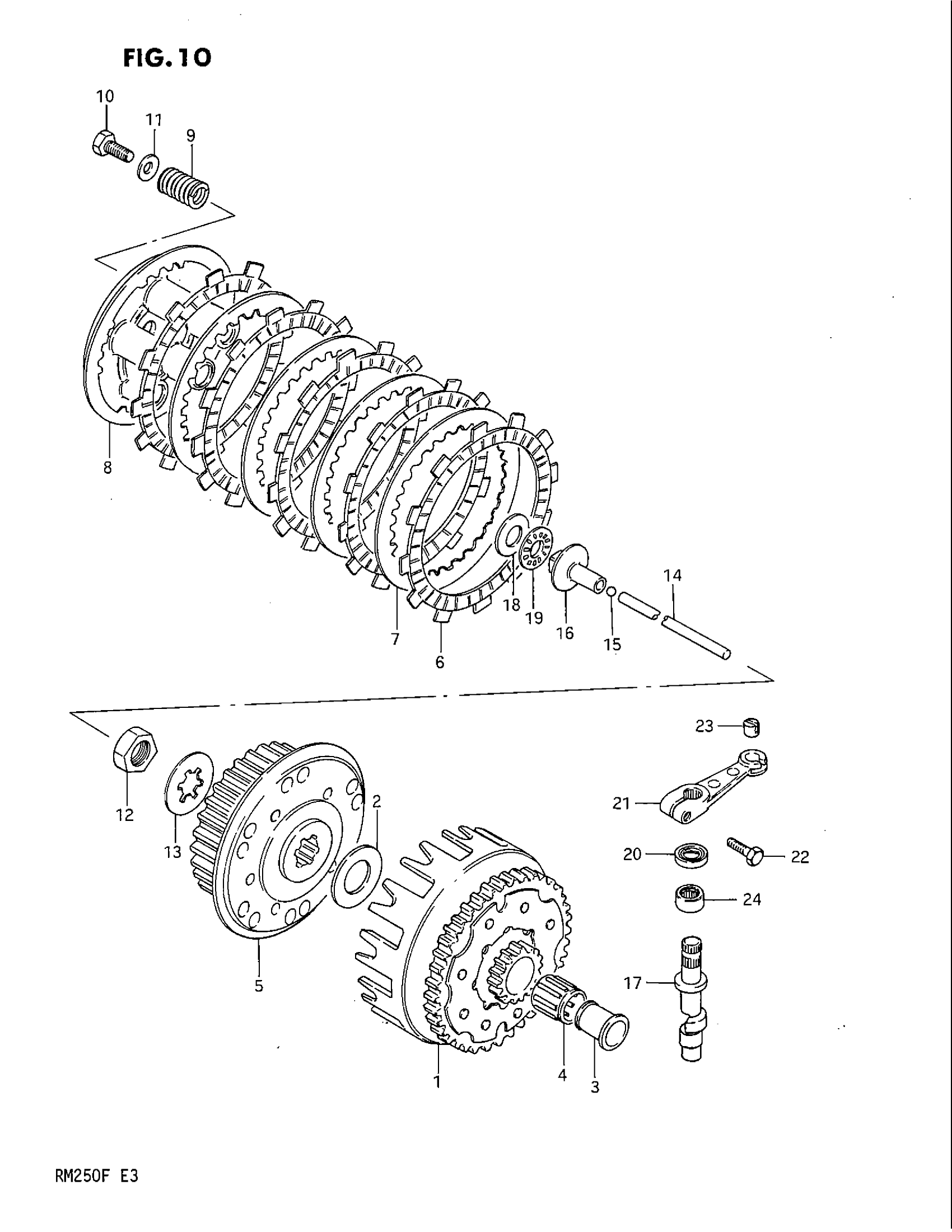

Suzuki RM250 (1985) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:59/18 This part replaces 21200-14310.

21200-14311

Unavailable

2

WASHER

09160-20028

Unavailable

3

SPACER | MODEL E This part replaces 21251-14600.

21251-14601

Unavailable

3

SPACER | MODEL F

21251-14601

Unavailable

4

BEARING This part replaces 09263-25042.

09263-25044

Unavailable

5

HUB, SLEEVE

21411-14300

Unavailable

6

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

7

PLATE, DRIVEN (IRON)

21451-31000

$10.40

7

PLATE, CLUTCH DRIVEN | OPT This part replaces 21451-40001.

21451-31000

$10.40

8

PLATE, PRESSURE | MODEL E This part replaces 21462-14300.

21462-14301

$59.33

8

PLATE, PRESSURE | MODEL F

21462-14301

$59.33

9

SPRING

09440-19007

$2.52

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

12

NUT This part replaces 09140-20002.

09140-20001

$3.37

13

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

14

ROD, PUSH

23111-14300

Unavailable

15

BALL

06111-08003

$1.49

16

PIECE, PUSH

23121-14300

Unavailable

17

CAMSHAFT, RELEASE

23122-14601

Unavailable

18

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

19

THRUST BEARING

09263-15003

$8.29

20

OIL SEAL

09285-12004

$6.24

21

ARM, RELEASE

23271-14200

Unavailable

22

BOLT This part replaces 01107-06208.

01500-06207

$2.28

23

PIECE, END

23222-14200

Unavailable

24

BEARING

09263-12014

$12.36
