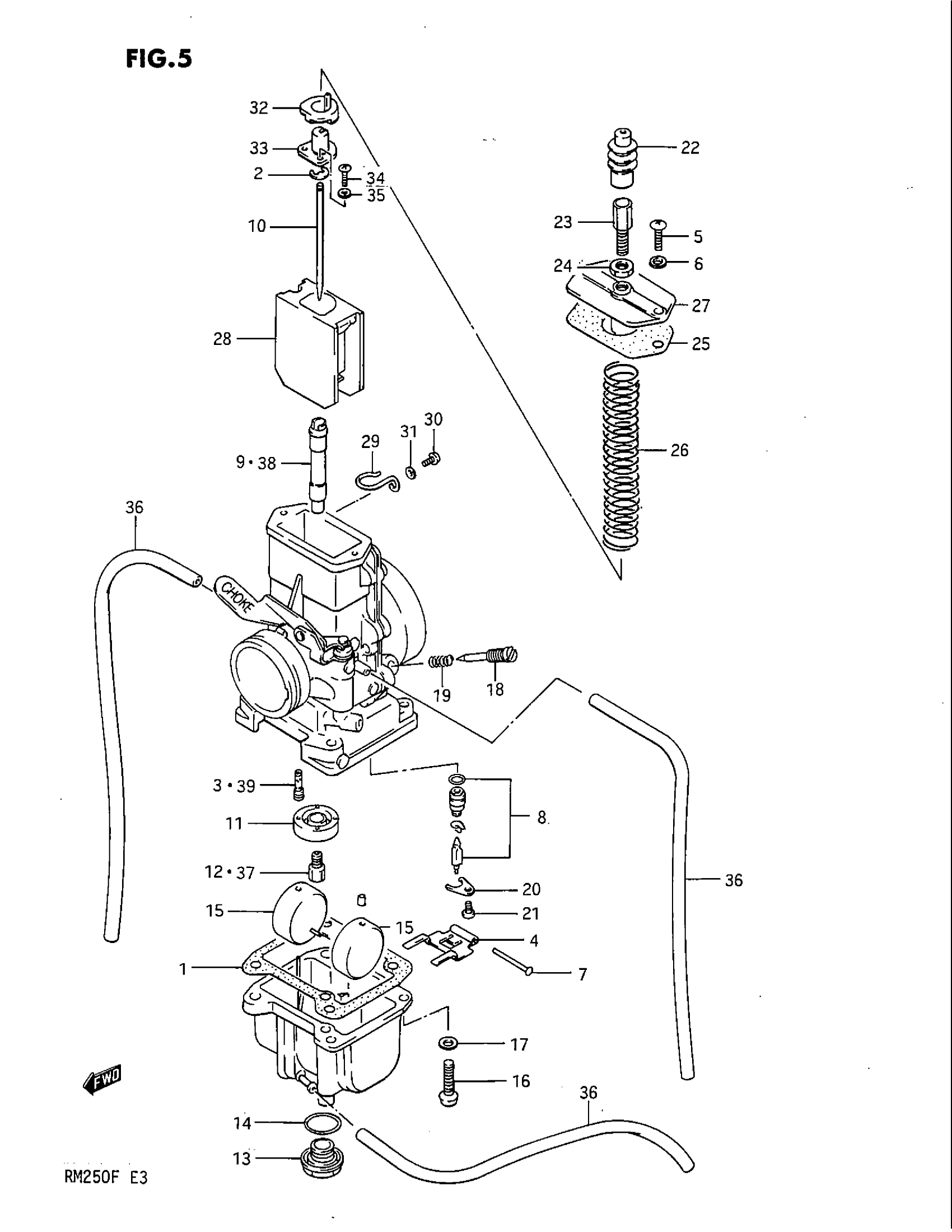

Suzuki RM250 (1985) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL E

13200-14600

Unavailable

CARBURETOR ASSY | MODEL F; Includes Item(s) 1 - 35

13200-14610

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING

13394-10010

$5.45

3

JET, PILOT (50)

09492-50010

Unavailable

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

PIN

13254-92311

$2.07

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (R-0) | MODEL E

09494-00357

Unavailable

9

JET, NEEDLE (R-4) | MODEL F

09494-00403

Unavailable

10

NEEDLE, JET (6FJ40-2)

13383-14300

Unavailable

11

RING

13331-14300

Unavailable

12

JET, MAIN (320)

09491-64002

$11.83

13

CAP, DRAIN

13247-32210

$15.23

14

O RING

13249-41310

$4.40

15

FLOAT

13252-18620

$21.82

16

SCREW This part replaces 02112-05208.

02112-05207

$1.97

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

SCREW, PILOT AIR This part replaces 13269-46010.

13269-95110

$13.35

19

SPRING

13268-01010

$5.28

20

PLATE, NEEDLE VALVE

13373-39110

$6.64

21

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

22

CAP, ADJUSTER

13681-41510

$11.68

23

ADJUSTER, CABLE

13577-41612

$7.01

24

NUT

13661-16600

$4.64

25

GASKET, TOP

13266-14300

Unavailable

26

SPRING, THROTTLE VALVE

13573-14300

Unavailable

27

TOP

13261-14300

Unavailable

28

THROTTLE VALVE (CA:4.0)

13551-14300

Unavailable

29

CLIP

13692-14500

Unavailable

30

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

31

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

32

RING

13387-14230

Unavailable

33

CONNECTOR

13398-14310

Unavailable

34

SCREW This part replaces 02112-03108.

02112-03107

$1.49

35

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

36

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

37

JET, MAIN (300) | OPT

09491-60007

$13.05

37

JET, MAIN (310) | OPT

09491-62005

$11.83

37

JET, MAIN (330) | OPT

09491-66002

$11.38

37

JET, MAIN (340) | OPT

09491-68002

$11.38

37

JET, MAIN (350) | OPT

09491-70011

$11.38

38

JET, NEEDLE (R-2) | OPT

09494-00453

Unavailable

38

JET, NEEDLE (Q-6) | OPT

09494-00356

Unavailable

38

JET, NEEDLE (Q-8) | OPT

09494-00393

Unavailable

39

JET, PILOT (40) | OPT

09492-40004

$10.05

39

JET, PILOT (60) | OPT

09492-60004

Unavailable
