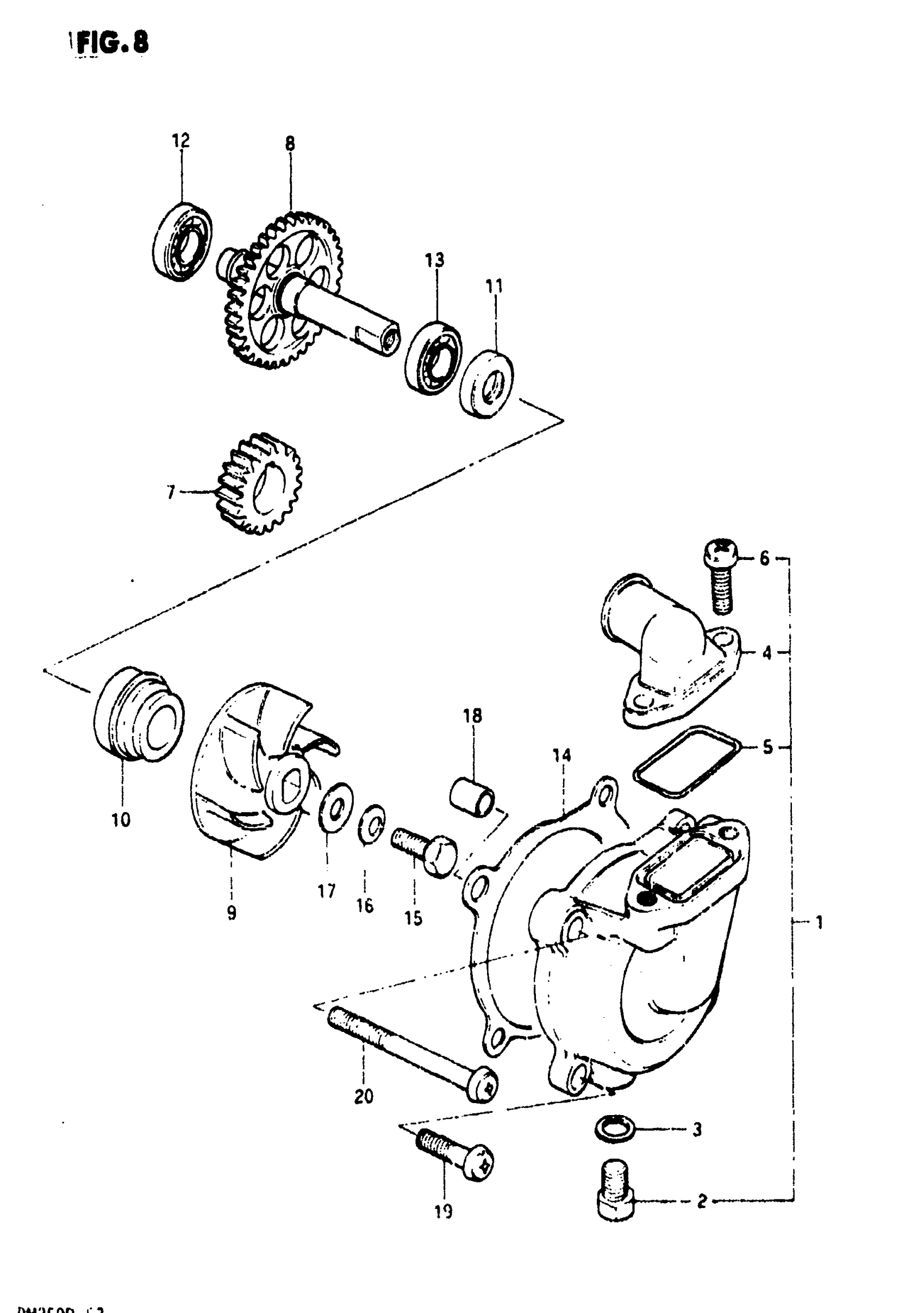

Suzuki RM250 (1983) WATER PUMP Diagram

#

Description
Price

1

CASE,WATER PUMP | Includes Item(s) 2 - 6 This part replaces 17410-14300.

17410-1431V

Unavailable

2

BOLT, DRAIN

17415-14300

$2.99

3

GASKET (8.2X14X1) This part replaces 17413-14100.

09168-08016

$1.65

4

CONNECTOR This part replaces 17412-14300.

17412-28E00

Unavailable

5

O RING

17414-14300

$2.99

6

SCREW This part replaces 02112-06165.

02112-0616A

$1.49

7

GEAR, DRIVE (NT:19)

17451-14300

Unavailable

8

SHAFT (NT:36)

17461-14300

Unavailable

9

IMPELLER

17491-14300

Unavailable

10

.SEAL,MECHANICAL This part replaces 17470-14100.

17470-02F11

$29.22

11

.SEAL OIL (10X21X5)

09283-10004

$4.96

12

BEARING, INNER

09262-10004

$32.70

13

BEARING This part replaces 09262-12003.

08113-69010

$23.28

14

GASKET, WATER PUMP CASE This part replaces 17431-14302.

17431-14303

Unavailable

15

BOLT

09100-06099

$2.00

16

LOCK WASHER

09164-06006

$2.61

17

GASKET This part replaces 09168-06016.

09168-06025

$2.92

18

PIN

04211-09129

$1.65

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

SCREW This part replaces 02112-06608.

02112-06607

$2.57
