1983 Suzuki RM250 Shock Absorber Diagram

← All diagrams

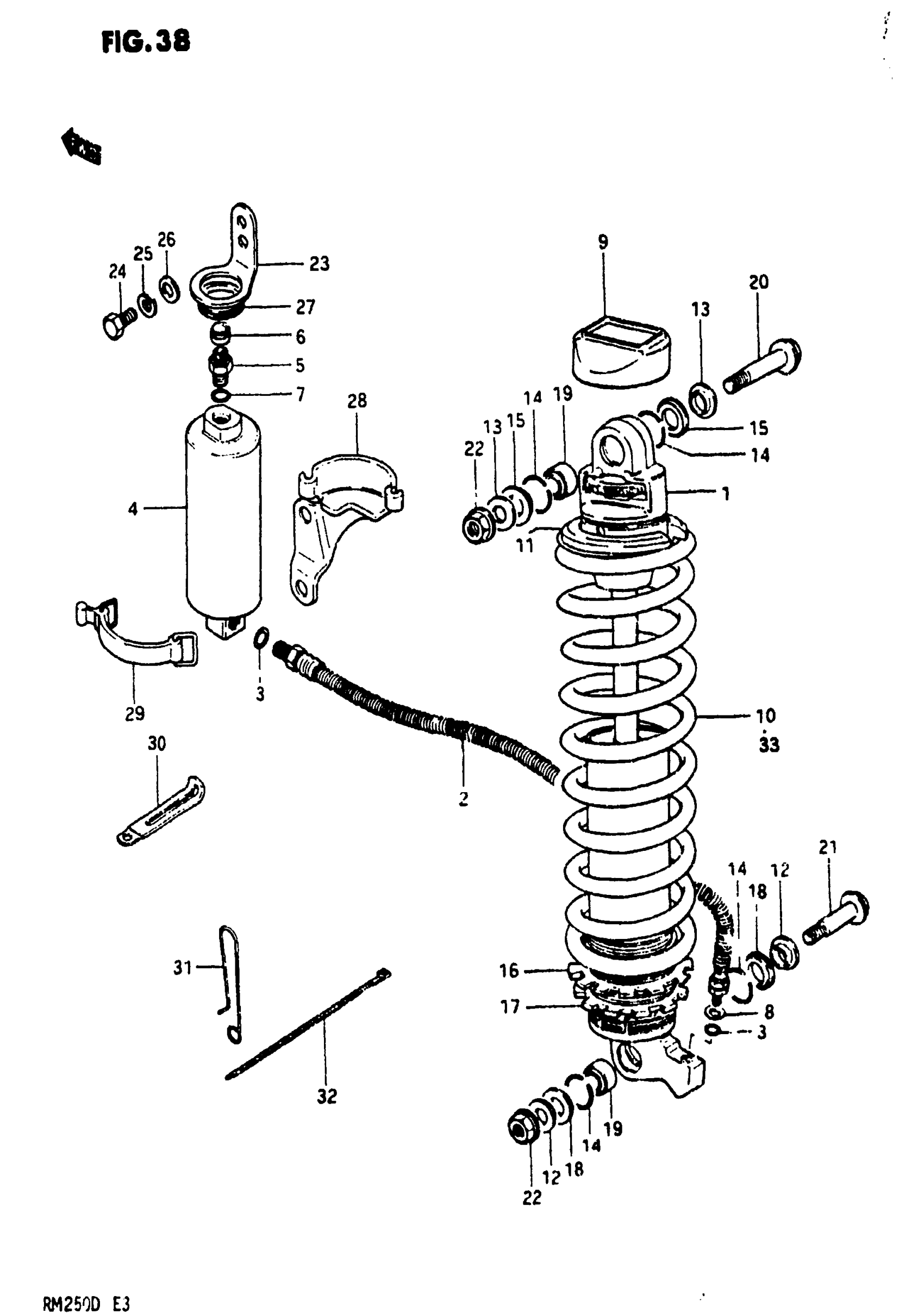

Find the part on the Shock Absorber diagram for your 1983 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki RM250 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER, REAR | Includes Item(s) 2 - 19

62100-14300

1
Out of stock

2

HOSE

62280-14300

1
Out of stock

3

O RING

62154-40200

2
Out of stock

4

TANK

62270-14300

1
Out of stock

5

VALVE

62274-14100

1
Out of stock

6

VALVE, CAP

51294-40400

1
Out of stock

7

O RING

51117-41211

1
Out of stock

8

WASHER

62285-14100

1
Out of stock

9

CAP

62179-14100

1
Out of stock

10

SPRING

62211-14100

1
Out of stock

11

SPRING, GUIDE

62225-14100

1
Out of stock

12

COLLAR

62177-14100

2
Out of stock

13

COLLAR

62177-14200

2
Out of stock

14

RING, STOPPER This part replaces 62277-14200.

62657-34A01

4
Out of stock

15

DUST SEAL, UPPER

62226-14200

2
Out of stock

16

SPRING, GUIDE

62191-14100

1
Out of stock

17

NUT, ADJUSTER

62194-14100

1
Out of stock

18

DUST SEAL, LOWER

62226-14100

2
Out of stock

19

BEARING, REAR (10x24x14.5) This part replaces 09269-10001.

62175-00B00

2
Out of stock

20

BOLT,10X77 This part replaces 09103-10039.

09103-10247-XC0

1
Out of stock

21

BOLT, LOWER (L:58)

09103-10040

1
Out of stock

22

NUT This part replaces 08319-31108.

08319-31107

2
Out of stock

23

BRACKET, UPPER

62411-14301

1
Out of stock

24

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

25

2

$2.28

In stock

26

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

27

CUSHION This part replaces 62423-14210.

62423-14211

1
Out of stock

28

BRACKET, LOWER This part replaces 62420-14301.

62420-14310

1
Out of stock

29

BAND

09462-00075

1
Out of stock

30

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

31

GUIDE

62431-14100

1
Out of stock

32

CLAMP This part replaces 09407-16401.

09407-25402

1
Out of stock

33

SPRING (HARD) | OPT

62211-14110

1
Out of stock

33

SPRING (SOFT) | OPT

62211-14120

1
Out of stock
