1983 Suzuki RM250 Rear Wheel Diagram

← All diagrams

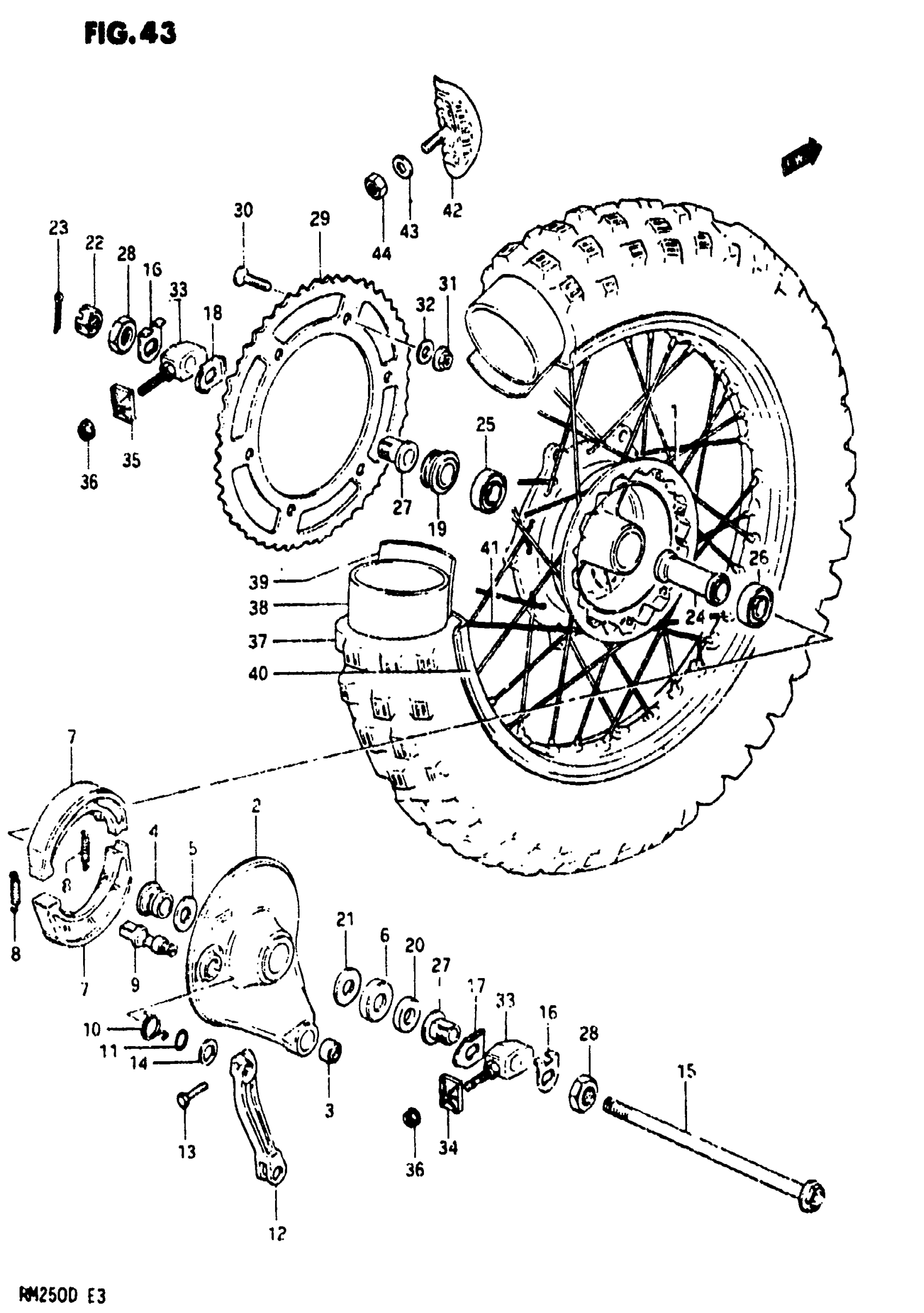

Find the part on the Rear Wheel diagram for your 1983 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki RM250 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 64110-14102.

64110-14103

1
Out of stock

2

PANEL, REAR HUB | Includes Item(s) 3

64200-14830

1
Out of stock

3

BEARING

64352-40401

1
Out of stock

4

SPACER, PANEL

64213-14100

1
Out of stock

5

DUST SEAL, INNER

09283-20031

1
Out of stock

6

COVER, PANEL DUST SEAL

64845-14100

1
Out of stock

7

SHOE SET, BRAKE This part replaces 64410-14100.

64400-14820

2
Out of stock

8

2

$2.39

In stock

9

CAM, BRAKE

54441-14101

1
Out of stock

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

1
Out of stock

11

DUST SEAL

09280-12001

1

$3.25

In stock

12

LEVER, BRAKE CAM

64451-14100

1
Out of stock

13

1

$2.10

In stock

14

WASHER (12.5X20X1)

09160-12011

1
Out of stock

15

AXLE,REAR This part replaces 64711-14201.

64711-1420V

1
Out of stock

16

WASHER This part replaces 64712-14300.

64712-14301

2
Out of stock

17

WASHER, INNER RH

64782-14200

1
Out of stock

18

PLATE, INNER LH

64792-14200

1
Out of stock

19

SPACER, AXLE LH

64750-14200

1
Out of stock

20

SPACER, AXLE RH

64741-14210

1
Out of stock

22

NUT

09141-14004

1

$3.79

In stock

23

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

24

SPACER HUB BEARING

64730-14101

1
Out of stock

25

BEARING, LH

08123-62027

1

$18.33

In stock

26

BEARING, RH

08143-62027

1

$15.50

In stock

27

SPACER, CHAIN ADJUSTER

64781-14201

2
Out of stock

28

NUT

09140-22006

2
Out of stock

29

1

$134.48

In stock

29

SPROCKET, REAR (NT:48) | OPT This part replaces 64511-40285.

64511-14D60

1
Out of stock

30

SCREW

09120-08004

6

$2.95

In stock

31

NUT This part replaces 08319-31088.

08319-3108A

6
Out of stock

32

WASHER This part replaces 08322-11088.

08322-01087

6
Out of stock

33

ADJUSTER, CHAIN

61410-14121

2
Out of stock

34

PLATE, R

61421-14210

1
Out of stock

35

PLATE, L

61431-14210

1
Out of stock

36

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

37

TIRE (510-18) | IRC

65100-14210

1
Out of stock

37

TIRE (510-18) | DUNLOP

65100-14240

1
Out of stock

37

TIRE (510-18) | BS

65100-14120

1
Out of stock

38

TUBE, WHEEL INNER

65200-40430

1
Out of stock

39

1

$4.49

In stock

40

RIM, WHEEL (215X18) This part replaces 65311-14212.

65311-14600

1
Out of stock

41

SPOKE ASSY, REAR This part replaces 65320-14221.

65320-14112

1
Out of stock

42

2

$66.32

In stock

43

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

44

2

$1.93

In stock
