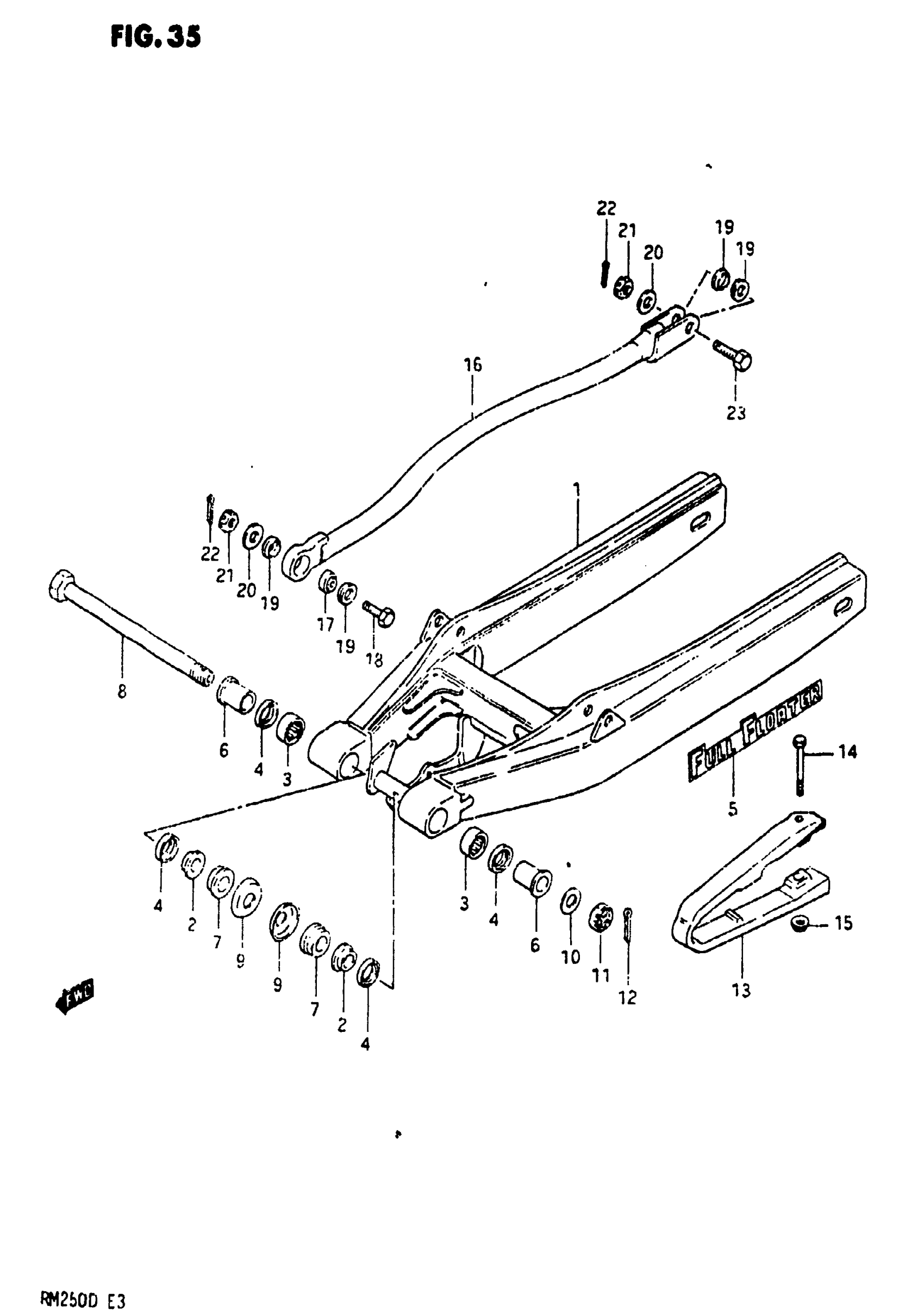

Suzuki RM250 (1983) REAR SWINGING ARM (MODEL Z) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 5

61000-14300

Unavailable

2

BUSH

61261-14110

Unavailable

3

BEARING

09263-20041

$28.77

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

5

EMBLEM

68381-14100-64D

Unavailable

6

SPACER

61251-14100

Unavailable

7

SPACER, INNER

61252-14100

Unavailable

8

SHAFT, PIVOT

61211-14102

Unavailable

9

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.59

10

WASHER This part replaces 08322-11148.

08322-01147

$1.92

11

NUT, HUB This part replaces 08314-41148.

08314-4014B

$3.89

12

PIN This part replaces 04111-30308.

04111-3030A

$1.37

13

BUFFER, CHAIN DEFENSE This part replaces 61273-14210.

61273-14211

Unavailable

14

BOLT This part replaces 01107-06708.

09100-06062

Unavailable

15

NUT This part replaces 08319-31068.

08319-31067

$2.01

16

TORQUE LINK SET | Includes Item(s) 17

64300-14813

Unavailable

17

BEARING This part replaces 64352-40410.

64352-40401

Unavailable

18

BOLT, FRONT

09101-08003

Unavailable

19

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

20

WASHER This part replaces 08322-11088.

08322-01087

$1.86

21

NUT This part replaces 08314-41088.

08314-4008B

$3.30

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

23

BOLT, REAR

09101-08014

Unavailable
