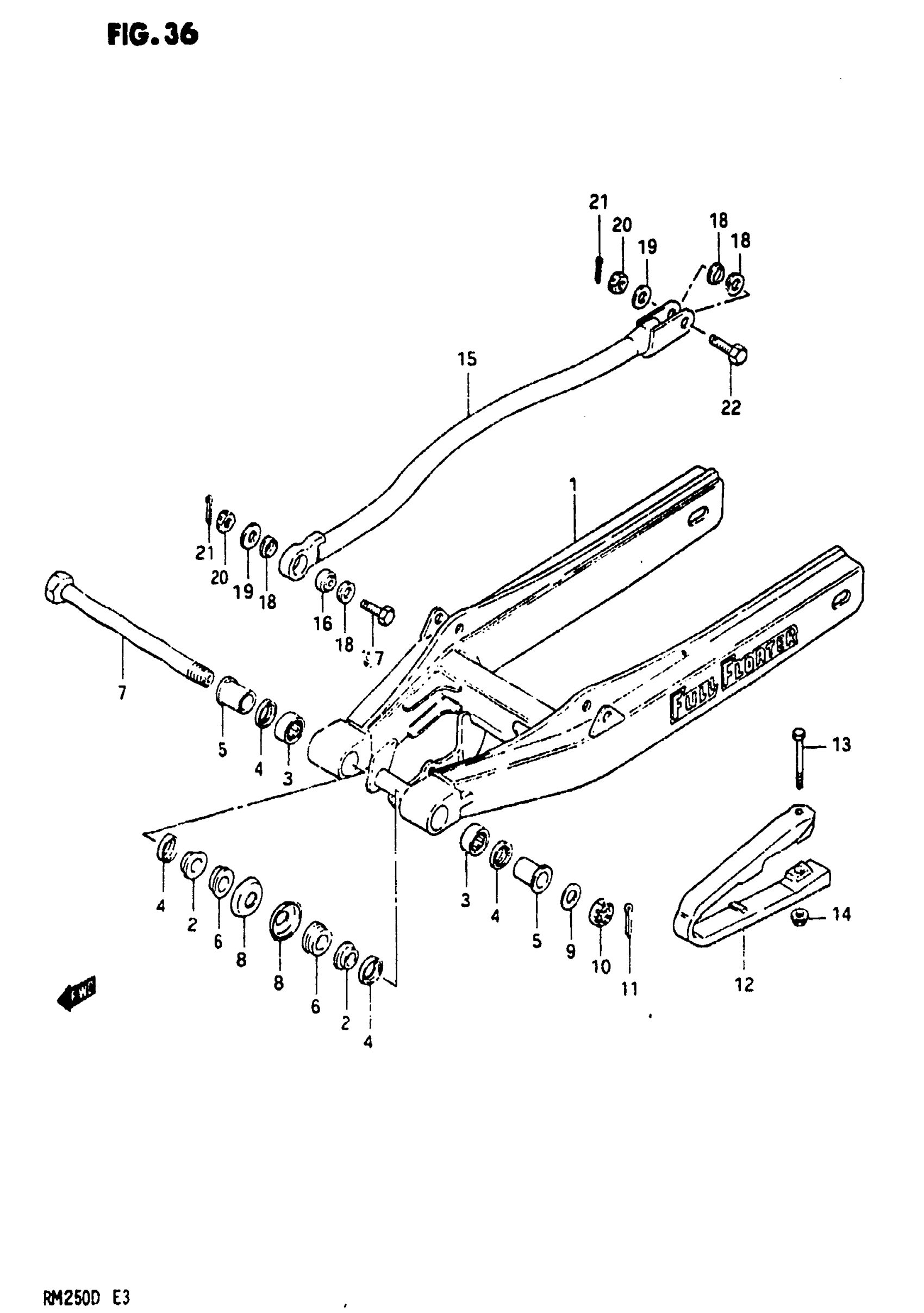

Suzuki RM250 (1983) REAR SWINGING ARM (MODEL D) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61000-14320

Unavailable

2

BUSH This part replaces 61261-40402.

61261-27C00

Unavailable

3

BEARING

09263-20041

$26.47

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

SPACER

61251-14100

Unavailable

6

SPACER, INNER

61252-14100

Unavailable

7

SHAFT, PIVOT

61211-14102

Unavailable

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

9

WASHER This part replaces 08322-11148.

08322-01147

$1.91

10

NUT, HUB This part replaces 08314-41148.

08314-4014B

$4.24

11

PIN This part replaces 04111-30308.

04111-3030A

$1.49

12

BUFFER, CHAIN DEFENSE

61273-14211

Unavailable

13

BOLT

09100-06062

Unavailable

14

NUT This part replaces 08319-31068.

08319-31067

$2.03

15

TORQUE LINK SET | Includes Item(s) 16

64300-14820

Unavailable

16

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

17

BOLT, FRONT

09101-08003

Unavailable

18

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

NUT This part replaces 08314-41088.

08314-4008B

$3.03

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

22

BOLT, REAR

09101-08014

Unavailable
