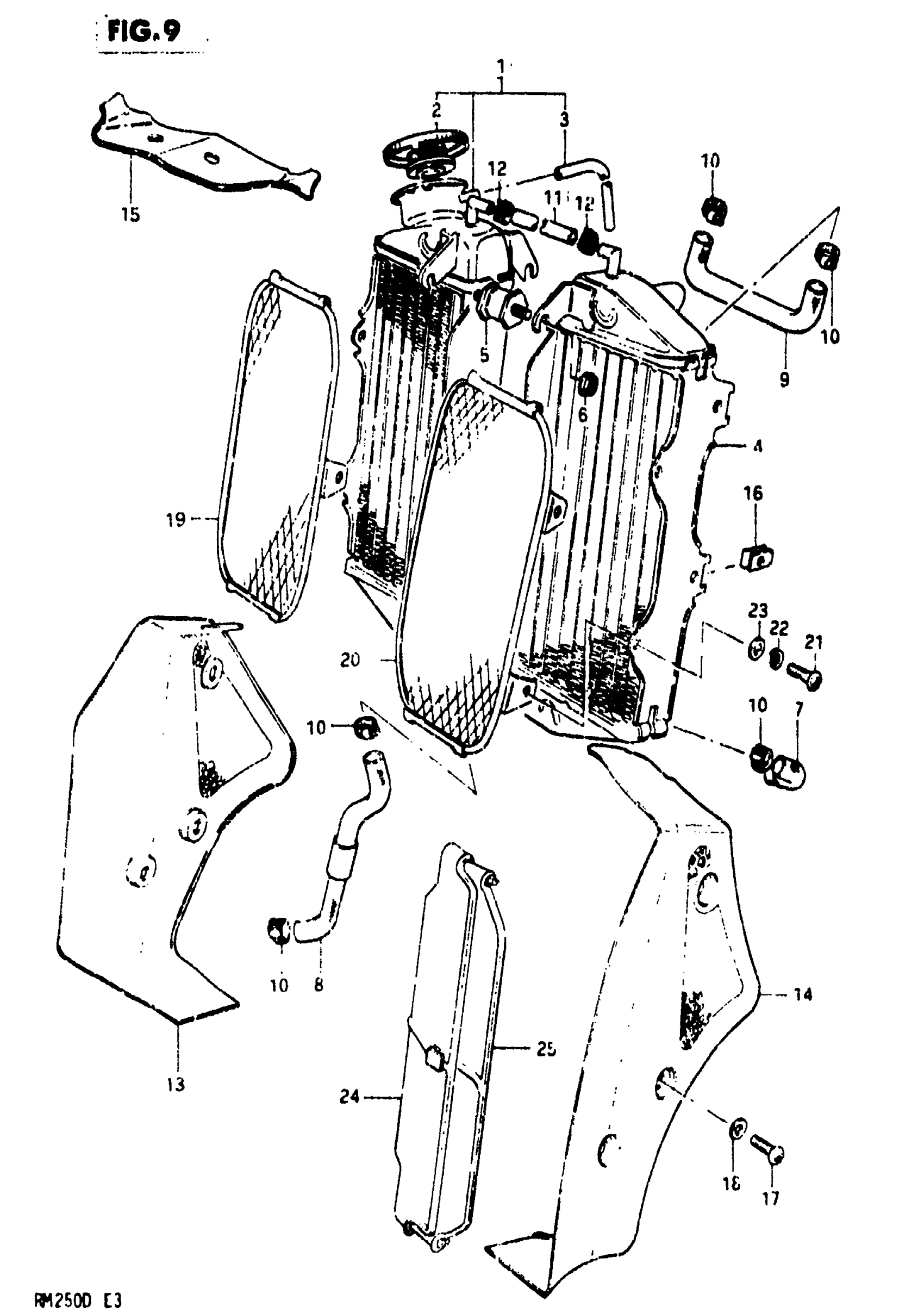

Suzuki RM250 (1983) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH | Includes Item(s) 2 - 3

17710-14300

Unavailable

2

CAP

17730-14300

Unavailable

3

HOSE, OVER FLOW

17732-14300

Unavailable

4

RADIATOR, LH

17720-14300

Unavailable

5

CUSHION

17788-14300

Unavailable

6

NUT This part replaces 08316-16068.

08319-31067

$2.03

7

HOSE, INLET | MODEL Z

17851-14300

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 17851-14310.

17858-12C00

Unavailable

8

HOSE, OUTLET This part replaces 17852-14300.

17852-14600

Unavailable

9

HOSE, JOINT

17853-14300

Unavailable

10

CLAMP This part replaces 09402-25501.

09402-28511

$6.88

11

HOSE, BYPASS This part replaces 17854-14300.

17854-13810

Unavailable

12

CLIP

09401-13404

Unavailable

13

COVER, RH | MODEL Z This part replaces 47511-14301.

47511-14304

Unavailable

13

COVER, RH | MODEL D

47511-14304

Unavailable

14

COVER SET,RADIA | MODEL Z This part replaces 47521-14301.

47500-14831

Unavailable

14

COVER, LH | MODEL D

47521-14304

Unavailable

15

COVER, UPPER

47561-14301

Unavailable

16

PLATE

47512-14300

Unavailable

17

SCREW

09123-05009

Unavailable

18

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

19

BUMPER, RADIATOR RH | MODEL Z This part replaces 17810-14300.

17810-14310

Unavailable

19

BUMPER, RADIATOR RH | MODEL D

17810-14310

Unavailable

20

BUMPER, RADIATOR LH | MODEL Z This part replaces 17820-14300.

17820-14310

Unavailable

20

BUMPER, RADIATOR LH | MODEL D

17820-14310

Unavailable

21

SCREW This part replaces 02112-05088.

02112-05087

$1.49

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

LOUVER, MUDGUARD RH

17831-14300

Unavailable

25

LOUVER, MUDGUARD LH

17832-14300

Unavailable
