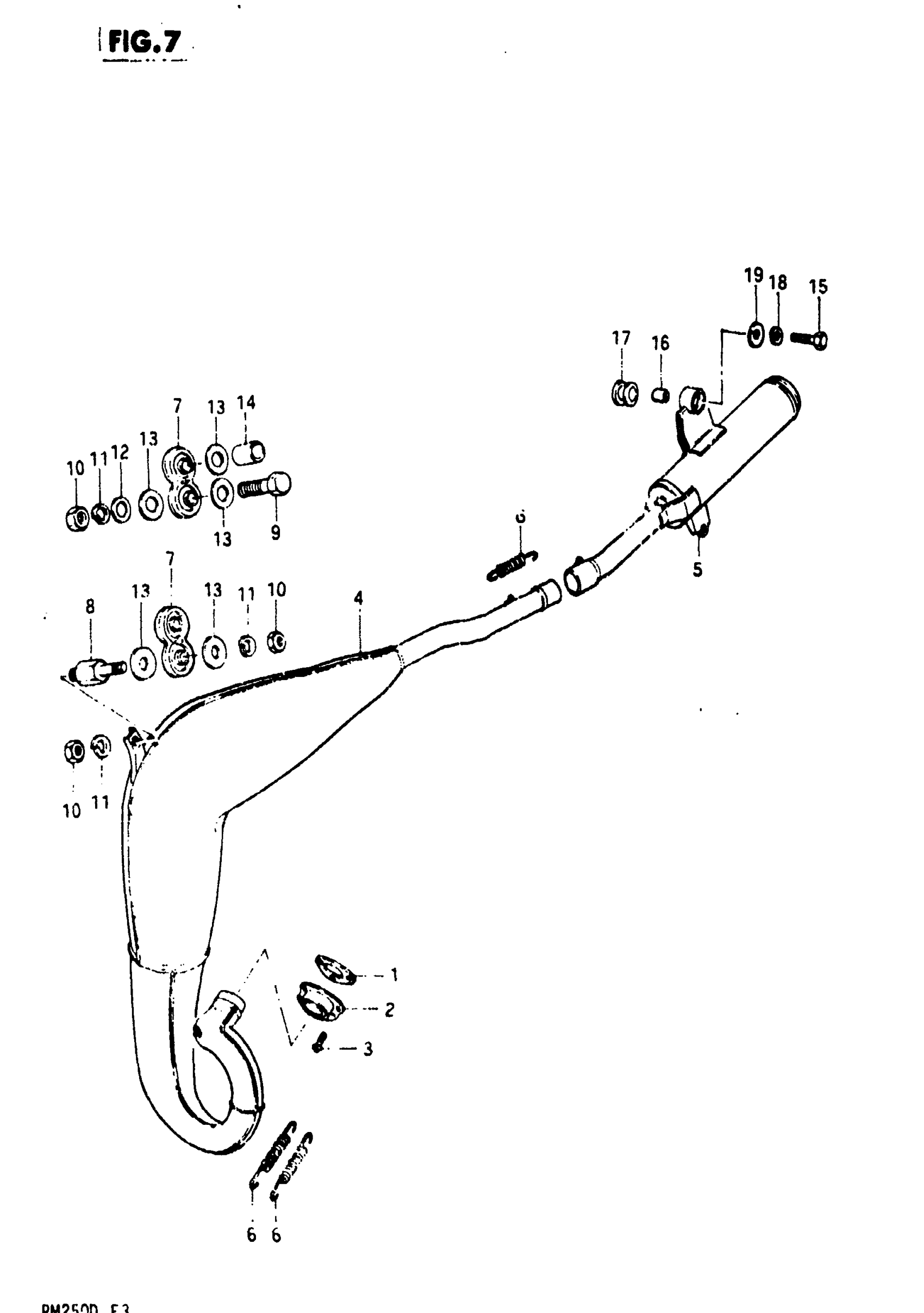

Suzuki RM250 (1983) MUFFLER Diagram

#

Description
Price

1

EXH FLANGE GASK This part replaces 14181-16300.

14181-16300-H17

$5.55

2

FLANGE, EXHAUST PIPE This part replaces 14170-14300.

14170-00B20

Unavailable

3

SCREW This part replaces 02112-06165.

02112-0616A

$1.49

4

NO DESCRIPTION AVAILABLE This part replaces 14310-14300.

14310-14310

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 14330-14300.

14330-14310

Unavailable

6

SPRING This part replaces 09443-12024.

09443-12024-XC0

Unavailable

7

DAMPER, MUFFLER

14770-40000

Unavailable

8

BOLT | MODEL Z

09108-08099

Unavailable

9

BOLT | MODEL D This part replaces 01107-08358.

01500-0835B

$3.04

10

NUT This part replaces 08310-22088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER | MODEL D This part replaces 08322-11088.

08322-01087

$2.13

13

WASHER This part replaces 09160-08035.

09160-08130

$2.03

14

SPACER (8.6x16x23.5) | MODEL D

09180-08109

Unavailable

15

BOLT

09100-08176

$2.45

16

SPACER This part replaces 09180-08102.

09180-08194

$3.05

17

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35
