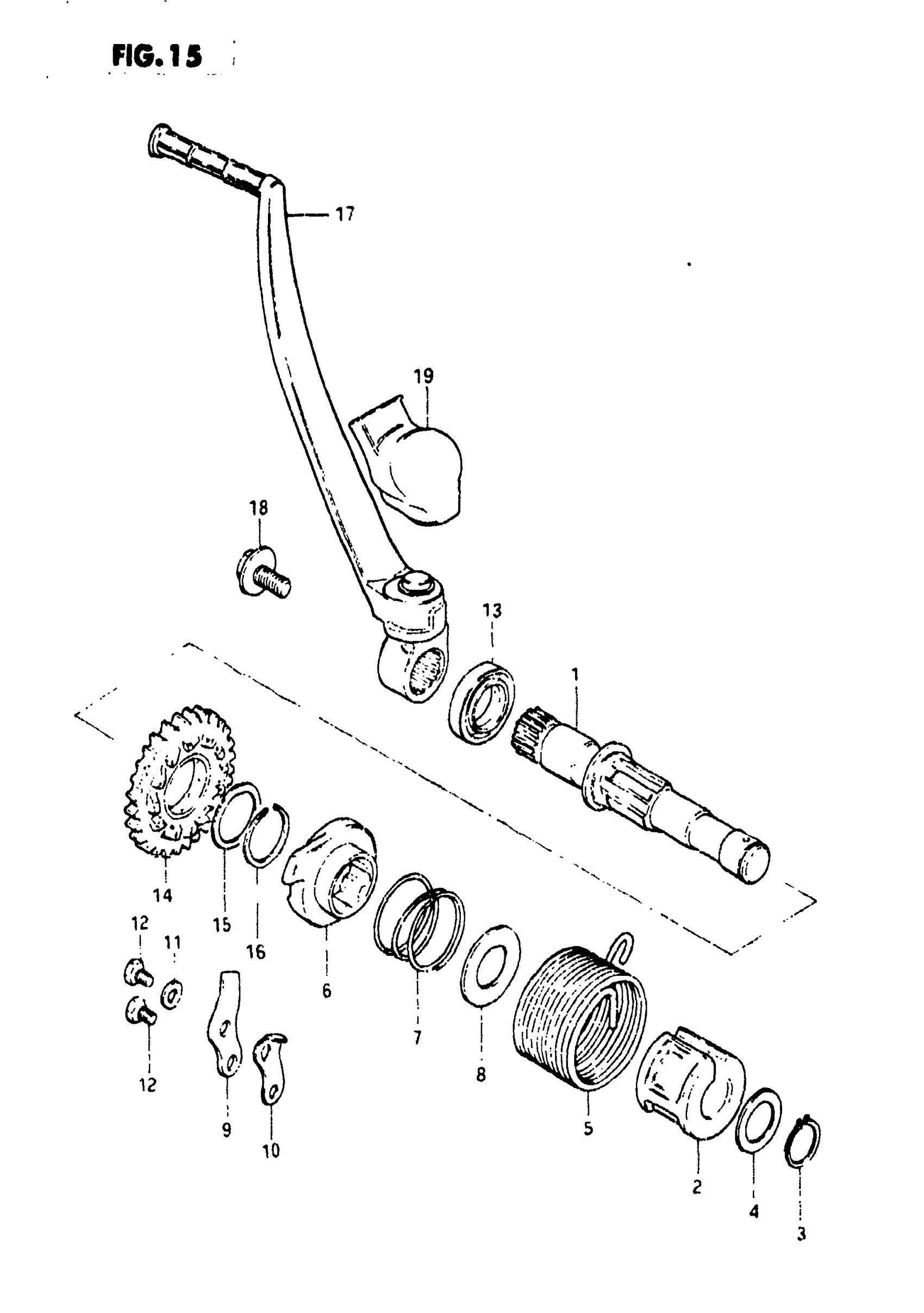

Suzuki RM250 (1983) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-14300.

26211-14301

Unavailable

2

GUIDE, SPRING

26221-41100

$8.28

3

CIRCLIP

09380-17001

$1.98

4

WASHER

08211-17241

$2.54

5

SPRING

09448-45012

Unavailable

6

STARTER, KICK This part replaces 26231-30002.

26231-22A10

$63.88

7

SPRING

09440-32002

$2.27

8

PLATE

08211-17341

$2.50

9

GUIDE, KICK STARTER

26232-40200

$7.08

10

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

11

WASHER

09169-06003

$1.78

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

OIL SEAL

09283-20031

$5.24

14

GEAR, KICK DRIVE (NT:27) This part replaces 26240-41103.

26240-13A00

Unavailable

15

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

16

CIRCLIP

09380-22006

$3.10

17

LEVER,KICK STAR This part replaces 26300-14300.

26300-14X00

Unavailable

18

BOLT

09103-08069

$4.32

19

COVER,KICK STAR This part replaces 26341-41101.

26341-41102

$7.54
