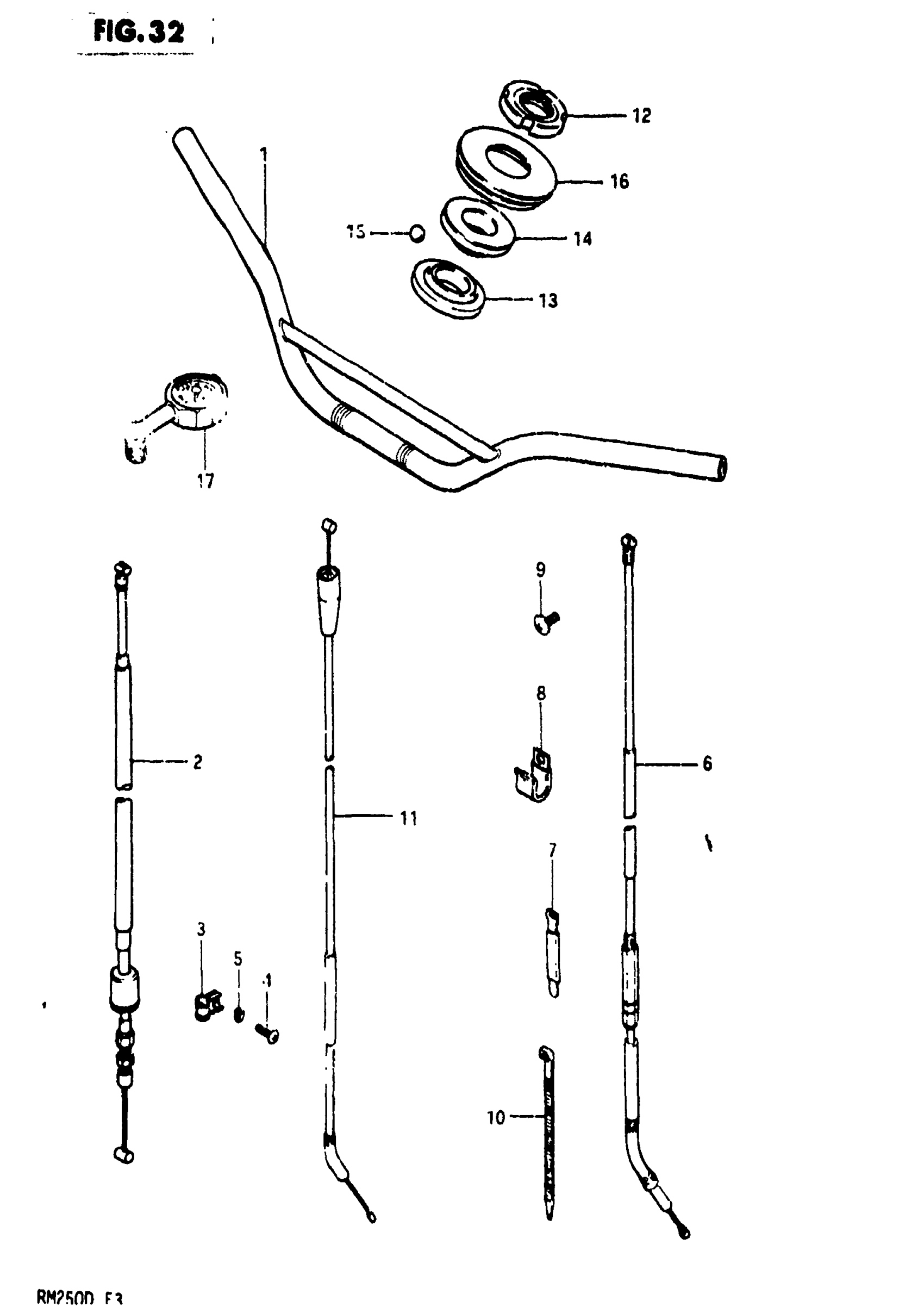

Suzuki RM250 (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (GOLD) | MODEL Z

56110-14211-08C

Unavailable

1

HANDLEBAR (BLACK) | MODEL D

56110-14211-291

Unavailable

2

CABLE ASSY, FRONT BRAKE | MODEL Z

58100-14202

Unavailable

2

CABLE ASSY, FRONT BRAKE | MODEL D

58100-14310

Unavailable

3

CLAMP | MODEL Z This part replaces 58620-14201.

58620-40401

Unavailable

4

SCREW | MODEL Z This part replaces 02112-06208.

02112-06207

$1.78

5

LOCK WASHER | MODEL Z This part replaces 08321-21068.

08321-01067

$2.13

6

CABLE ASSY, CLUTCH

58200-14301

Unavailable

7

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

8

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

9

STOPPER, CL RLSE CAM SHAFT | MODEL D This part replaces 02152-06108.

02142-0610A

$1.49

10

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

11

CABLE, THROTTLE | MODEL Z This part replaces 58300-14300.

58300-14X07

Unavailable

11

CABLE, THROTTLE | MODEL D This part replaces 58300-14310.

58300-14X08

Unavailable

12

NUT, STEERING STEM

51631-40200

Unavailable

13

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

14

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

15

STEEL BALL

06111-08003

$1.49

16

DUST SEAL, UPPER

51643-40200

$7.96

17

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
