1983 Suzuki RM250 Gear Shifting Diagram

← All diagrams

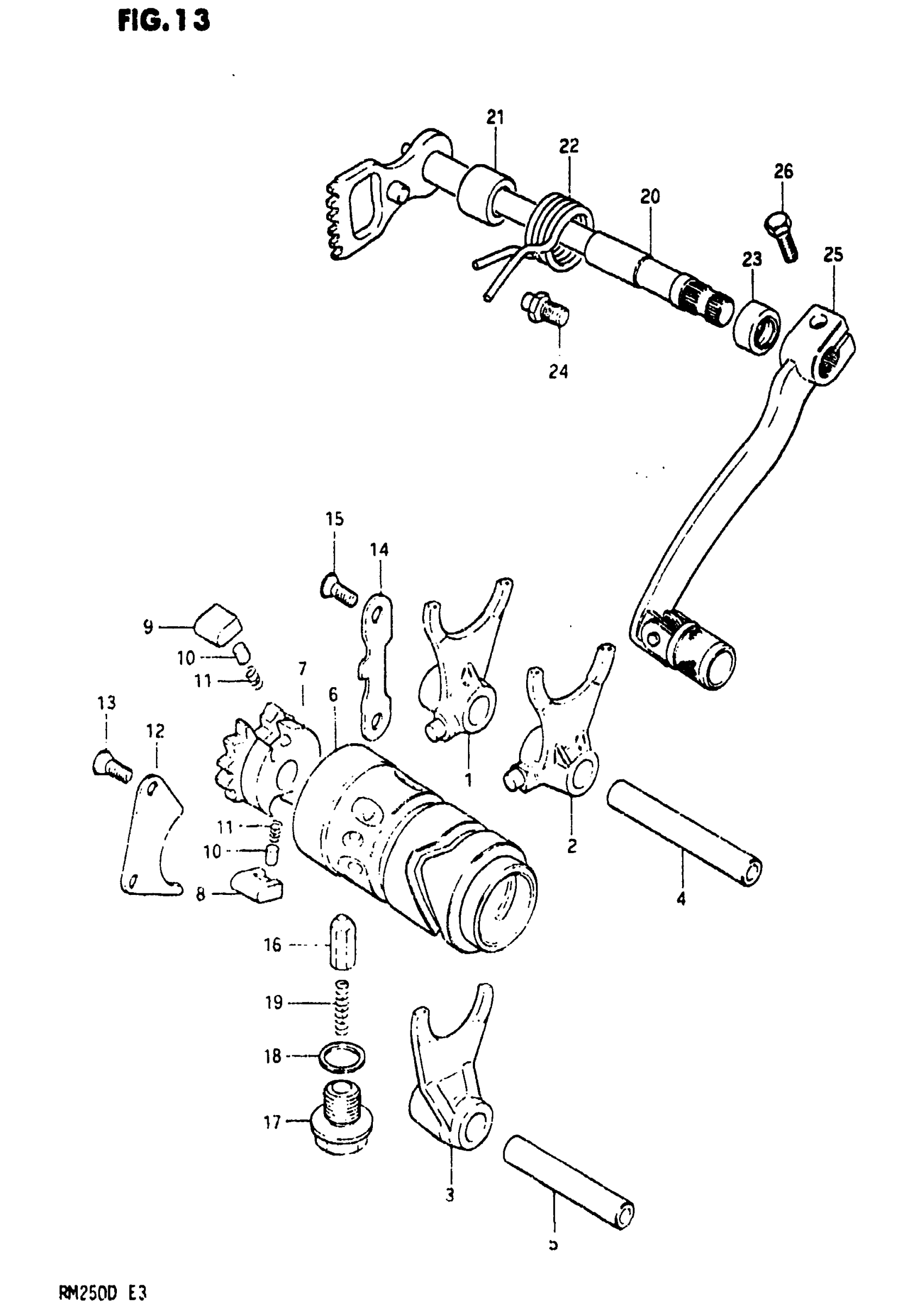

Find the part on the Gear Shifting diagram for your 1983 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki RM250 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, NO.1

25211-14200

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 25221-14300.

25221-14X02

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 25231-40302.

25231-40X01

1
Out of stock

4

SHAFT, GEAR SHIFT FORK NO.2 This part replaces 25411-14310.

25411-14311

1
Out of stock

5

SHAFT, NO.2 (L:57)

25421-14310

1
Out of stock

6

CAM

25310-14213

1
Out of stock

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

10

PIN

09261-05003

2
Out of stock

11

SPRING

09440-04003

2

$1.76

In stock

12

LIFTER, PAWL

25331-16500

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

1

$13.73

In stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

1

$11.55

In stock

17

1

$7.41

In stock

18

GASKET

09168-14004

1

$1.96

In stock

19

SPRING

09440-06020

1
Out of stock

20

NO DESCRIPTION AVAILABLE This part replaces 25510-14300.

25510-143V0

1
Out of stock

21

SPACER

09180-12068

1

$4.03

In stock

22

SPRING

09444-26013

1

$3.06

In stock

23

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

24

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

25

LEVER, GEAR SHIFTING

25600-14300

1
Out of stock

26

1

$2.48

In stock
