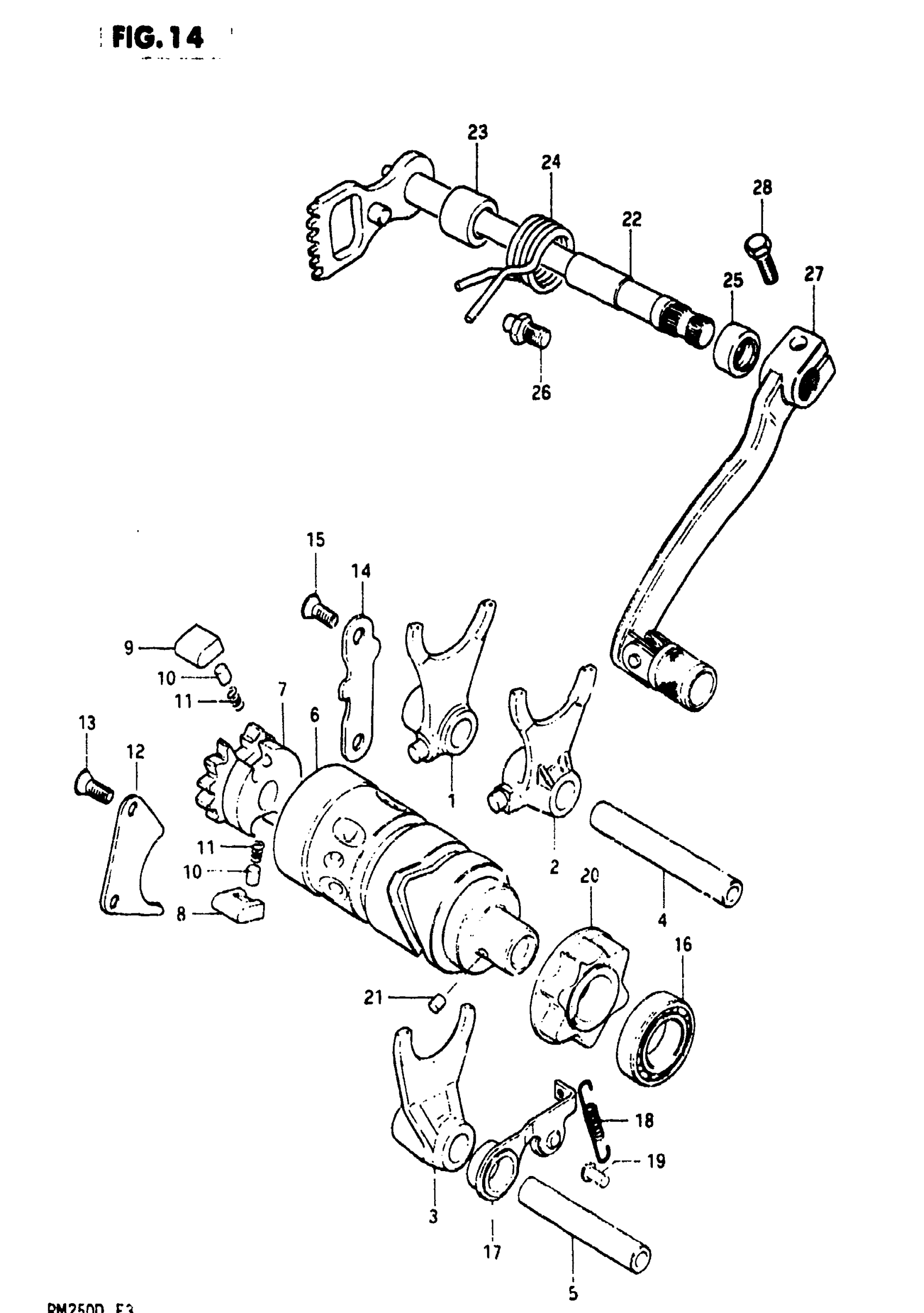

Suzuki RM250 (1983) GEAR SHIFTING (MODEL D) Diagram

#

Description
Price

1

FORK, NO.1 This part replaces 25211-14310.

25211-14311

Unavailable

2

FORK, NO.2 This part replaces 25221-14310.

25221-14311

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 25231-14311.

25231-14X00

Unavailable

4

SHAFT, NO.2 This part replaces 25411-40400.

25411-14331

$26.03

5

SHAFT, FORK (L:70) This part replaces 25421-14320.

25421-14330

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 25310-14310.

25310-14312

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$6.80

10

PIN

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER, PAWL

25331-16500

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.83

14

GUIDE, CAM

25341-14310

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.83

16

BEARING

08113-69030

$30.92

17

STOPPER, CAM This part replaces 25350-14310.

25350-14311

Unavailable

18

SPRING

09443-06049

Unavailable

19

PIN This part replaces 09220-04001.

09223-04001

$1.83

20

PLATE, STOPPER

25381-14310

Unavailable

21

PIN This part replaces 06211-04063.

04221-04069

$2.30

22

NO DESCRIPTION AVAILABLE This part replaces 25510-14300.

25510-143V0

Unavailable

23

SPACER

09180-12068

$2.63

24

SPRING

09444-26013

$2.84

25

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

27

LEVER, GEAR SHIFTING This part replaces 25600-14310.

25600-14321

Unavailable

28

BOLT This part replaces 01517-06258.

01550-06257

$2.31
