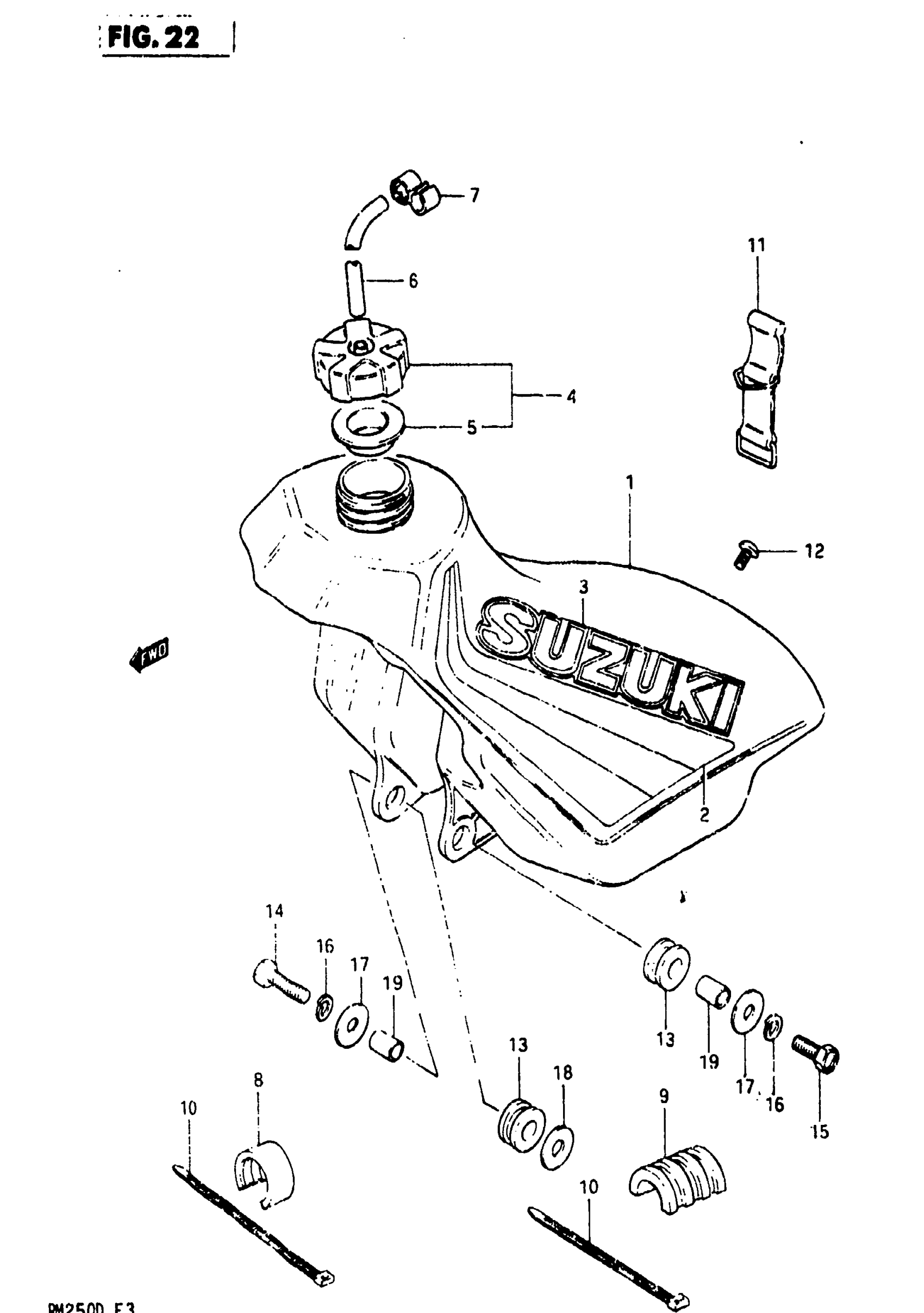

Suzuki RM250 (1983) FUEL TANK (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 44100-14880-163.

44100-14881-163

Unavailable

2

TAPE SET

68110-14300-67H

Unavailable

3

EMBLEM

68111-40210-64D

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-40820.

44200-40822

$14.76

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

CLAMP

44486-40200

$4.88

8

CUSHION, UPPER FRONT

44541-14300

$8.12

9

CUSHION, UPPER REAR

44542-14300

Unavailable

10

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

11

BAND, REAR

44560-41300

Unavailable

12

SCREW This part replaces 09125-06009.

09125-06073

$1.84

13

CUSHION

09320-12030

$2.53

14

BOLT This part replaces 01107-08458.

01500-08453

$2.50

15

BOLT This part replaces 01107-08258.

01500-08257

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER This part replaces 09160-08035.

09160-08130

$2.03

18

WASHER, RH

09160-08032

$2.30

19

SPACER This part replaces 09180-08003.

09180-08191

$2.53
