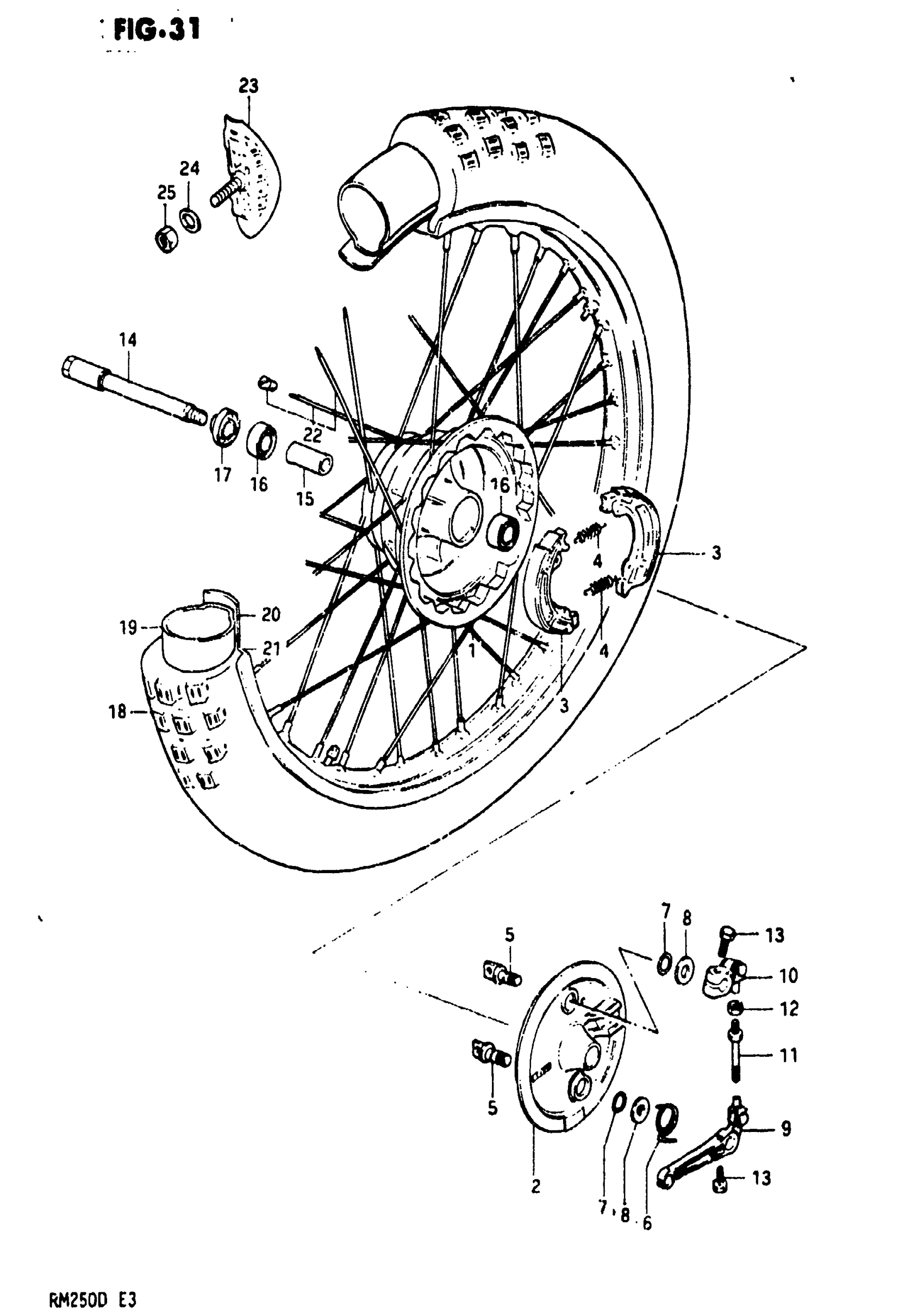

Suzuki RM250 (1983) FRONT WHEEL (MODEL D) Diagram

#

Description
Price

1

HUB, FRONT WHEEL This part replaces 54110-14120.

54110-14121

Unavailable

2

PANEL, FRONT HUB

54210-14300

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-14300.

54400-14840

Unavailable

4

SPRING

09443-09017

Unavailable

5

CAM, BRAKE

54441-14310

Unavailable

6

SPRING

09448-32007

Unavailable

7

DUST SEAL

09280-14008

Unavailable

8

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

9

LEVER ASSY, BRAKE CAM, NO.1

54400-14300

Unavailable

10

LEVER ASSY, BRAKE CAM, NO.2

54500-14300

Unavailable

11

ROD, BRAKE CAM

54471-14300

Unavailable

12

.NUT This part replaces 08310-22068.

08310-00067

$2.13

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

AXLE, FRONT This part replaces 54711-14202.

54711-14500

Unavailable

15

SPACER

54730-14100

Unavailable

16

BEARING, RH

08123-62027

$18.57

17

SPACER, RH

54740-14200

Unavailable

18

TIRE, FRONT (80/100-21) (BRIDGESTONE) (BRIDGESTONE) (BRIDGESTONE) | BS This part replaces 55100-14320.

55110-37E10

Unavailable

18

NO DESCRIPTION AVAILABLE | DUNLOP This part replaces 55100-14340.

55110-36E00

Unavailable

19

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

20

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

21

RIM, WHEEL (1.60-21) This part replaces 55311-14100.

55311-14500

Unavailable

22

SPOKE ASSY

55320-14111

Unavailable

23

STOPPER, BEAD

65270-14300

$52.73

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

NUT This part replaces 08310-22088.

08310-00087

$2.13
