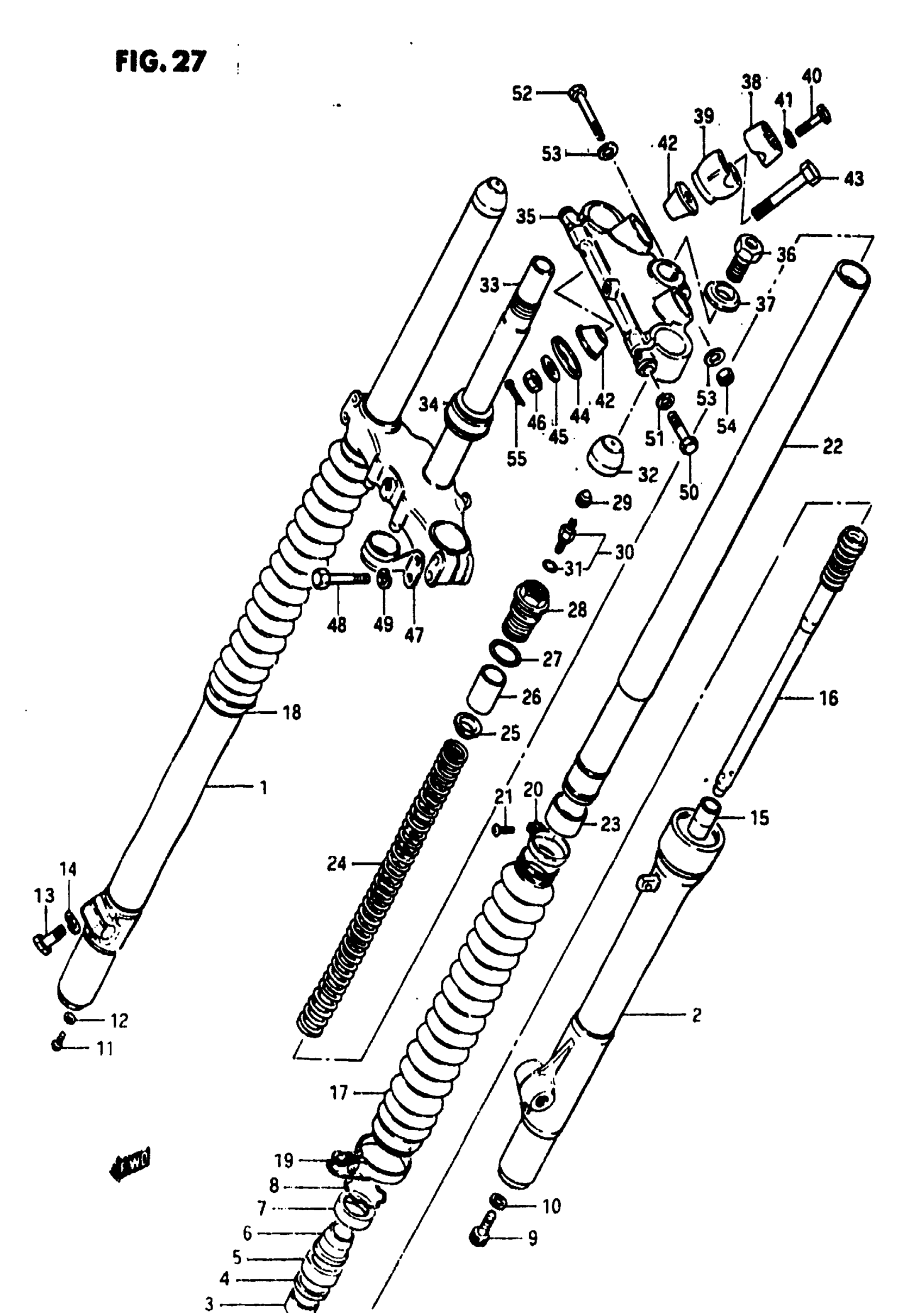

Suzuki RM250 (1983) FRONT FORK (MODEL Z) Diagram

#

Description
Price

0

FRONT FORK ASSY (GOLD) | Includes Item(s) 1 - 54

51100-14300-08C

Unavailable

1

OUTER TUBE, RH

51131-14310

Unavailable

2

OUTER TUBE, LH

51141-14310

Unavailable

3

METAL, SLIDE This part replaces 51167-14100.

51167-13A00

$9.69

4

WASHER

51158-14100

$3.71

5

OIL SEAL

51153-40300

Unavailable

6

DUST SEAL

51173-40301

Unavailable

7

CASE DUST SEAL

51149-40301

Unavailable

8

RING, STOPPER

51156-40301

$5.05

9

BOLT

51147-40300

$5.38

10

GASKET

51148-40300

$2.03

11

SCREW This part replaces 02112-04088.

02112-04087

$1.49

12

GASKET

51183-03010

$2.07

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

PIECE, OIL LOCK

51195-14100

Unavailable

16

CYLINDER

51146-14250

Unavailable

17

BOOT

51571-40300

Unavailable

18

BAND

51573-40300

Unavailable

19

CLIP

51572-40300

Unavailable

20

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

21

SCREW This part replaces 02112-04108.

02112-04107

$1.55

22

INNER TUBE

51110-14250

Unavailable

23

PISTON

51121-14100

$14.76

24

SPRING

51171-14300

Unavailable

25

GUIDE, SPRING

51172-14250

Unavailable

26

SPACER

51176-14120

Unavailable

27

O RING

51117-40300

$3.09

28

CAP

51351-14310

Unavailable

29

CAP

51294-40400

$8.12

30

VALVE, AIR

51169-14200

Unavailable

31

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

32

CAP

51189-41220

Unavailable

33

STEM, STEERING (GOLD)

51410-14310-08C

Unavailable

34

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

35

STEM HEAD, STEERING (GOLD)

51311-14310-08C

Unavailable

36

BOLT

51351-41320

Unavailable

37

WASHER

51356-41310

Unavailable

38

HOLDER, HANDLE UPPER | GOLD

56211-40300-08C

Unavailable

39

HOLDER, HANDLE LOWER | GOLD

56221-40400-08C

Unavailable

40

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

41

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

42

RUBBER

56241-40400

Unavailable

43

BOLT

51321-40400

Unavailable

44

COVER

51721-40400

Unavailable

45

WASHER This part replaces 51356-40400.

09160-10035

$1.78

46

NUT

09159-10027

$3.10

47

CLIP

58621-40301

Unavailable

48

BOLT This part replaces 01107-08458.

01500-08453

$2.50

49

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

50

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

51

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

52

BOLT This part replaces 01107-08508.

01500-08507

$3.05

53

WASHER This part replaces 08322-21088.

08322-01087

$2.13

54

NUT This part replaces 08310-12088.

08310-00087

$2.13

55

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
