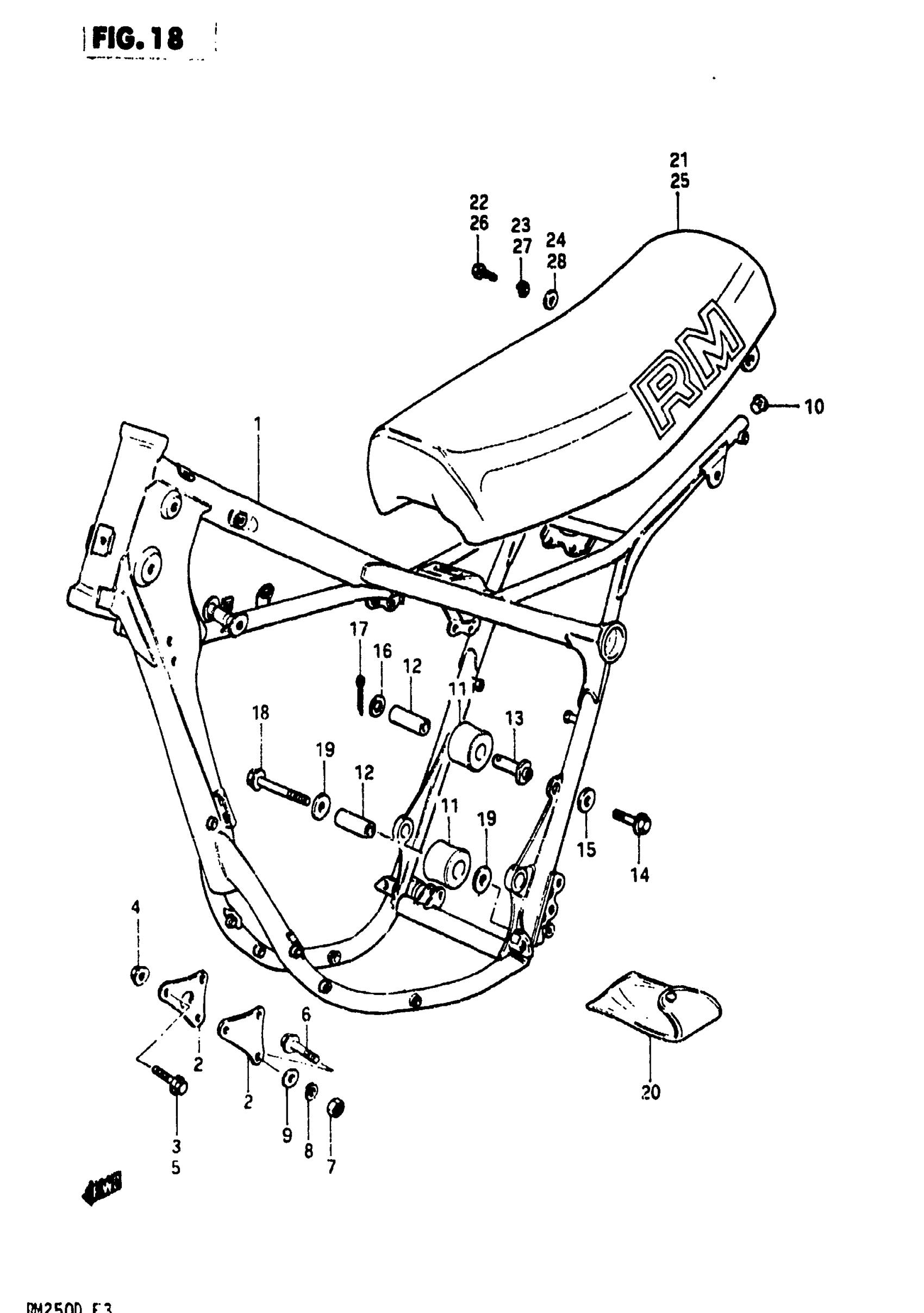

Suzuki RM250 (1983) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL Z

41100-14301-019

Unavailable

1

FRAME (BLACK) | MODEL D

41100-14331-019

Unavailable

2

PLATE, ENGINE MOUNTING

41991-14300

Unavailable

3

.BOLT (8X55) | MODEL Z This part replaces 09103-08027.

09103-08339

$3.49

4

NUT | MODEL Z This part replaces 08319-31088.

08319-3108A

$2.32

5

.BOLT (8X55) This part replaces 09103-08027.

09103-08339

$3.49

6

BOLT (8X57) This part replaces 09103-08103.

09103-08181

Unavailable

7

NUT This part replaces 08310-22088.

08310-00087

$2.13

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

PLUG

09250-14006

$1.99

11

ROLLER, CHAIN CONTROL

43911-14200

Unavailable

12

SPACER, CHAIN ROLLER

43913-40400

Unavailable

13

BOSS, CHAIN ROLLER This part replaces 43915-14300.

43915-14301

Unavailable

14

BOLT This part replaces 01517-06208.

01550-06207

$2.30

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

WASHER This part replaces 08322-11128.

08322-01127

$1.84

17

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

18

BOLT, LOWER

09103-08043

$3.18

19

WASHER This part replaces 09160-08035.

09160-08130

$2.03

20

TOOL SET

09800-00233

Unavailable

21

SEAT (BLUE) | MODEL Z This part replaces 45100-14300-865.

45100-14130-49R

Unavailable

22

PLUG, DRAIN | MODEL Z This part replaces 01107-08168.

01500-0816B

$2.50

23

.LOCK WASHER | MODEL Z This part replaces 08321-31088.

08321-01087

$2.13

24

WASHER | MODEL Z This part replaces 09160-08033.

09160-08126

$2.44

25

SEAT ASSY (BLUE) | MODEL D

45100-14130-49R

Unavailable

26

BOLT, REAR | MODEL D This part replaces 01107-08208.

01500-08207

$2.53

27

.LOCK WASHER | MODEL D This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER | MODEL D This part replaces 09160-08065.

09160-08126

$2.44
