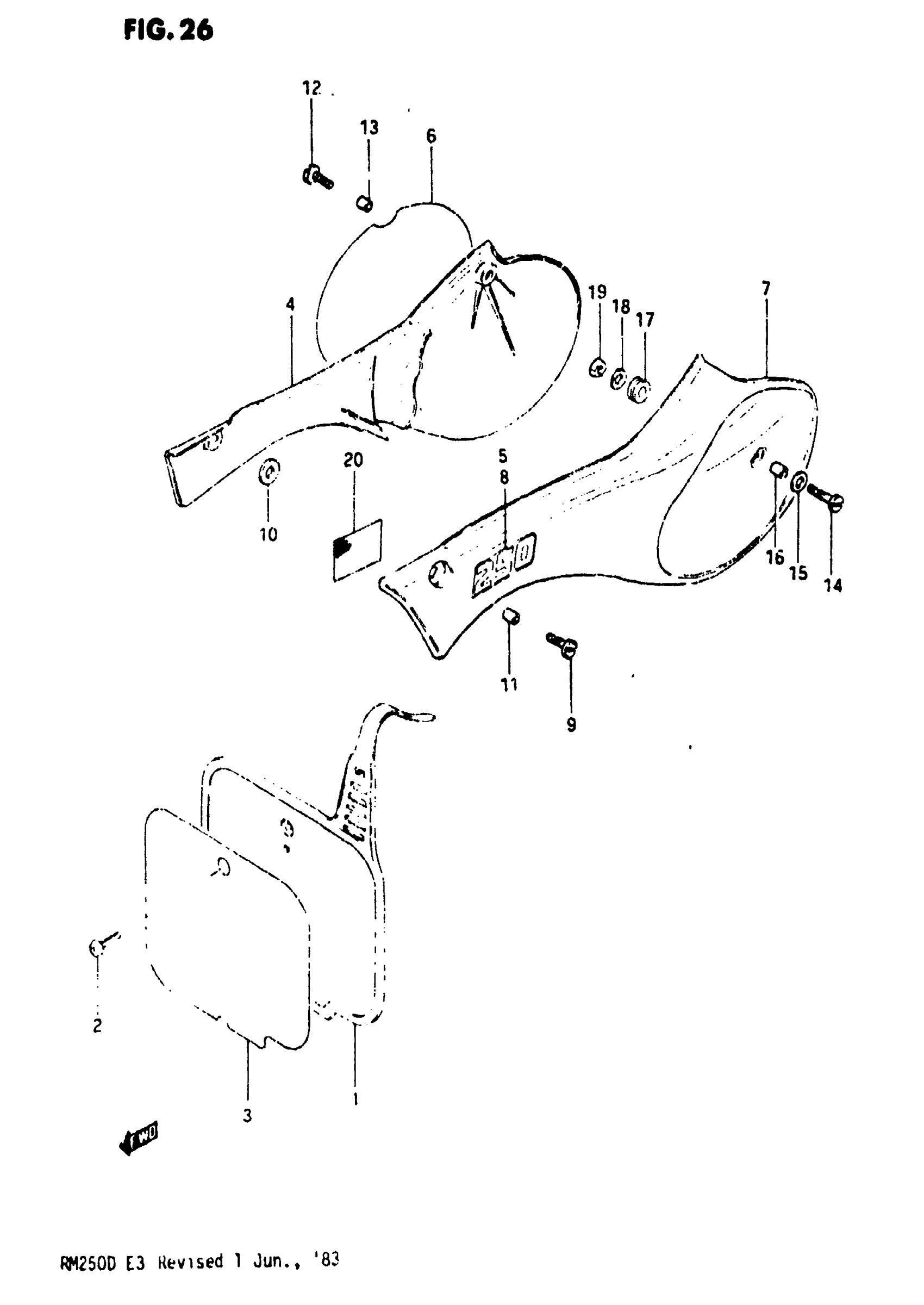

Suzuki RM250 (1983) FRAME COVER (MODEL D) Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) This part replaces 94911-14300.

94911-00B10-25Y

$64.72

2

SCREW

02142-05167

$1.49

3

EMBLEM

68169-14300

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 47111-14120-163.

47111-14120-13L

Unavailable

5

EMBLEM, RH

68131-14310-74H

Unavailable

6

EMBLEM, RH

68132-14300

Unavailable

7

COVER, FRAME LH (YELLOW) This part replaces 47211-14120-81Y.

47211-14120-163

Unavailable

8

EMBLEM, LH

68141-14310-74H

Unavailable

9

SCREW, FRONT

09123-06026

Unavailable

10

WASHER This part replaces 94927-14110.

09160-06084

$1.78

11

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

12

SCREW, REAR

09123-06026

Unavailable

13

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

14

SCREW, REAR LH

09123-06027

Unavailable

15

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

17

CUSHION

09320-08018

$3.04

18

WASHER This part replaces 94927-14110.

09160-06084

$1.78

19

.NUT This part replaces 08310-22068.

08310-00067

$2.13

20

SHIELD,FRM CVR, This part replaces 47122-14201.

47167-28C10

Unavailable
