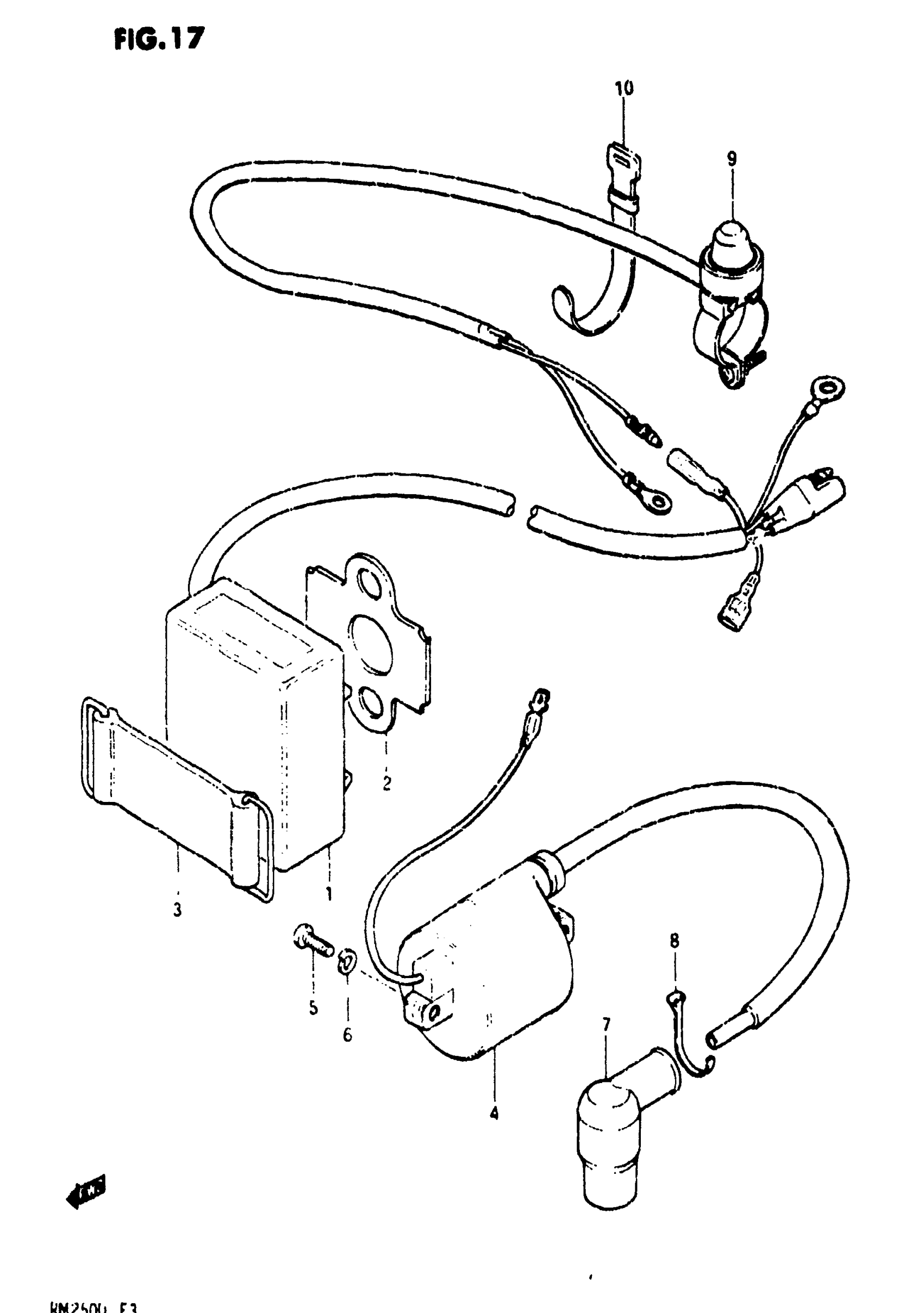

Suzuki RM250 (1983) ELECTRICAL Diagram

#

Description
Price

1

C.D.I. UNIT | MODEL Z

32900-14310

Unavailable

1

C.D.I. UNIT | MODEL D

32900-14320

Unavailable

2

PROTECTOR

32941-14300

Unavailable

3

BAND, CDI UNIT This part replaces 32942-14300.

32942-14301

$11.89

4

COIL ASSY, IGNITION This part replaces 33410-14310.

33410-01X50

$105.37

5

SCREW This part replaces 02112-06208.

02112-06207

$1.78

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

8

BELT

09407-09402

$2.45

9

SWITCH ASSY, ENGINE STOP This part replaces 37820-40400.

37820-14X50

$48.54

10

CLAMP

09407-12402

$3.04
