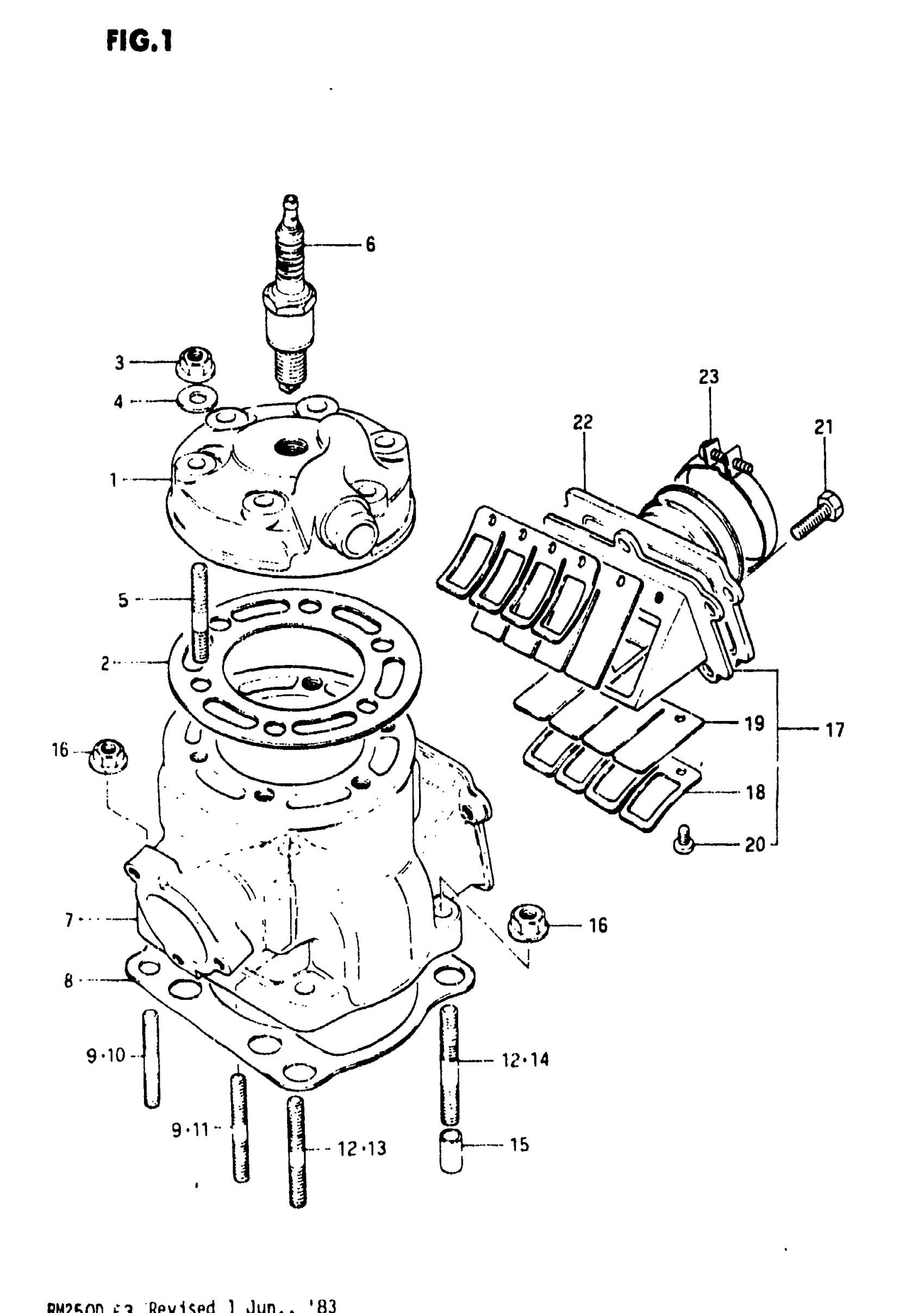

Suzuki RM250 (1983) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | MODEL Z

11111-14300

Unavailable

1

CYLINDER HEAD | MODEL D This part replaces 11111-14310.

11111-14601

Unavailable

2

GASKET,CYL HEAD | MODEL Z This part replaces 11141-14391.

11141-13A60

Unavailable

2

GASKET,CYL HEAD | MODEL D This part replaces 11141-14310.

11141-13A60

Unavailable

3

NUT This part replaces 08316-16085.

08316-1008B

$2.66

4

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

5

STUD BOLT (L:35) | MODEL Z

09108-08102

$3.42

5

BOLT, STUD | MODEL D This part replaces 09108-08105.

09108-08174

Unavailable

6

SPARK PLUG (NGK, B8EGV)

09482-00208

Unavailable

7

CYLINDER | ~E.NO.107126 This part replaces 11210-14301.

11210-14303

Unavailable

7

CYLINDER | E.NO.107127~ This part replaces 11210-14302.

11210-14303

Unavailable

8

GASKET,CYLINDER | MODEL Z This part replaces 11241-14301.

11241-14600-H17

Unavailable

8

GASKET,CYLINDER | MODEL D This part replaces 11241-14302.

11241-14600-H17

Unavailable

9

STUD BOLT (L:30) | ~E.NO.107126 This part replaces 09108-08127.

09108-08142

$3.18

10

STUD BOLT (L:30) | E.NO.107127~

09108-08142

$3.18

11

STUD BOLT (L:35) | E.NO.107127~

09108-08143

$3.78

12

STUD BOLT | ~E.NO.107126 This part replaces 09108-08128.

09108-08144

$3.20

13

STUD BOLT (L:40) | E.NO.107127~

09108-08144

$3.20

14

BOLT, STUD | E.NO.107127~ This part replaces 09108-08145.

09108-08174

Unavailable

15

PIN

04211-11169

$1.78

16

NUT This part replaces 08316-16085.

08316-1008B

$2.66

17

VALVE ASSY, REED | Includes Item(s) 18 - 20 This part replaces 13150-14200.

13150-01C00

Unavailable

18

VALVE ASSY, REED This part replaces 13152-14200.

13150-01C00

Unavailable

19

REED VALVE

13153-14200

Unavailable

20

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

21

BOLT This part replaces 01107-06208.

01500-06207

$2.28

22

PIPE, INTAKE

13110-14300

Unavailable

23

CLAMP This part replaces 09402-56306.

09402-56901

$5.36
