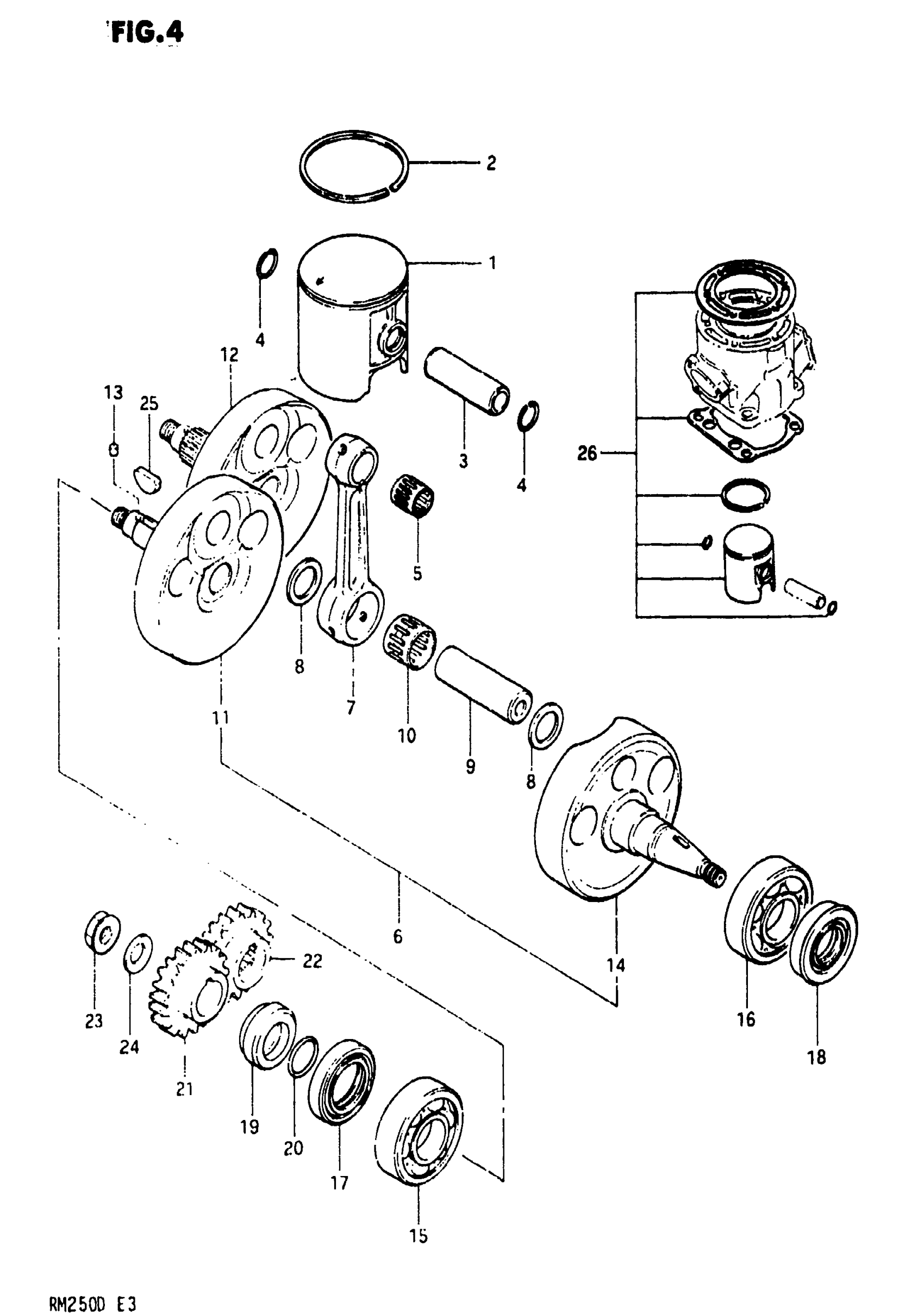

Suzuki RM250 (1983) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) This part replaces 12110-14300.

12110-14301

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14300-025.

12103-14870-025

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14300-050.

12103-14830-050

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 12141-14310.

12141-13A11

Unavailable

2

RING SET, PISTON (OS:0.25) | OPT

12141-14310-025

Unavailable

2

RING PISTON OS: | OPT This part replaces 12141-14310-050.

12141-13A11-050

Unavailable

3

PIN, PISTON This part replaces 12151-15002.

12151-13A00-0A0

$16.02

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN This part replaces 09263-18011.

09263-18016

$19.93

6

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12200-14300.

12200-14302

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 7 - 14 This part replaces 12200-14311.

12200-14312

Unavailable

7

CONNROD This part replaces 12161-14300.

12161-41103

$167.85

8

WASHER

09160-24015

Unavailable

9

PIN, CRANK

12211-14301

Unavailable

10

BEARING This part replaces 09263-24014.

09263-24026

$69.90

11

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12220-14301.

12220-14302

Unavailable

12

CRANKSHAFT, RH | MODEL D

12220-14311

Unavailable

13

PIN This part replaces 06211-03052.

04221-03059

$1.72

14

CRANKSHAFT, LH | MODEL Z This part replaces 12261-14301.

12261-14302

Unavailable

14

CRANKSHAFT, LH | MODEL D

12261-14302

Unavailable

15

BEARING, AXLE SHAFT, LH This part replaces 09262-25047.

09262-25084

$39.10

16

BEARING, LH | MODEL Z This part replaces 09262-30058.

09262-30066

Unavailable

16

BEARING, LH | MODEL D This part replaces 09262-30064.

09262-30066

Unavailable

17

OIL SEAL, RH

09289-36003

Unavailable

18

OIL SEAL, LH

09283-20034

$5.18

19

SPACER

12359-14300

Unavailable

20

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

21

GEAR, PRIMARY DRIVE (NT:22) | MODEL Z

21111-40302

Unavailable

22

GEAR, PRIMARY DRIVE (NT:23) | MODEL D This part replaces 21111-14310.

21111-14321

Unavailable

23

NUT

09159-14012

Unavailable

24

WASHER

09164-14011

$2.45

25

KEY | MODEL Z

08341-31059

$2.48

26

ENGINE TOP END KIT | STD,MODEL Z

12100-14850

Unavailable

26

ENGINE TOP END KIT | OS:0.25, MODEL Z

12100-14850-025

Unavailable

26

ENGINE TOP END KIT | STD, MODEL D

12100-14870

Unavailable

26

ENGINE TOP END KIT | OS:0.25, MODEL D

12100-14870-025

Unavailable
