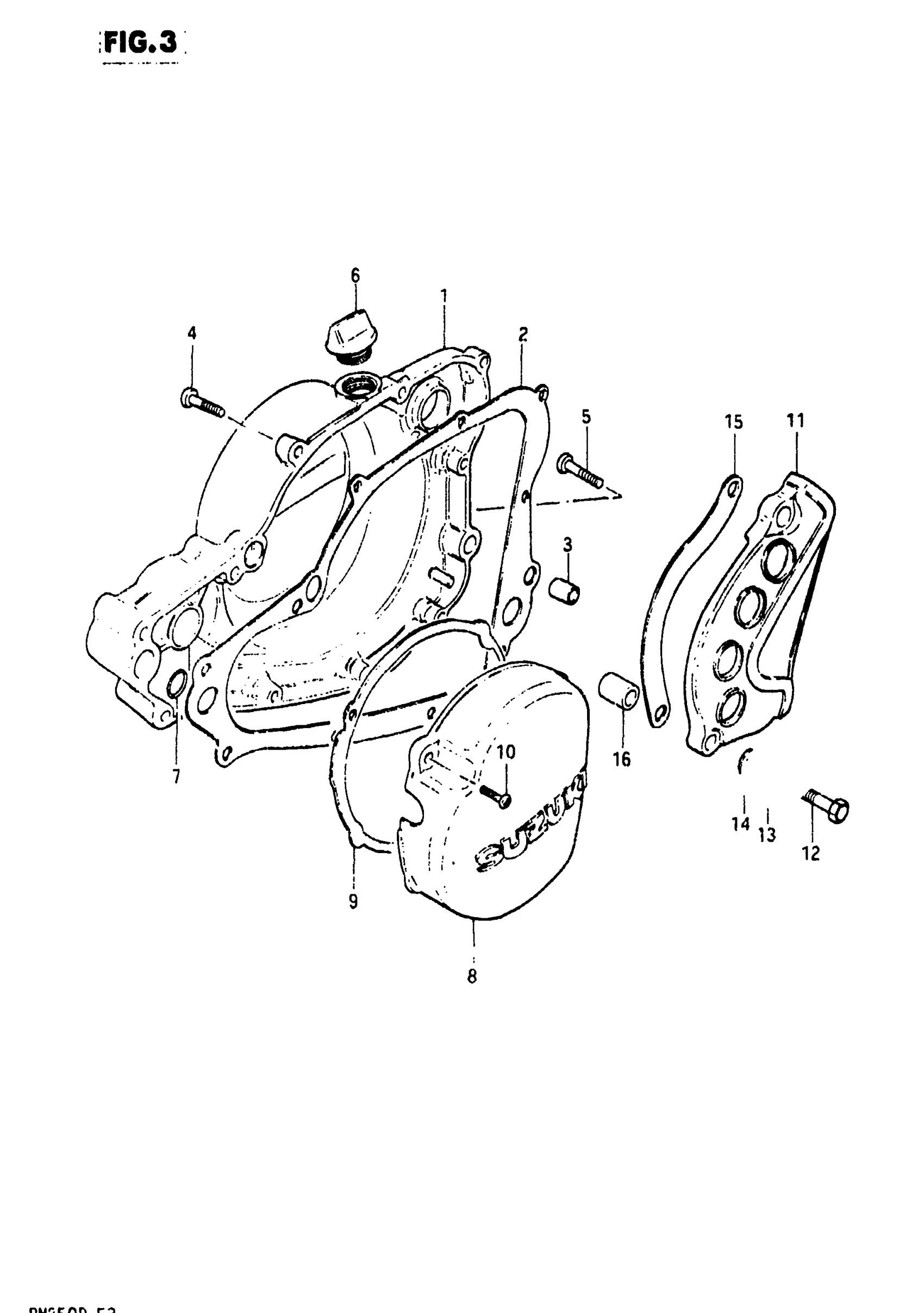

Suzuki RM250 (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-14300

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-14300.

11482-14300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

5

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

6

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

7

O RING

09280-17002

$5.11

8

COVER, MAGNETO This part replaces 11351-14300.

11351-40402

Unavailable

9

GASKET,MAGNETO | MODEL Z This part replaces 11483-14300.

11483-14301-H17

Unavailable

9

GASKET,MAGNETO | MODEL D This part replaces 11483-14301.

11483-14301-H17

Unavailable

10

SCREW This part replaces 02112-05165.

02112-05164

$2.63

11

COVER, SPROCKET

11360-14200

Unavailable

12

BOLT This part replaces 01107-08555.

01500-0855B

$3.49

13

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

14

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

15

PLATE, CHAIN GUIDE | FOR NT:14

27641-40400

Unavailable

15

PLATE, CHAIN GUIDE | FOR NT:13

27641-40300

Unavailable

16

SPACER

09180-08078

Unavailable
