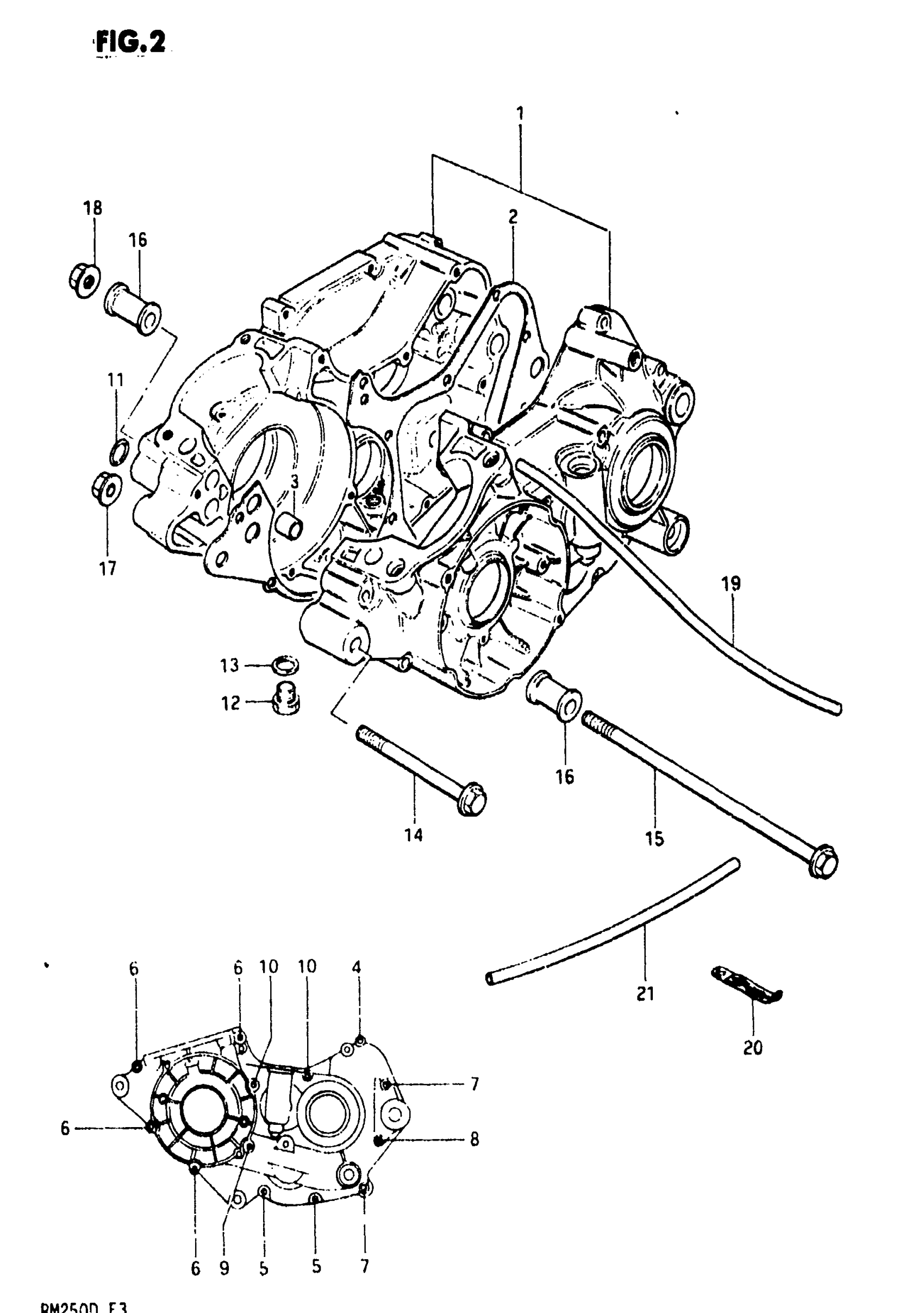

Suzuki RM250 (1983) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL Z

11300-14851

Unavailable

1

CRANKCASE SET | MODEL D; Includes Item(s) 2 - 11 This part replaces 11300-14890.

11300-14892

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-14300.

11481-14300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06308.

02112-06307

$1.97

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

7

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

8

SCREW (6x55)

02112-06557

$2.53

9

SCREW This part replaces 02112-06608.

02112-06607

$2.57

10

SCREW This part replaces 02112-06708.

02112-06707

$2.53

11

O RING

09280-14004

$1.65

12

PLUG (MAGNETO) | MODEL D This part replaces 09247-14001.

09247-14002

$5.24

13

GASKET | MODEL D

09168-14004

$1.83

14

BOLT (8X100)

09103-08070

$5.57

15

BOLT,8X225 This part replaces 09100-08188.

09103-08278

$14.05

16

SPACER, ENGINE MOUNTING (L:28) This part replaces 11611-14230.

11610-14200

Unavailable

17

NUT This part replaces 08319-31088.

08319-3108A

$2.32

18

NUT This part replaces 08319-21088.

08319-2108A

$2.12

19

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

20

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

21

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11
