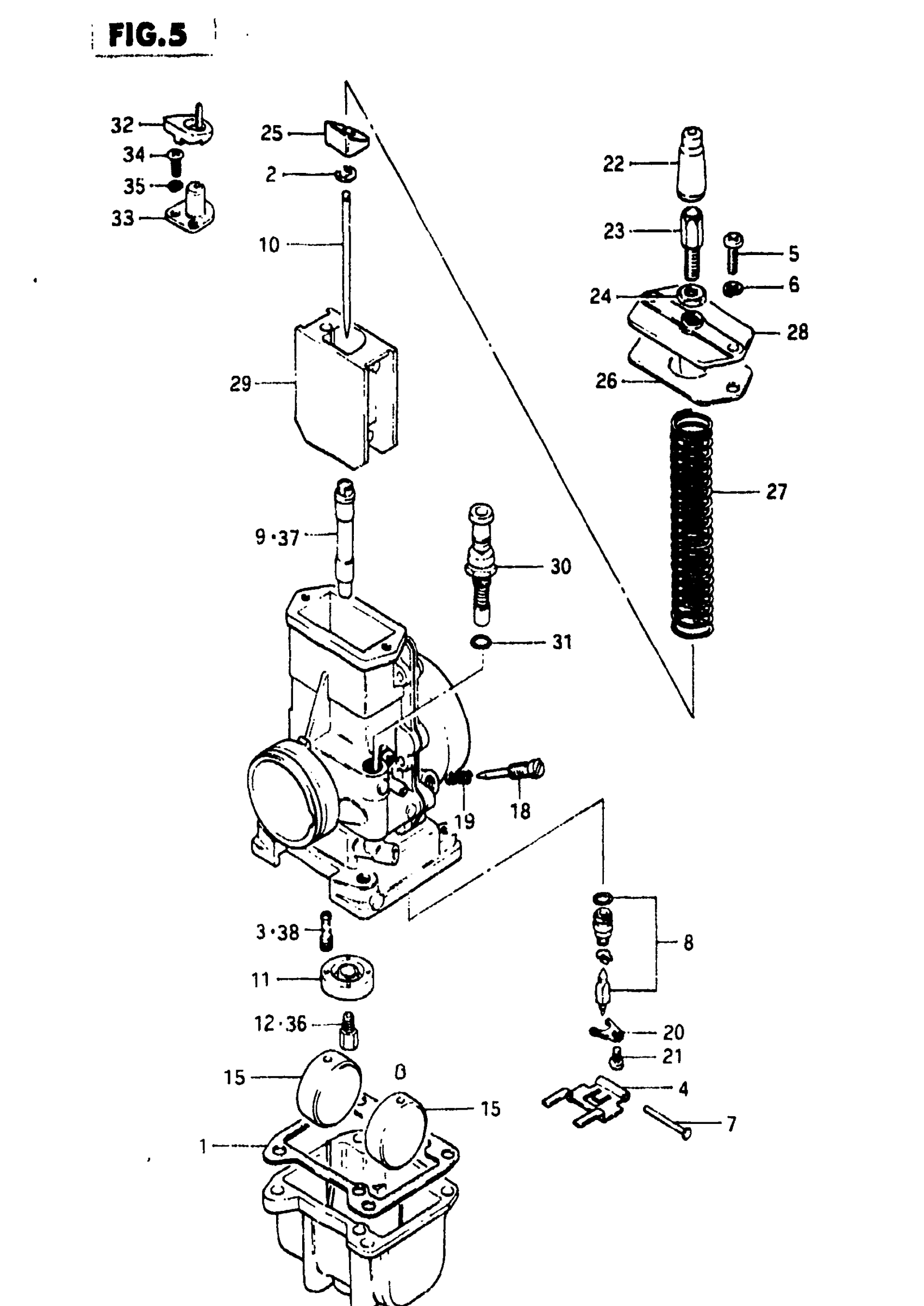

Suzuki RM250 (1983) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | MODEL Z

13200-14300

Unavailable

0

CARBURETOR ASSY | MODEL D; Includes Item(s) 1 - 35

13200-14310

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING

13394-10010

$5.45

3

JET, PILOT (55)

09492-55005

Unavailable

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

PIN

13254-92311

$2.07

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (Q-6) | MODEL Z

09494-00356

Unavailable

9

JET, NEEDLE (Q-8) | MODEL D

09494-00393

Unavailable

10

NEEDLE, JET (6FJ40-2)

13383-14300

Unavailable

11

RING

13331-14300

Unavailable

12

JET, MAIN (290) | MODEL Z This part replaces 09491-58001.

09491-58002

Unavailable

12

JET, MAIN (300) | MODEL D

09491-60007

$13.05

13

CAP, DRAIN

13247-32210

$15.23

14

O RING

13249-41310

$4.40

15

FLOAT

13252-18620

$21.82

16

SCREW This part replaces 02112-05208.

02112-05207

$1.97

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

SCREW, PILOT AIR This part replaces 13269-46010.

13269-95110

$13.35

19

SPRING, AIR SCREW

13268-01010

$5.28

20

PLATE, NEEDLE VALVE

13373-39110

$6.64

21

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

22

CAP, ADJUSTER

13681-33010

$9.32

23

ADJUSTER, CABLE

13577-41612

$7.01

24

NUT

13661-16600

$4.64

25

RING | MODEL Z

13387-14300

Unavailable

26

GASKET, TOP

13266-14300

Unavailable

27

SPRING, THROTTLE VALVE

13573-14300

Unavailable

28

TOP

13261-14300

Unavailable

29

THROTTLE VALVE (CA:4.0)

13551-14300

Unavailable

30

PLUNGER This part replaces 13411-43200.

13400-14500

Unavailable

31

O RING This part replaces 13295-15010.

09280-08014

$1.89

32

RING | MODEL D This part replaces 13387-14310.

13387-14230

Unavailable

33

CONNECTOR | MODEL D

13398-14310

Unavailable

34

SCREW | MODEL D This part replaces 02112-03108.

02112-03107

$1.49

35

WASHER,LOCK | MODEL D This part replaces 08321-21038.

09162-03001

$1.49

36

JET, MAIN (270) | OPT This part replaces 09491-54001.

09491-54002

Unavailable

36

JET, MAIN (280) | OPT This part replaces 09491-56001.

09491-56003

Unavailable

36

JET, MAIN (310) | OPT This part replaces 09491-62001.

09491-62005

$11.83

36

JET, MAIN (320) | OPT This part replaces 09491-64001.

09491-64002

$11.83

36

JET, MAIN (330) | OPT This part replaces 09491-66001.

09491-66002

$11.38

37

JET, NEEDLE (R-0) | OPT

09494-00357

Unavailable

37

JET, NEEDLE (Q-6) | OPT

09494-00356

Unavailable

38

JET, PILOT (50) | OPT

09492-50010

Unavailable

38

JET, PILOT (60) | OPT

09492-60004

Unavailable
