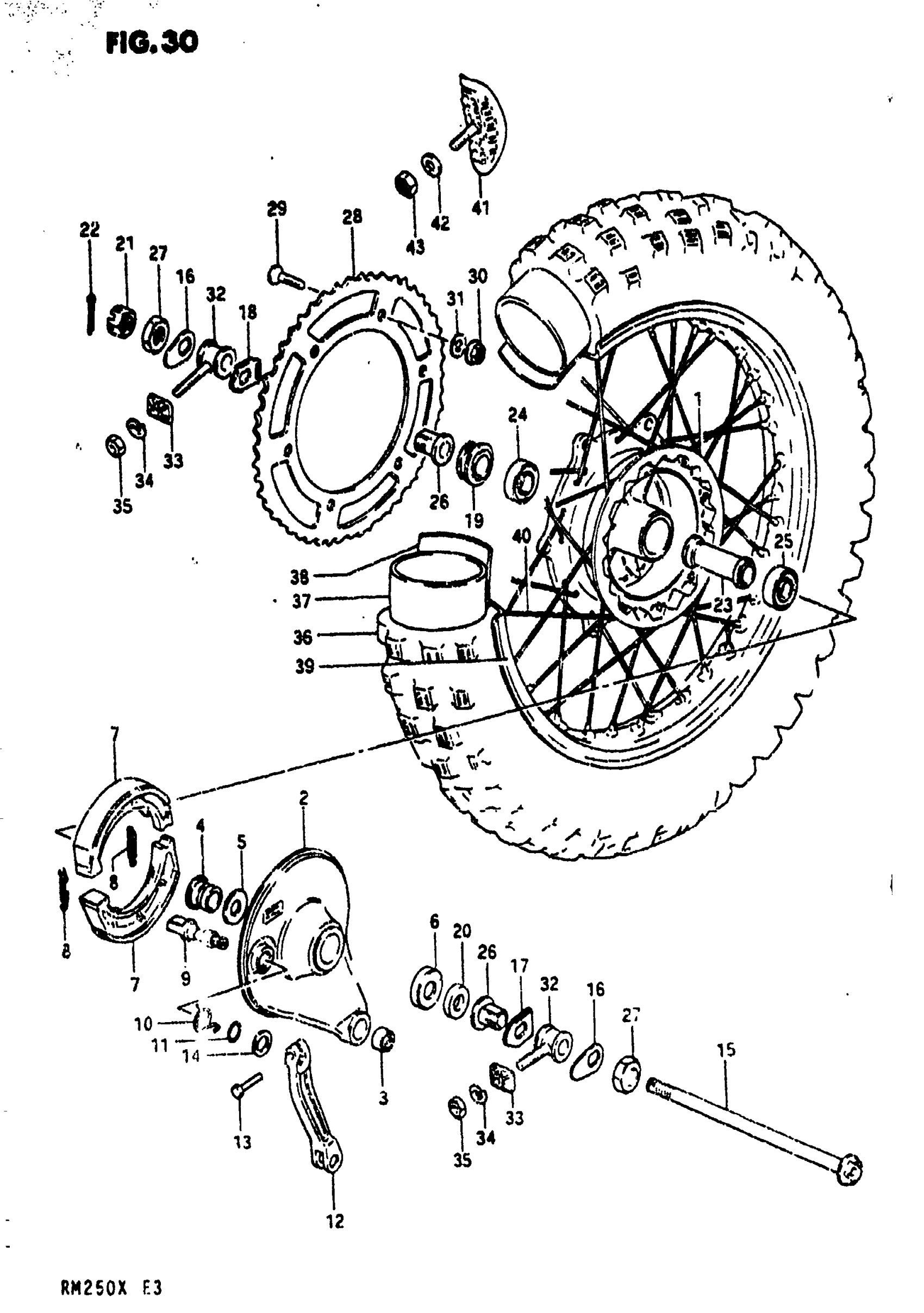

Suzuki RM250 (1981) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64110-14102.

64110-14103

Unavailable

2

PANEL, REAR HUB | Includes Item(s) 3 This part replaces 64200-14811.

64200-14830

Unavailable

3

BEARING

64352-40401

Unavailable

4

SPACER, PANEL

64213-14100

Unavailable

5

DUST SEAL, INNER

09283-20031

$5.24

6

COVER, PANEL DUST SEAL

64845-14100

Unavailable

7

SHOE SET, BRAKE This part replaces 64410-14100.

64400-14820

Unavailable

8

SPRING This part replaces 09443-07001.

09443-07025

$2.08

9

CAM, BRAKE This part replaces 54441-14100.

54441-14101

Unavailable

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

Unavailable

11

DUST SEAL

09280-12001

$2.90

12

LEVER, BRAKE CAM

64451-14100

Unavailable

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

WASHER (12.5X20X1)

09160-12011

$1.54

15

AXLE,REAR This part replaces 64711-14201.

64711-1420V

Unavailable

16

WASHER

64712-14201

Unavailable

17

WASHER, INNER RH

64782-14200

Unavailable

18

PLATE, INNER LH

64792-14200

Unavailable

19

SPACER, AXLE LH

64750-14200

Unavailable

20

SPACER, AXLE RH

64741-14200

Unavailable

21

NUT

09141-14004

$3.91

22

PIN This part replaces 04111-30308.

04111-3030A

$1.49

23

SPACER, HUB BEARING This part replaces 64730-14100.

64730-14101

Unavailable

24

BEARING, LH

08123-62027

$18.57

25

BEARING, RH

08143-62027

$16.01

26

SPACER, CHAIN ADJUSTER

64781-14201

Unavailable

27

NUT

09140-22006

Unavailable

28

SPROCKET,RR (NT:50) This part replaces 64511-40271.

64511-36E00

$126.60

29

SCREW

09120-08004

$2.40

30

NUT This part replaces 08319-31088.

08319-3108A

$2.32

31

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

32

ADJUSTER, CHAIN

61410-14220

Unavailable

33

PLATE

61421-14220

Unavailable

34

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

35

NUT This part replaces 08310-11108.

08310-00107

$2.19

36

TIRE (510-18) | B5

65100-14230

Unavailable

36

TIRE (510-18) | DUNLOP

65100-14250

Unavailable

37

TUBE, WHEEL INNER

65200-40430

Unavailable

38

IN TUBE PROTECT This part replaces 65261-15030.

55261-26F10

$4.39

39

RIM, WHEEL (215X18) This part replaces 65311-14211.

65311-14600

Unavailable

40

SPOKE ASSY, REAR This part replaces 65320-14220.

65320-14112

Unavailable

41

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

42

WASHER This part replaces 08322-11088.

08322-01087

$2.13

43

.NUT This part replaces 08310-12068.

08310-00067

$2.13
