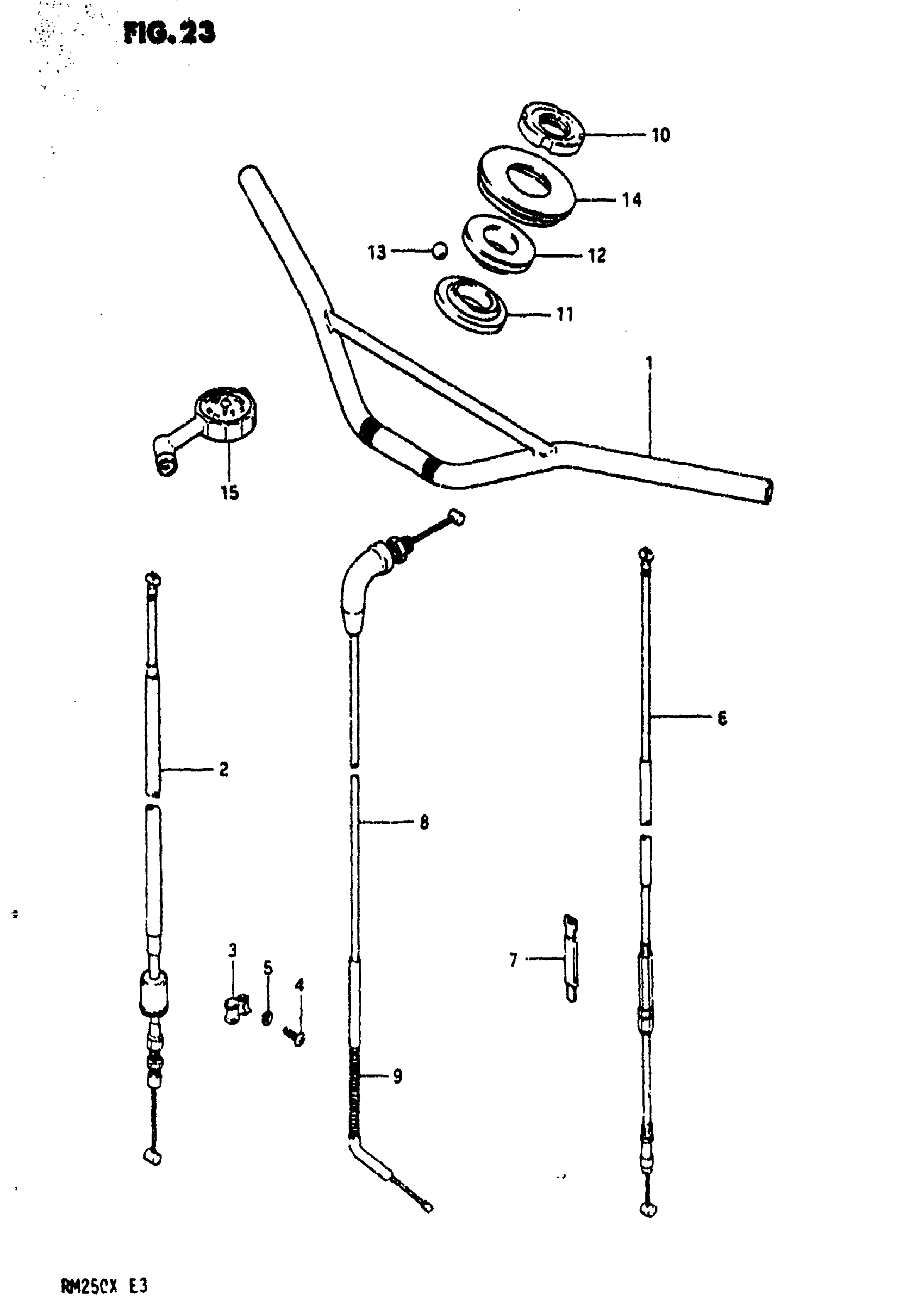

Suzuki RM250 (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (GOLD)

56110-14211-08C

Unavailable

2

CABLE ASSY, FRONT BRAKE This part replaces 58100-14201.

58100-14202

Unavailable

3

CLAMP This part replaces 58620-14201.

58620-40401

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CABLE ASSY, CLUTCH

58200-14201

Unavailable

7

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

8

NO DESCRIPTION AVAILABLE This part replaces 58300-14201.

58300-14X06

Unavailable

9

PROTECTOR

58399-27100

$3.78

10

NUT, STEERING STEM

51631-40200

Unavailable

11

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

12

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

13

STEEL BALL

06111-08003

$1.49

14

DUST SEAL, UPPER

51643-40200

$7.96

15

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
