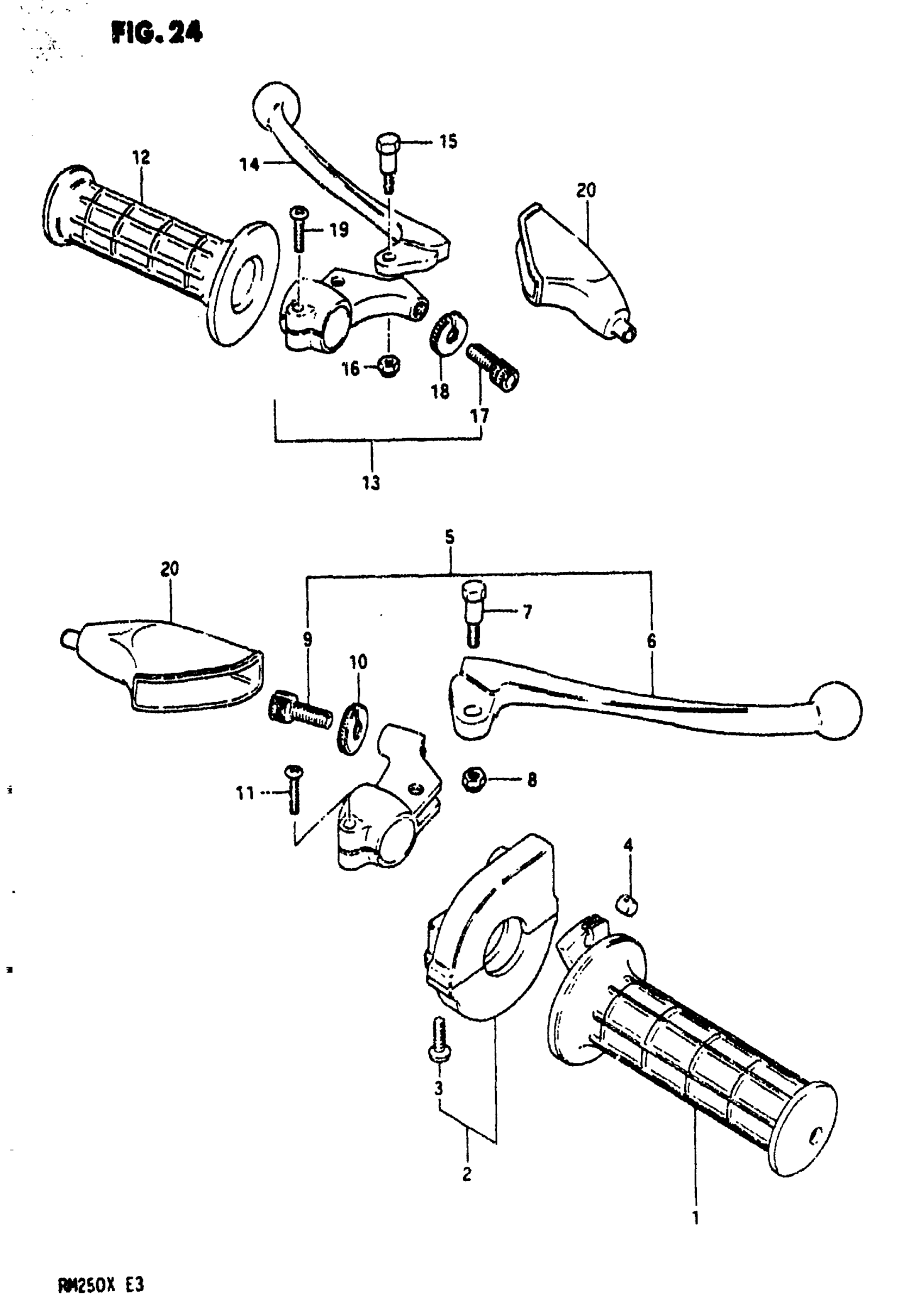

Suzuki RM250 (1981) HANDLE GRIP - LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-40200

Unavailable

2

CASE ASSY, THROTTLE | Includes Item(s) 3

57100-40240

Unavailable

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

PIECE, THROTTLE END

58631-07010

$3.56

5

LEVER ASSY, BRAKE | Includes Item(s) 6 - 11

57300-14200

Unavailable

6

LEVER, BRAKE

57420-29400

Unavailable

7

BOLT This part replaces 57431-11011.

57431-11013

$6.31

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

ADJUSTER, CABLE

57441-14200

$12.48

10

NUT

57442-14200

$6.72

11

SCREW This part replaces 02112-06208.

02112-06207

$1.78

12

GRIP LH This part replaces 57211-40200.

57211-27C00

$12.28

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 19

57500-14200

Unavailable

14

LEVER, CLUTCH This part replaces 57620-45020.

57620-45010

Unavailable

15

BOLT This part replaces 57431-11011.

57431-11013

$6.31

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

ADJUSTER, CABLE

57441-14210

$8.44

18

NUT

57442-14200

$6.72

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56
