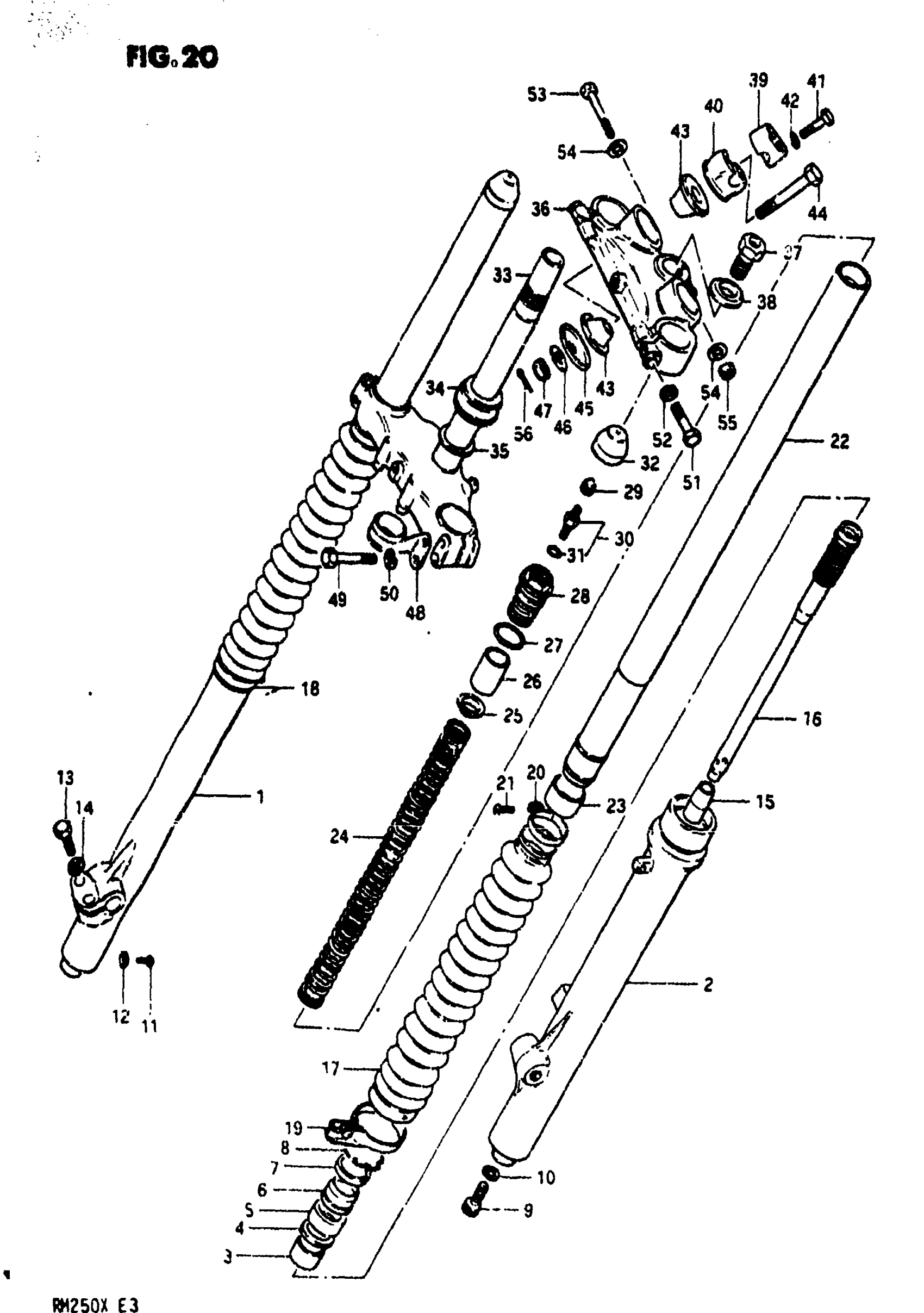

Suzuki RM250 (1981) FRONT FORK Diagram

#

Description
Price

0

FRONT FORK ASSY | NIL REF. NO.56; Includes Item(s) 1 - 44

51100-14250-08C

Unavailable

1

OUTER TUBE, RH

51131-14230

Unavailable

2

OUTER TUBE, LH

51141-14230

Unavailable

3

METAL, SLIDE This part replaces 51167-14100.

51167-13A00

$9.69

4

WASHER

51158-14100

$3.71

5

OIL SEAL

51153-40300

Unavailable

6

DUST SEAL

51173-40301

Unavailable

7

CASE, DUST SEAL

51149-40301

Unavailable

8

RING, STOPPER

51156-40301

$5.05

9

BOLT

51147-40300

$5.38

10

GASKET

51148-40300

$2.03

11

SCREW This part replaces 02112-04088.

02112-04087

$1.49

12

GASKET

51183-03010

$2.07

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

PIECE, OIL LOCK

51195-14100

Unavailable

16

CYLINDER | ~F. NO. 101073

51146-14100

Unavailable

16

CYLINDER | F. NO. 101074~

51146-14250

Unavailable

17

BOOT

51571-40300

Unavailable

18

BAND

51573-40300

Unavailable

19

CLIP

51572-40300

Unavailable

20

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

21

SCREW This part replaces 02112-04108.

02112-04107

$1.55

22

INNER TUBE (38x32) | ~F. NO. 101073

51110-14100

Unavailable

22

INNER TUBE (38x31) | F. NO. 101074~

51110-14250

Unavailable

23

PISTON

51121-14100

$14.76

24

SPRING | ~F. NO. 101073

51171-14100

Unavailable

24

SPRING | F. NO. 101074~

51171-14250

Unavailable

25

GUIDE, SPRING | ~F. NO. 101073

51172-40300

$6.48

25

GUIDE, SPRING | F. NO. 101074~

51172-14250

Unavailable

26

SPACER | ~F. NO. 101073

51176-14100

Unavailable

26

SPACER | F. NO. 101074~

51176-14250

Unavailable

27

O RING

51117-40300

$3.09

28

CAP

51351-40300

Unavailable

29

CAP

51294-40400

$8.12

30

VALVE, AIR

51293-49001

Unavailable

31

O RING

51117-41211

Unavailable

32

CAP

51189-41220

Unavailable

33

STEM, STEERING (GOLD) This part replaces 51410-14100-08C.

51410-14310-08C

Unavailable

34

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

35

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

36

STEM HEAD, STEERING

51311-40400-08C

Unavailable

37

BOLT

51351-41320

Unavailable

38

WASHER

51356-41310

Unavailable

39

HOLDER, HANDLE UPPER

56211-40300-08C

Unavailable

40

HOLDER, HANDLE LOWER

56221-40400-08C

Unavailable

41

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

42

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

43

RUBBER

56241-40400

Unavailable

44

BOLT

51321-40400

Unavailable

45

COVER | Includes Item(s) 46 - 55

51721-40400

Unavailable

46

WASHER This part replaces 51356-40400.

09160-10035

$1.78

47

NUT This part replaces 08319-21108.

09159-10027

$3.10

48

CLIP

58621-40301

Unavailable

49

BOLT This part replaces 01107-08458.

01500-08453

$2.50

50

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

51

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

52

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

53

BOLT This part replaces 01107-08508.

01500-08507

$3.05

54

WASHER This part replaces 08322-21088.

08322-01087

$2.13

55

NUT This part replaces 08310-12088.

08310-00087

$2.13

56

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
