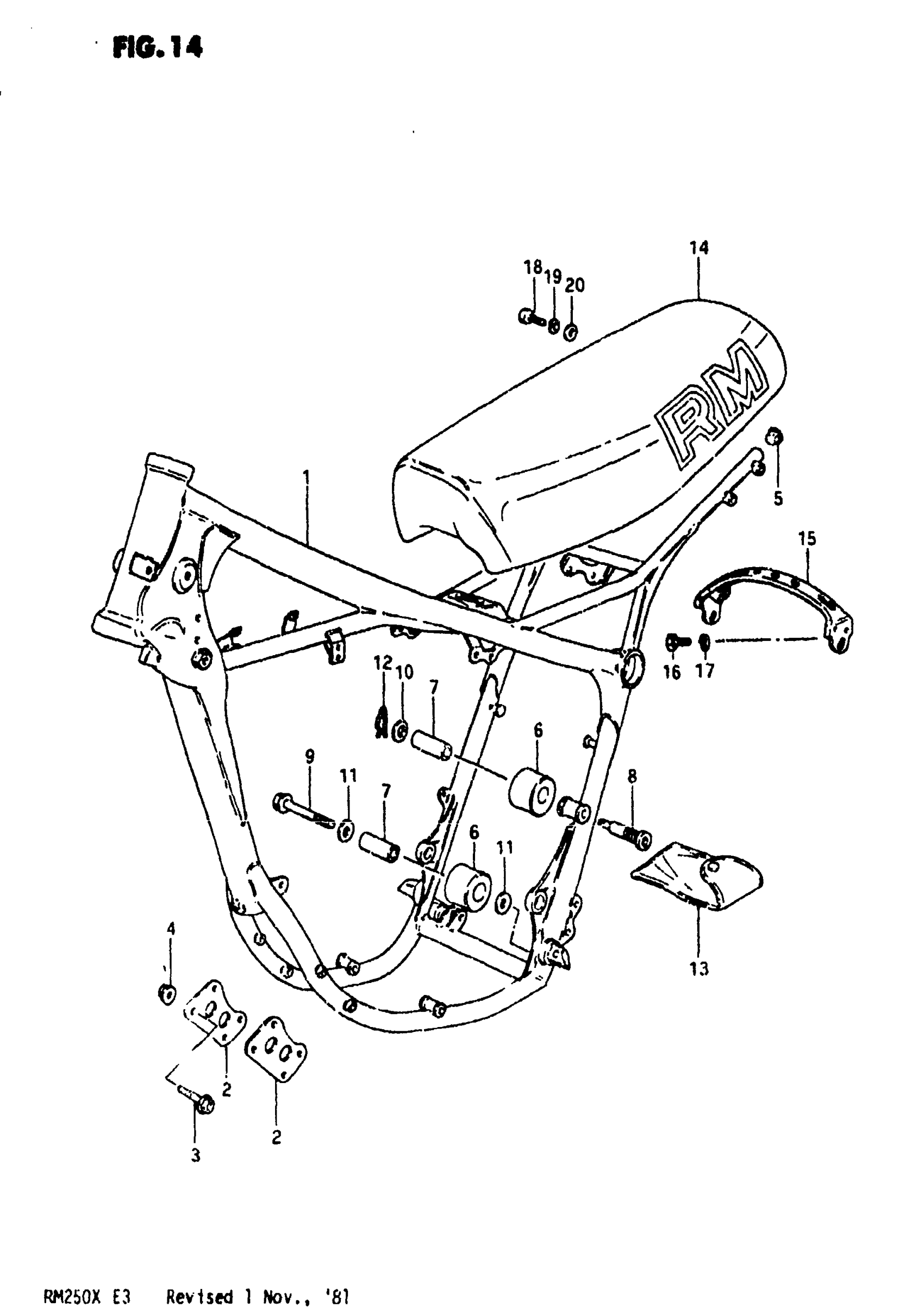

Suzuki RM250 (1981) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLACK)

41100-14201-019

Unavailable

2

PLATE, ENGINE MOUNTING

41991-14201

Unavailable

3

BOLT This part replaces 09103-08056.

09103-08063

Unavailable

4

NUT This part replaces 08319-31088.

08319-3108A

$2.32

5

PLUG

09250-14006

$1.99

6

ROLLER, CHAIN CONTROLE

43911-14200

Unavailable

7

SPACER, CHAIN ROLLER

43913-40400

Unavailable

8

BOLT, UPPER

43915-14101

Unavailable

9

BOLT, LOWER

09103-08043

$3.18

10

WASHER

08212-10223

$2.07

11

WASHER This part replaces 09160-08035.

09160-08130

$2.03

12

CLIP This part replaces 09385-10001.

09385-10005

$1.56

13

TOOL SET

09800-00233

Unavailable

14

SEAT (BLUE) | Includes Item(s) 15 - 17 This part replaces 45100-14101-865.

45100-14130-49R

Unavailable

15

PLAT, REAR

45530-14100

Unavailable

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49
