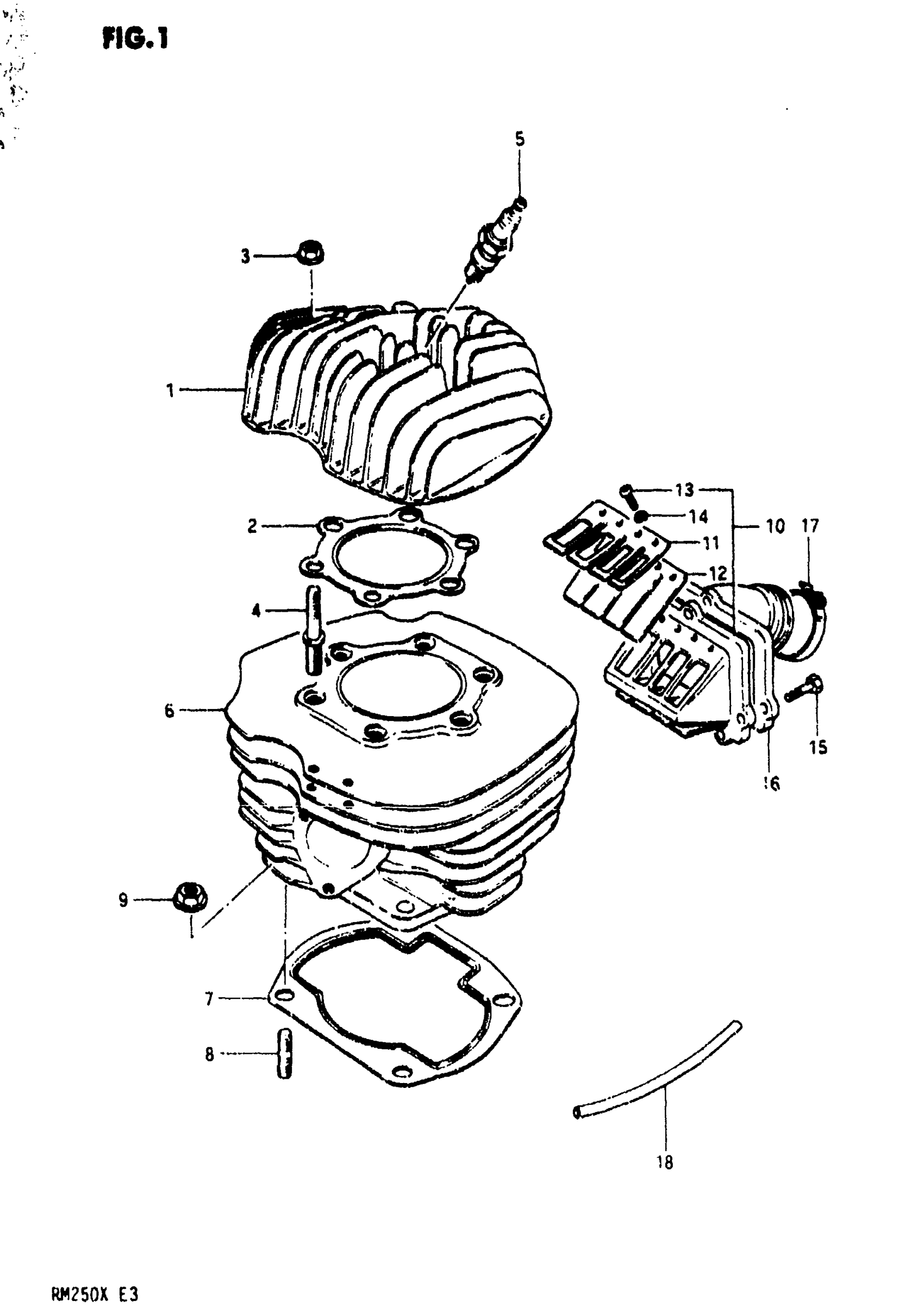

Suzuki RM250 (1981) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-14202

Unavailable

2

GASKET (T:1.0)

11141-14202

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT

09108-08086

Unavailable

5

SPARK PLUG BR9E | NGK This part replaces 09482-00209.

09482-00349

$7.22

5

SPARK PLUG (N-2G) | CHAMPION

09482-00213

Unavailable

6

CYLINDER

11210-14202

Unavailable

7

GASKET

11241-14201

Unavailable

8

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

9

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

10

VALVE ASSY, REED | Includes Item(s) 11 - 14 This part replaces 13150-14200.

13150-01C00

Unavailable

11

VALVE ASSY, REED This part replaces 13152-14200.

13150-01C00

Unavailable

12

REED VALVE

13153-14200

Unavailable

13

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

BOLT This part replaces 01107-06208.

01500-06207

$2.28

16

PIPE, INTAKE

13110-14200

Unavailable

17

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

18

HOSE 4X7X600 This part replaces 09343-04010.

09352-40706-600

$5.11

18

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11
