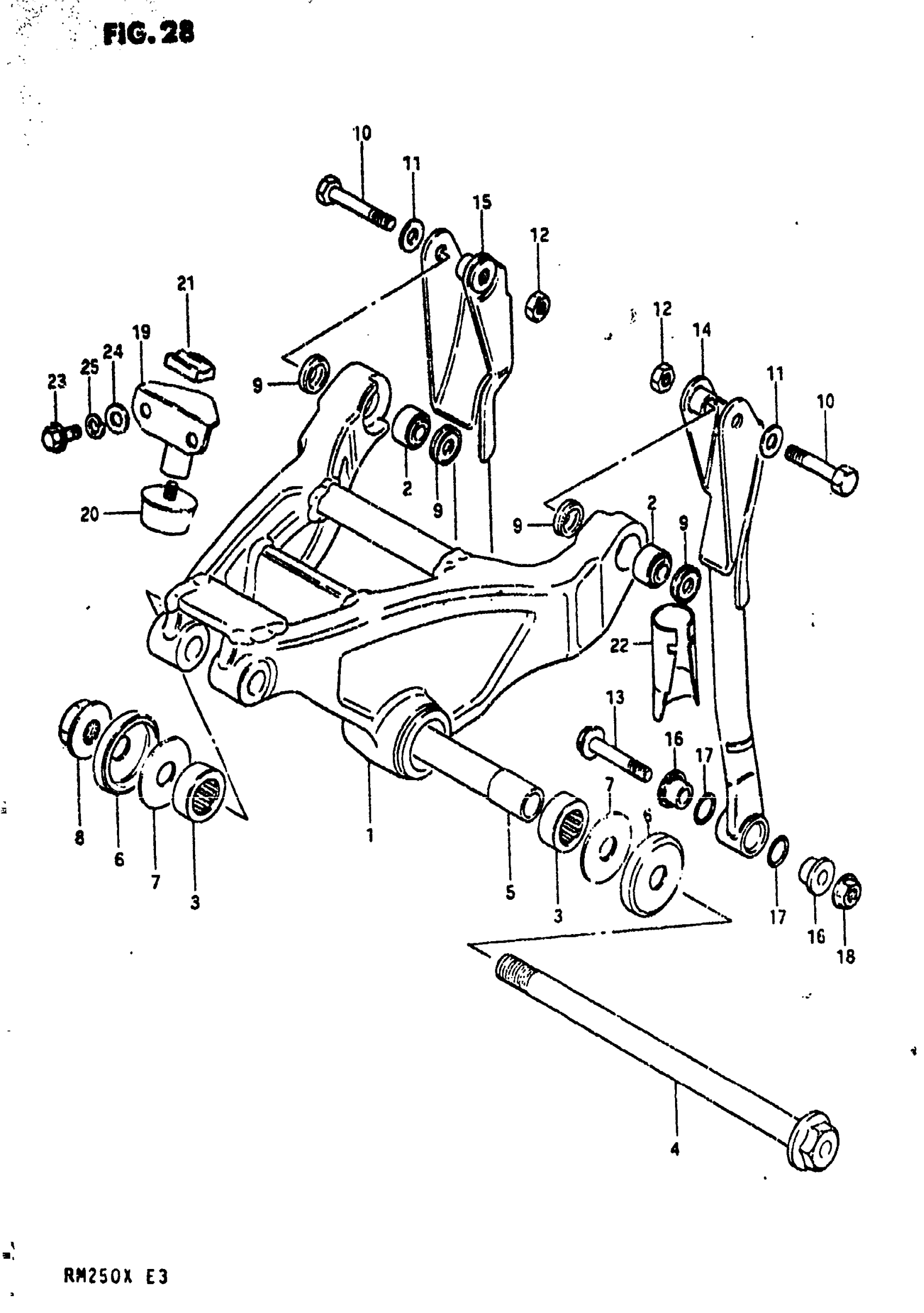

Suzuki RM250 (1981) CUSHION LEVER Diagram

#

Description
Price

1

LEVER, CUSHION | Includes Item(s) 2 - 3 This part replaces 62600-14811.

62600-14812

Unavailable

2

BEARING

09269-08001

Unavailable

3

BEARING

09263-17019

Unavailable

4

SHAFT This part replaces 62621-14104.

62621-14105

Unavailable

5

SPACER, RR CUSH This part replaces 62623-14203.

62623-16700

Unavailable

6

DUST SEAL This part replaces 62624-14201.

62624-14202

Unavailable

7

THRUST WASHER

09160-12045

$4.11

8

NUT This part replaces 08319-31126.

08319-3112A

$3.76

9

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

10

BOLT This part replaces 09100-08173.

09103-08178

$4.69

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

NUT This part replaces 08310-11088.

08310-00087

$2.13

13

BOLT, LOWER

09103-08043

$3.18

14

ROD, CUSHION LEVER, LH

62640-14204

Unavailable

15

ROD, CUSHION LEVER, RH

62650-14204

Unavailable

16

SPACER, LOWER

62316-14100

Unavailable

17

DUST SEAL

09280-13004

$2.17

18

NUT This part replaces 08319-21088.

08319-2108A

$2.12

19

STOPPER, TENSION

62660-14103

Unavailable

20

RUBBER, TENSION STOPPER This part replaces 62666-14100.

62666-14101

Unavailable

21

SUPPORTER, RUBBER

62669-14200

Unavailable

22

PROTECTOR, CUSHION ROD LH

62681-14100

Unavailable

23

BOLT This part replaces 01107-06128.

01500-06127

$1.97

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
