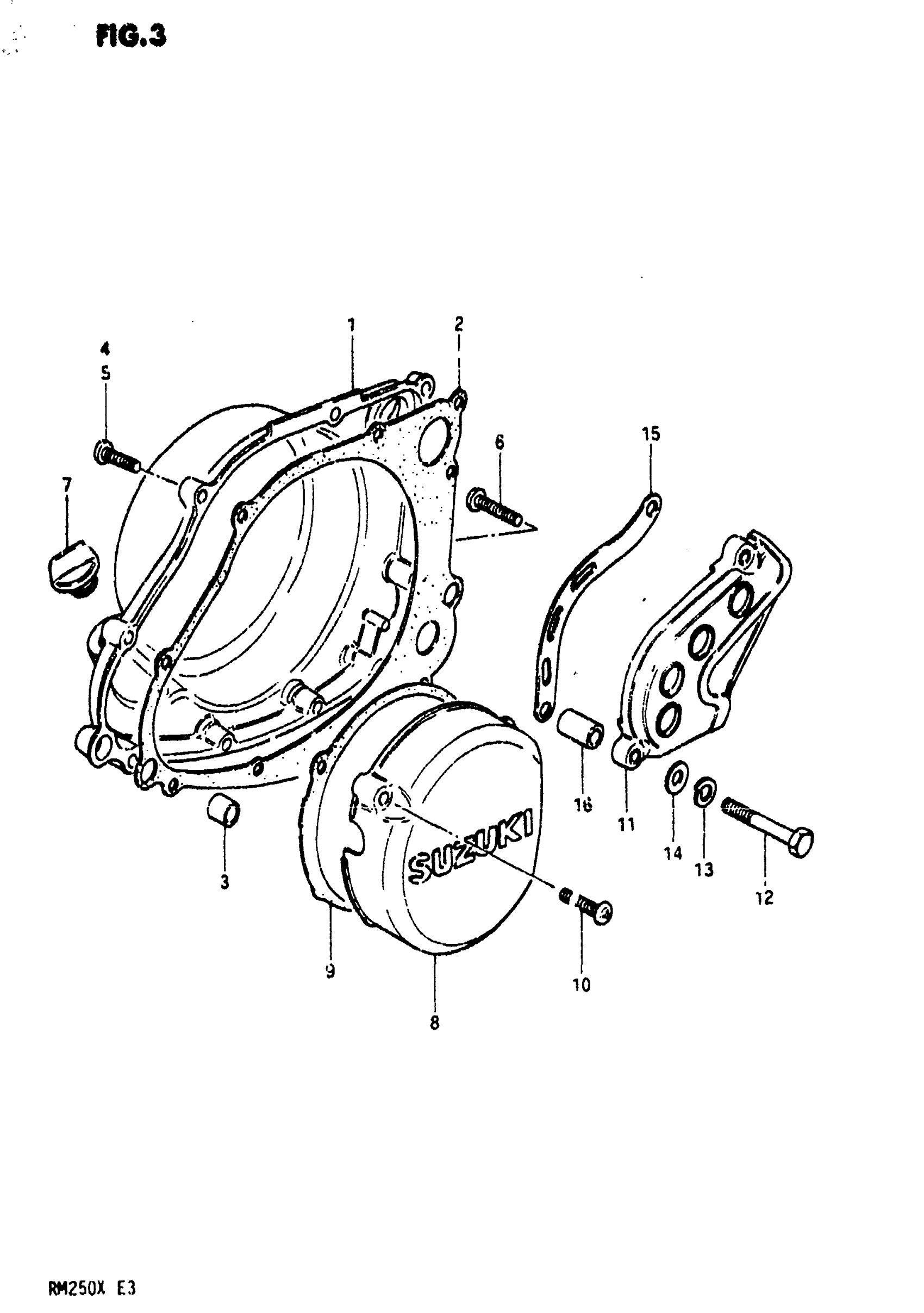

Suzuki RM250 (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-40300

Unavailable

2

GASKET CLUTCH C This part replaces 11482-40300.

11482-40300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW This part replaces 02112-06308.

02112-06307

$1.97

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

7

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

8

COVER, MAGNETO

11351-40402

Unavailable

9

GASKET,MAGNETO This part replaces 11483-41311.

11483-41312-H17

Unavailable

10

SCREW This part replaces 02112-06208.

02112-06207

$1.78

11

COVER, ENGINE SPROCKET

11360-14200

Unavailable

12

BOLT This part replaces 01107-08558.

01500-08557

$3.16

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

PLATE, CHAIN GUIDE (FOR 14T)

27641-40400

Unavailable

15

PLATE, CHAIN GUIDE (FOR 13T) | OPT

27641-40300

Unavailable

16

SPACER

09180-08078

Unavailable
