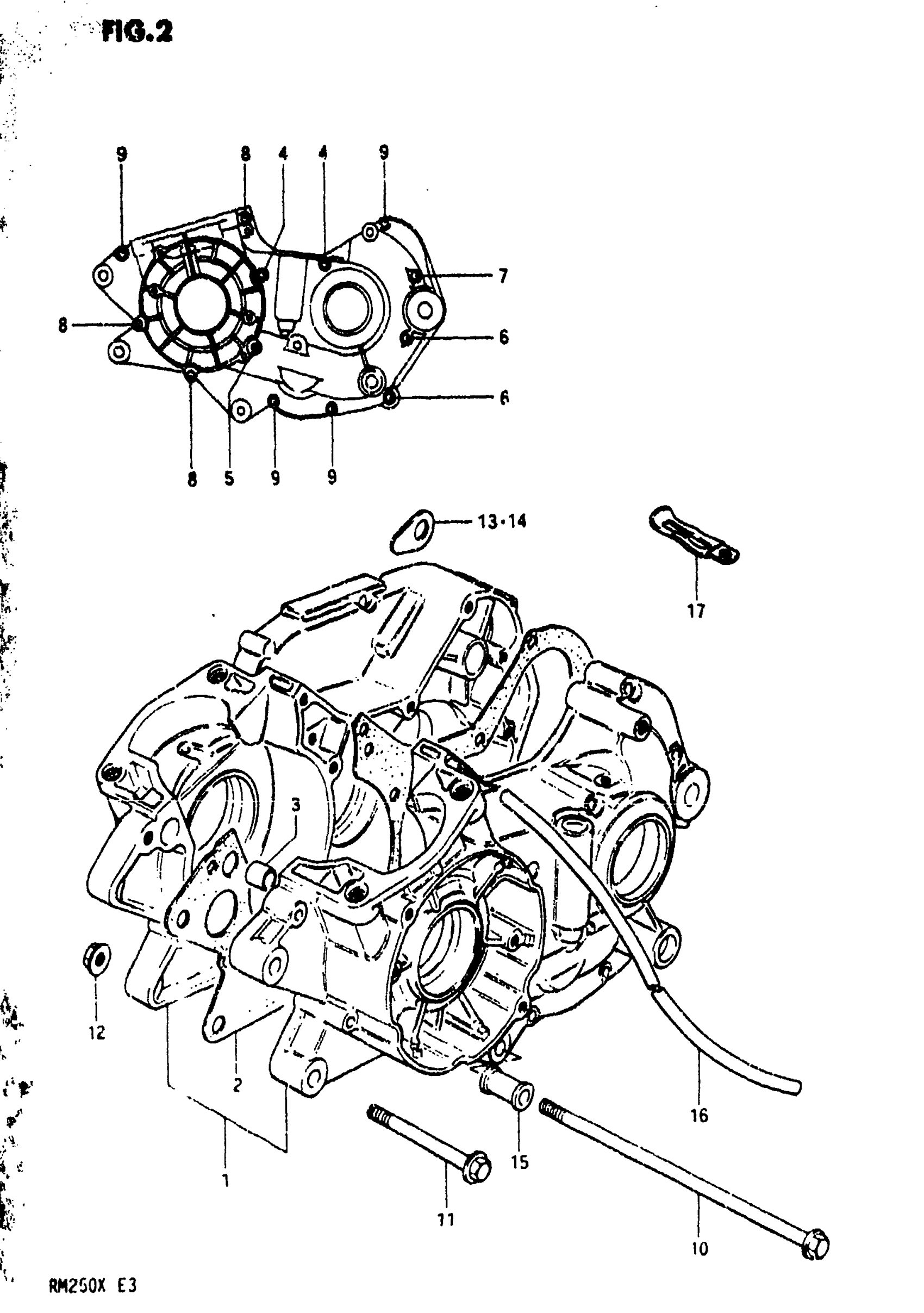

Suzuki RM250 (1981) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 11300-14830.

11300-14831

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11481-14200.

11481-14200-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06708.

02112-06707

$2.53

5

SCREW This part replaces 02112-06608.

02112-06607

$2.57

6

SCREW (6x55)

02112-06557

$2.53

7

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

8

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

9

SCREW This part replaces 02112-06358.

02112-06357

$1.78

10

NO DESCRIPTION AVAILABLE This part replaces 09103-08064.

09103-08087

Unavailable

11

BOLT (8x75)

09103-08063

Unavailable

12

NUT This part replaces 08319-31088.

08319-3108A

$2.32

13

WASHER | (0~2)

09169-10011

Unavailable

14

WASHER | (0~2)

09169-10012

Unavailable

15

SPACER, ENGINE MOUNTING (L:28) This part replaces 11611-14230.

11610-14200

Unavailable

16

HOSE This part replaces 09343-05021.

09352-50005-00B

$13.93

17

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
