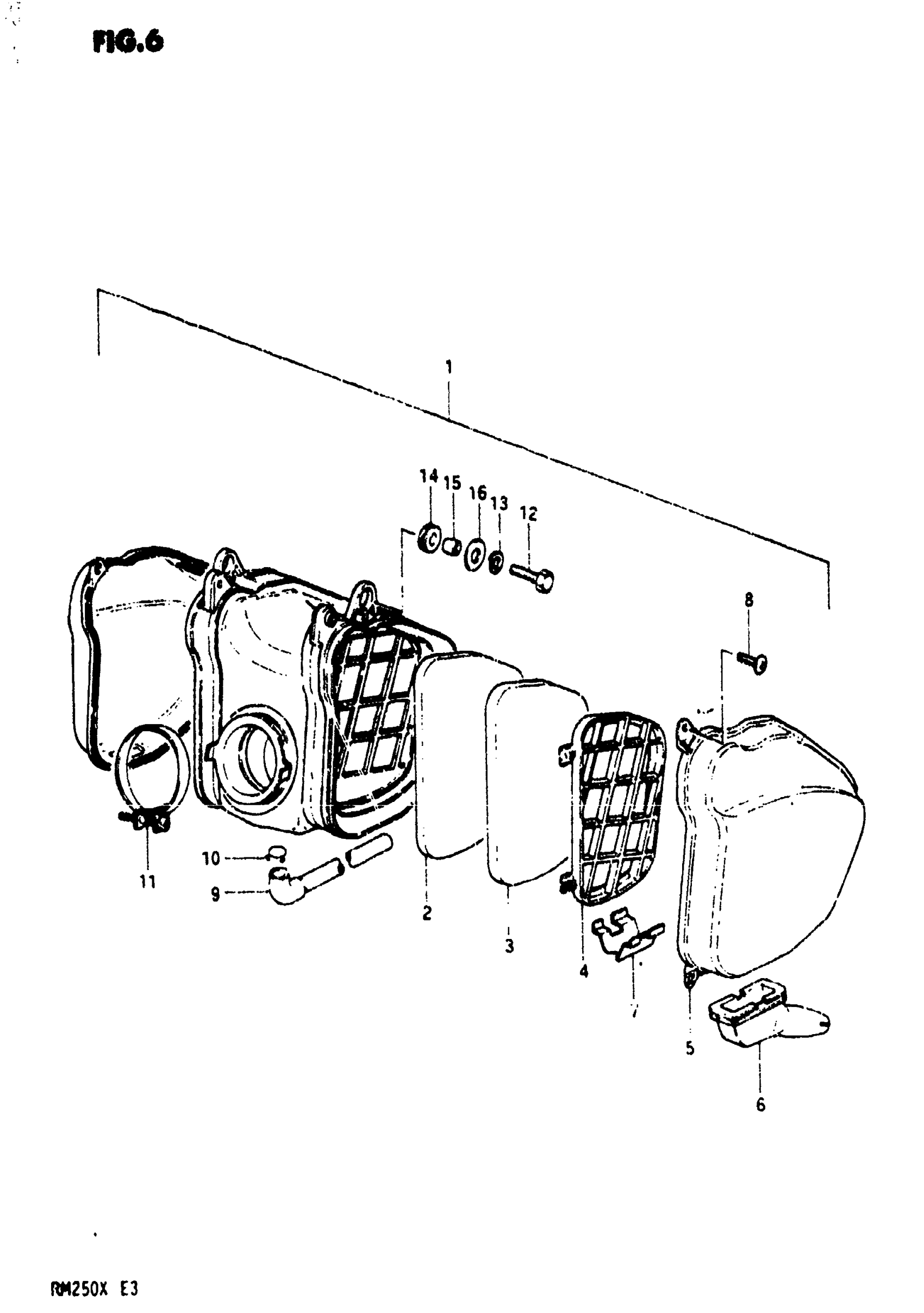

Suzuki RM250 (1981) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11 This part replaces 13700-14200.

13700-14210

Unavailable

2

FILTER

13781-14200

Unavailable

3

FILTER, 2ND This part replaces 13786-14200.

13786-14210

Unavailable

4

HOLDER, RH This part replaces 13791-14200.

13791-14210

Unavailable

4

HOLDER, LH This part replaces 13792-14200.

13792-14210

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 13740-14200.

13700-14840

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 13750-14200.

13700-14850

Unavailable

6

TUBE, DRAIN This part replaces 13860-14200.

13871-14210

Unavailable

7

STOPPER, TUBE This part replaces 13979-14100.

13877-14110

Unavailable

8

SCREW This part replaces 02142-05128.

02142-05127

$1.97

9

TUBE,DRAIN This part replaces 13870-00120.

13870-21459

$23.68

10

CLIP

09401-14301

$2.35

11

CLAMP

09402-70206

Unavailable

12

BOLT This part replaces 01107-06208.

01500-06207

$2.28

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89
