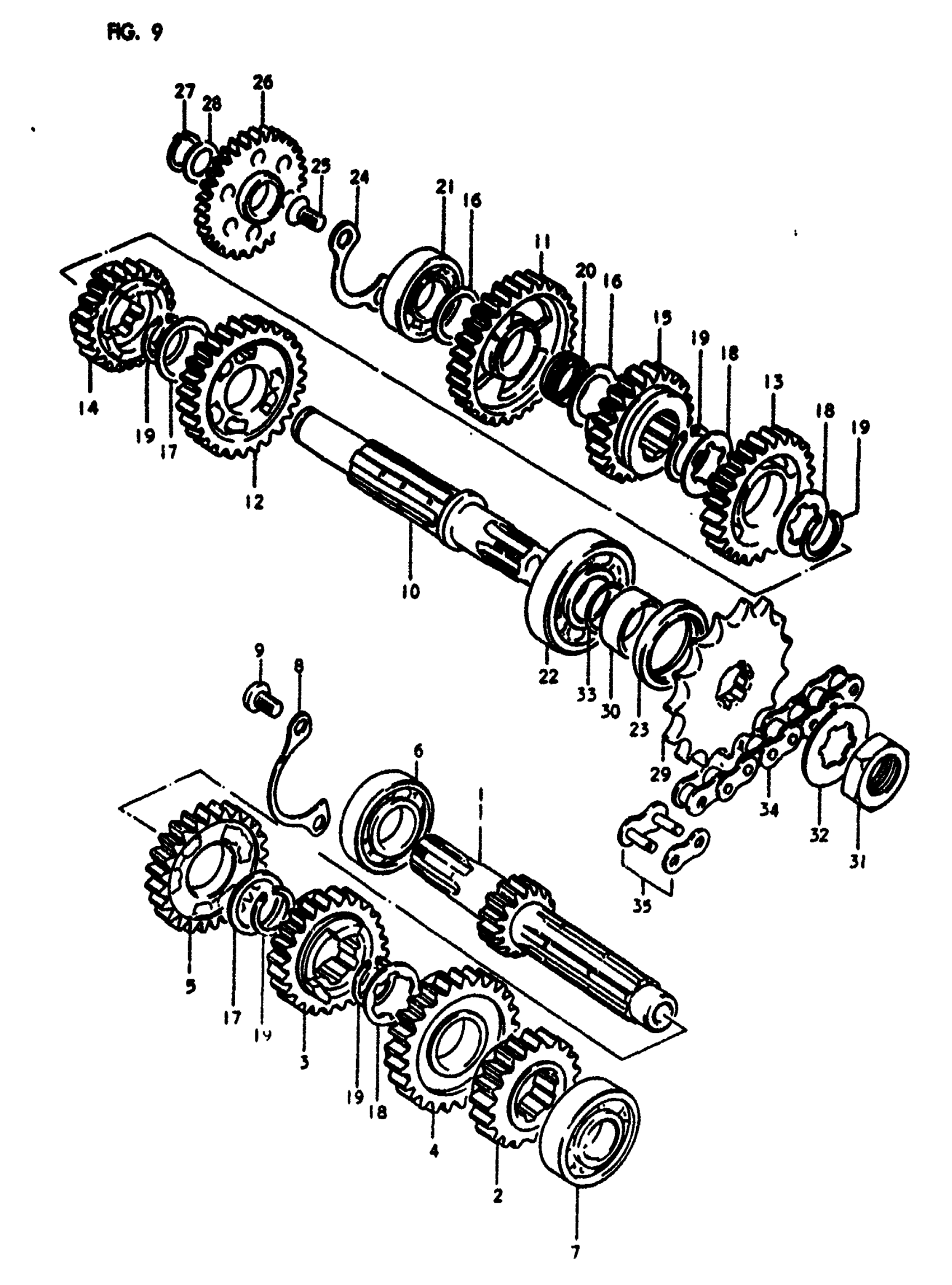

Suzuki RM250 (1980) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13) This part replaces 24121-40300.

24121-40301

Unavailable

2

GEAR, 2ND DRIVE (NT:16) This part replaces 24221-41101.

24221-41102

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 24231-41102.

24231-41104

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 24241-41100.

24241-14301

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 24251-41101.

24251-14201

Unavailable

6

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$23.28

7

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

8

HOLDER, BEARING

24741-40300

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

NO DESCRIPTION AVAILABLE This part replaces 24131-41100.

24131-41101

Unavailable

11

GEAR, 1ST DRIVEN (NT:27)

24311-41102

Unavailable

12

GEAR, 2ND DRIVEN (NT:28)

24320-41101

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 24331-41102.

24331-41103

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 24341-41102.

24341-41103

Unavailable

15

GEAR, 5TH DRIVEN (NT:21)

24351-41103

Unavailable

16

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

$3.07

17

WASHER

09181-22002

Unavailable

18

WASHER

09167-22011

$3.23

19

CIRCLIP

09380-22006

$3.10

20

BEARING, 1ST DRIVEN GEAR

09263-17004

$12.03

21

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

22

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

23

OIL SEAL

09283-32003

$7.31

24

HOLDER, BEARING

24751-40300

Unavailable

25

SCREW This part replaces 02122-06128.

02122-06127

$1.84

26

GEAR, KICK IDLE (NT:26) This part replaces 26260-41100.

26260-13A10

Unavailable

27

CIRCLIP

09380-17001

$1.98

28

WASHER

08211-17241

$2.54

29

SPROCKET, ENGINE (NT:14) This part replaces 27511-41120.

27511-14210

Unavailable

29

SPROCKET, ENGINE (NT:12) | OPT

27511-41100

Unavailable

29

SPROCKET, ENGINE (NT:13) | OPT

27511-41110

Unavailable

30

SPACER

09180-22007

Unavailable

31

NUT

09140-22006

Unavailable

32

LOCK WASHER

09167-22005

$2.11

33

O RING

09280-22003

$1.72

34

CHAIN,DRIVE ASS | Includes Item(s) 35 This part replaces 27600-41110.

27600-46K00-116

$167.95

35

JOINT (DID) This part replaces 27620-40000.

27620-14252

Unavailable
