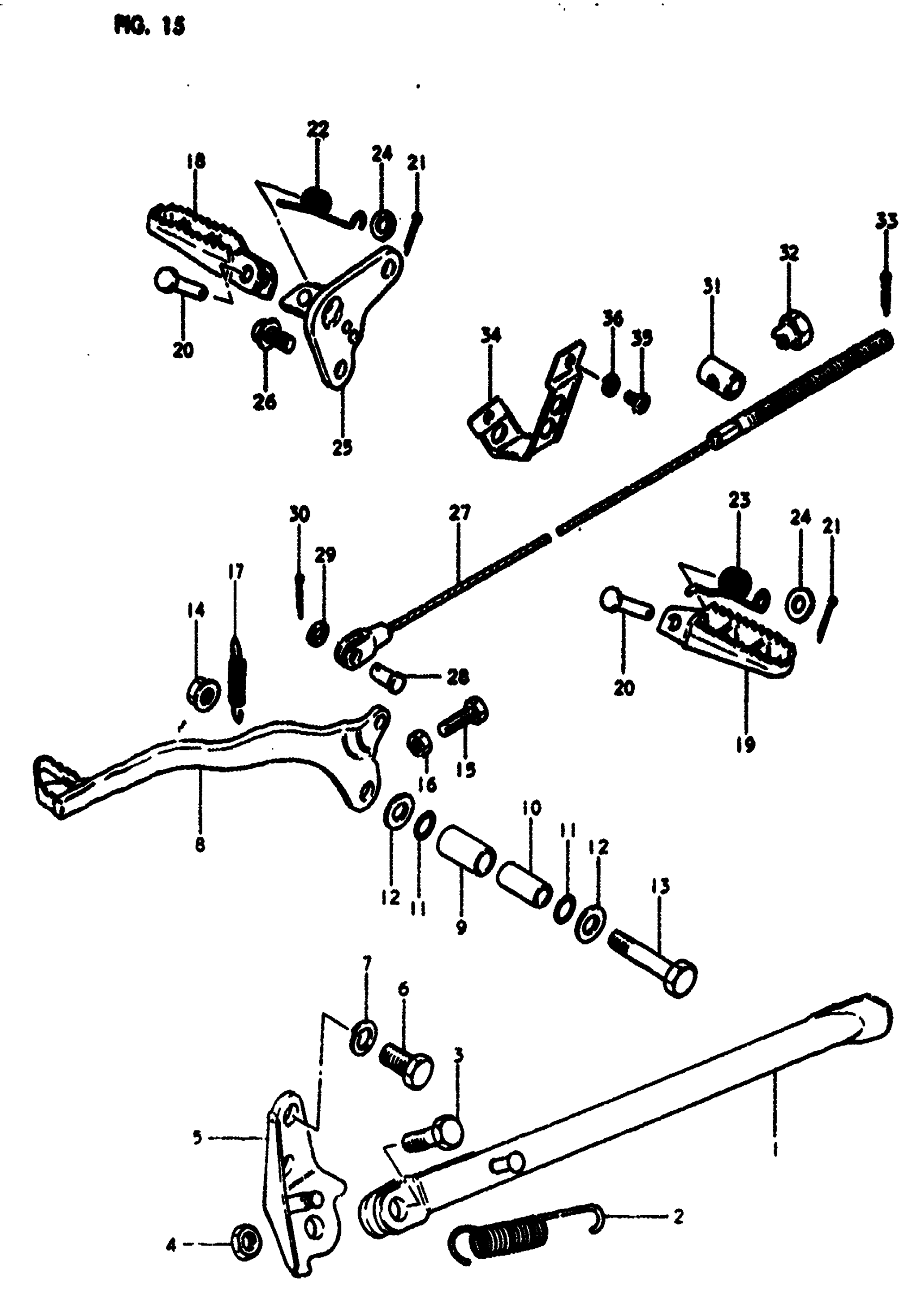

Suzuki RM250 (1980) STAND - FOOTREST Diagram

STAND, PROP

42310-40400

Unavailable

SPRING

09443-17007

$3.91

BOLT (10X30)

09100-10067

$2.61

NUT This part replaces 08310-22106.

08310-0010A

$1.84

BRACKET, PROP STAND

42330-40400

Unavailable

BOLT

09100-10118

Unavailable

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

PEDAL, BRAKE

43110-40401

Unavailable

BUSHING

09319-14003

Unavailable

SPACER

09180-10055

Unavailable

O RING

09280-14007

$1.65

THRUST WASHER

08211-10221

$2.28

BOLT, RH This part replaces 09100-10122.

09100-10021

Unavailable

NUT This part replaces 08319-31106.

08319-31107

$2.73

BOLT, ADJUSTER (6x23)

09100-06009

$1.91

.NUT This part replaces 08310-11068.

08310-00067

$2.13

SPRING This part replaces 09443-11006.

09443-11006-XC0

Unavailable

FOOTREST, FRONT RH (BLACK) This part replaces 43551-40400.

43551-37202-019

Unavailable

FOOTREST, FRONT LH (BLACK) This part replaces 43561-40400.

43561-40401-019

Unavailable

PIN This part replaces 09200-08035.

09200-08064

$6.13

PIN This part replaces 04111-30208.

04111-3020A

$1.50

SPRING This part replaces 09448-14014.

09448-14014-XC0

Unavailable

SPRING

09448-14015

Unavailable

WASHER This part replaces 08322-21068.

08322-01067

$2.13

HOLDER, FOOTREST RH

43510-40401

Unavailable

BOLT

09103-10100

$5.57

CABLE ASSY, REAR BRAKE

58510-40400

Unavailable

PIN

09200-05001

$1.65

WASHER This part replaces 08322-21068.

08322-01067

$2.13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

PIN, ADJUSTER

09209-13004

Unavailable

.NUT This part replaces 09150-06001.

09150-06010

$3.10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

GUIDE, BRAKE

58622-40400

Unavailable

SCREW This part replaces 02112-05108.

02112-05107

$1.49

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
